Overview

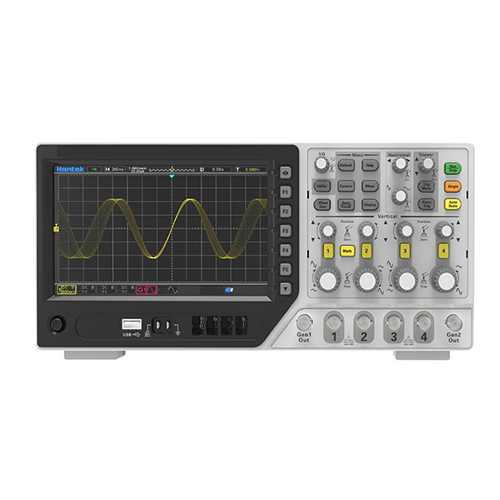

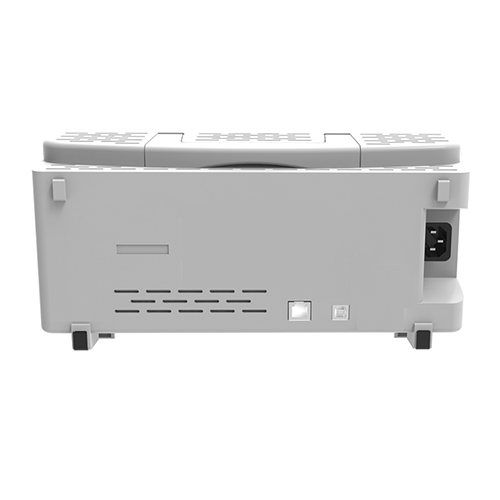

Emissions And Stack digital storage channel logic analyser has a 256-grade colour and colour temperature display. Standard is equipped with up to 16 kinds of trigger functions 5 kinds of serial decoding functions. It supplies 200 MHz, 100 MHz and 80 MHz bandwidth, its memory depth is up to 64 M,16 channels logic analyser plugs and use, all standard equipped with 2 channels waveform generator, standard equipped with touch screen. it is a useful commissioning instrument for various fields such as communication, aerospace, defence, embedded systems, computers, research, and education.
Features
- 6-in-1 tool with high-speed waveform capture: 60000 or 400,000 wfms/s
- Segmented acquisition: up to 80,000 sections
- 256 grade colour display
- Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers
- Supply 5 serial decoding option
- 1 GSa/s real-time sample rate of the analogy channels
- 64 Mpts standard memory depth
- 2-channel signal source,13 kinds of waveforms inside
- 4 sets of arbitrary waveforms
- 200 M sample rate, 8 Kpts waveform length
- 1 GSa/s real-time sample rate of the digital channels
- 200 MHz, 100 MHz, and 80 MHz analogy channel bandwidth
- Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic rang
- 7 in (17.78 cm) WVGA capacitive touch screen, (800 x 480) TFT
- with ultra-wide screen
- vivid picture
- low power consumption
- Auto measurement of 42 kinds of waveform parameters
- Bode diagram function
- Multiple waveform math operation functions
- Event search function
- Standard interfaces: USB Device, USB Host, LAN
- Optional interfaces: HDMI, UART
- Conform to LXI CORE 2011 DEVICE class instrument standards
- enable quick, economic, and efficient creation and reconfiguration of test system
- Supports remote command control
Technical Specifications:
| Channel | 4 CH |
| Bandwidth | 80 MHz, 100 MHz, 200 MHz, |
| Sampling | 1 GS / s |
| Resolution | 50 uV 10 V |
| Memory Depth | 64 M |
| Touch Screen | Yes |
| Waveform Capture Rate | 60,000 or 400,000 |
| Oscilloscope Function | |
| Real-Time Sample Rate | 1 GSa/s (single channel) 500 MSa/s (two channels) |
| 250 MSa/s (three or four channels); | |
| Note: digital channel 12,34 open at the same time, it is considered as one channel | |
| Peak Detection | Analog channel 4 ns |
| Note: digital channels don’t support | |
| High Resolution | Up to 12 bits |
| Note: digital channels don’t support | |
| Minimum Test Pulse Width | 8 ns |
| Memory Depth | Single channel 64 M |
| Two channels 32 M | |
| Three, four channels 16 M | |
| Input Coupling | DC, AC or GND |
| Note: digital channels don’t support | |
| Input Impedance, DC Coupling | Analog channel |
| 25 pF ± 3 pF, 1 MΩ ± 2 % | |
| Digital channel | |
| (300 KΩ ± 2 %), (8 pF ± 3 pF) | |
| Supported Probe Attenuation Factor | Analog channel 1 X,10 X,100 X,1000 X |
| Voltage Classes | 300 V CAT II |
| Maximum Input Voltage | Analog channel 300 V RMS (10 X) |
| Digital channel -25 V to 25 V | |
| Waveform Interpolation | (sin x)/x |
| Maximum Record Length | Single channel maximum 64 M |
| Two channels maximum 32 M | |
| Three or four channels maximum 16 M | |
| Horizontal Scale Range | 2ns/div to 100s/div 1, 2, 5 step by step |
| Time Base Mode | Y-T, X-Y, Roll |
| X-Y Number | Channel 1,2 1 XY channel, channel 3 4 1 XY channel |
| Zero Offset | ± 0.5 div × minimum time base gear |
| Sample Rate AndDelay Time Accuracy | ± 25 ppm |
| Bandwidth (-3 Db) | 6084, 6104, 6204 |
| 80 MHz, 100 MHz, 200 MHz | |
| Vertical Resolution | Analog channel 8 bit |
| Digital channel 1 bit | |
| Vertical Scale Range | input BNC position is 500 μV/div to 10 V/div |
| Position Range | 500 μV/div to 120 mV/div, ± 1 V |
| 122 mV/div to 1.2 V/div, ± 10 V | |
| 1.22V/div to 10V/div, ± 50 V | |
| Optional Analog Bandwidth Limitation | Typical 20 MHz |
| Bass Response (-3 dB) | In BNC position is ≤ 10 Hz |
| Vertical Gain Accuracy | In “normal” or “average” acquisition mode, the accuracy of 10 V/div to 10 mV/div is ± 3 % |
| In “normal” or “average” acquisition mode, the accuracy of 5 mV/div to 500 uV/div is ± 4 % | |
| DC Offset Accuracy | ± 0.1 div ± 2 mV ± 1 % offset value |
| The Isolation of Channels | DC maximum bandwidth: > 40 dB |
| Output Voltage, Typical | about 2 Vpp input ≥ 1 MΩ load |
| Frequency, Typical | 1 kHz |
| Power Supply | 100 V to 120 V AC RMS (± 10 %), 45 Hz to 440 Hz, CAT Ⅱ |
| 120 V to 240 V AC RMS (± 10 %), 45 Hz to 66 Hz, CAT Ⅱ | |
| Power Consumption | < 30 W |
| Fuse | T, 3.15 A, 250 V |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -40 °F to 159.8 °F (-40 °C to +71 °C) |
| Humidity | ≤ + 104 ℉ (≤ + 40 °C): ≤ 90 % relative humidity |
| 106 ℉ to 122 ℉ (+ 41 °C to 50 °C): ≤ 60 % relative humidity | |
| Cooling Method | convection |
| Size | 12.51 x 5.51 x 5.9 in (318 x 140 x 150 mm) |
| Weight | 6.3 lb (2.9 kg) |
