Overview

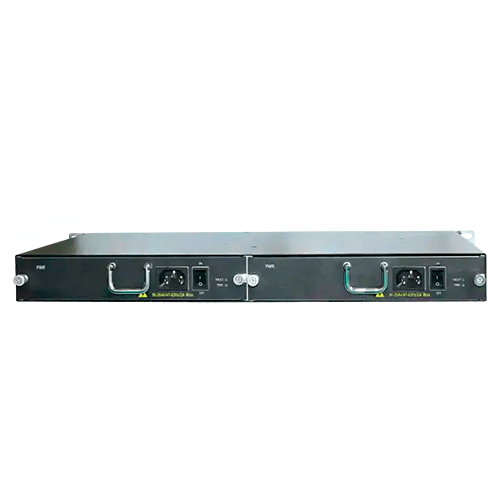

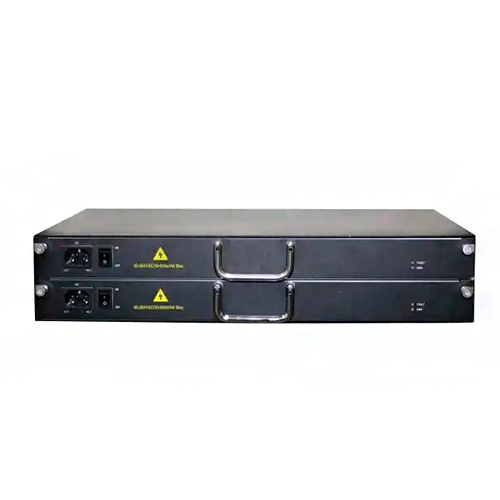

Emissions And Stack DWDM fiber optical amplifier is a single-stage optical amplifier card which can be inserted into JTN 1800 chassis.it can extend the transmission distance of signals. Moreover, WDM transmission can be achieved by using DWDM multiplexer or de-multiplexer, which is especially suitable for long-distance backbone network, metro network and access network. It is mainly used for optical networks. It supports multi kinds of service cards, such as Opical Amplifier (OA or SOA), Optical transponder (OTU), Optical Line Protection (OLP), Optical Multiplexer (OMU), Dispersion Compensate Module (DCM), etc. All service cards support hot swap. JTN 1800 supports 1+1 dual power backup (dual AC dual DC or AC or DC), 1 to 1 SC board card backup.
Features
- Adjustable gain
- High and flat gain, low noise
- ACC, APC and AGC are optional
- Support amplification through two stages
- OADM or DCM modules can be accessed in the middle
- Compact structure and modular design which supports hot plug
- Parameters can be set and viewed in the graphical interface
Technical Specification
| Use | DWDM OTN network |
| Wavelength | C band |
| Output Power | 23 dBm customized |
| Gain | 0 dB to 25 dB customized |
| Input Power | -14 dBm to 4 dBm |
| Connector Type | LCUPC |
| Noise Figure | <5.5 dB |
| Polarization Dependent Gain | <0.5 dB |
| Polarization Mode Dispersion | <0.5 Ps |
| Input or Output Isolation | >30 |
| Input or Output Return Loss | >40 |
