Overview

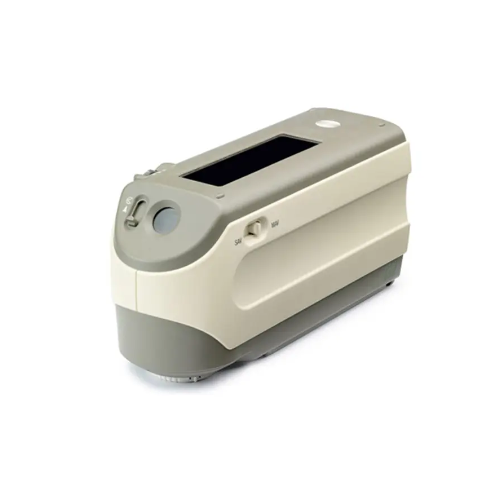

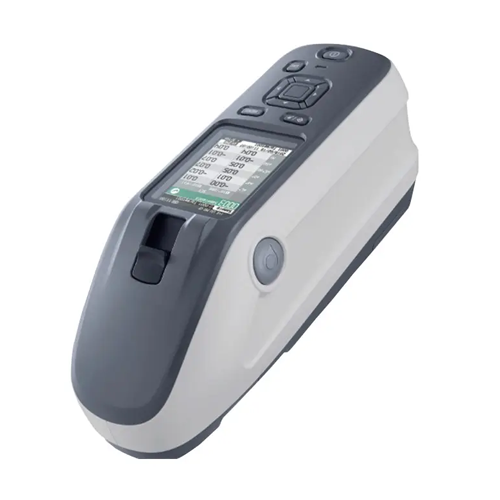

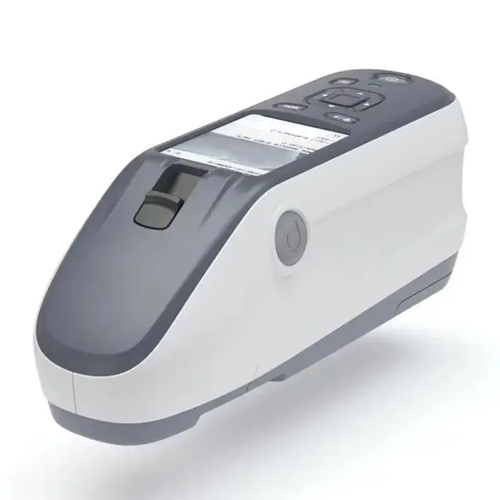

Emissions and Stack high precision colorimeter – silicon photodiode array sensor is suitable for plastics, coatings, electrical appliances, chemical products, cosmetics, printing, building materials, fibers and other fields.
Technical Specifications
| Illumination or Light Receiving System | d/8 (diffuse illumination, receiving in 8 ° direction) SCI (including specular reflection) or SCE (excluding specular reflection) |
| Sensor | Silicon photodiode array (40 groups in 2 columns) |
| Spectroscopic Method | Planar reflex grating |
| Measurement Wavelength Range | 360 nm to 740 nm |
| Measuring Wavelength Interval | 10 nm |
| Half-Wave Width | about 10 nm |
| Reflectance Measurement Range | 0 % to 175 %;
Resolution: 0.01 % |
| Lighting Source | Pulse xenon lamp × 2, Pulse xenon lamp × 3 |
| Measure Time | 1.5 s (2 s during fluorescence measurement) |
| Measurement Interval | 3 s (4 s during fluorescence measurement) |
| Measurement/Illumination Aperture | MAV: Φ 0.31 in (8 mm), Φ 0.43 in (1.1 cm)
SAV: Φ 0.11 in (3 mm), Φ 0.23 in (6 mm) |
| Repeatability | After white calibration, measure white calibration plate 30 times at 10 s intervals |
| Spectral Reflectance | 0.1% of standard deviation (360 nm to 380 nm: within 0.2% of standard deviation) |
| Chromaticity Value | within standard deviation ΔE x ab 0.04 |
| Difference Between Devices | Within ΔE x ab 0.2 (SCI or MAV) (at 73.4 °F (23 °C), the average value of BCRA Series II 12 color swatches measured by the host) |
| Language Mode | English, Japanese, German, French, Spanish, Italian |
| Standard Observer | 2° viewing angle, 10° viewing angle |
| Observe The Light Source | A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (2 light sources can be selected for display at the same time) |
| Display Content | Spectral data or graph, chromaticity value, color difference value or graph, pass or fail, relative gloss |
| Color Space / Chroma Metrics
|
L x a x b x, L x C x h, CMC (1:1), CMC (2:1), CIE94, Hunter Lab, Yxy, Munsell, XYZ, MI, WI (ASTM E313 or CIE), YI (ASTM E313/ASTM D1925), ISO Brightness (ISO2470), Density status A or T, CIE00, WI or Tint |
| Standard Accessories Remove Models | White Calibration Plate Ø 0.31 in (8 mm) target mask
USB-serial adapter cable Power Adapter Ø 0.11 in (3 mm) target mask |
| Optional Accessories | Zero calibration box, outer box, dustproof kit, dust cover. Color management software, printer cable, RS-232C cable |
| Ram | 1,700 sets (SCI or SCE is a set of data) |
| Power Supply | AA battery (× 4), dedicated AC adapter |
| Relative Humidity | below 80 % 95 ℉ (35 °C), no condensation |
| Integrating Sphere Size | Φ 2.04 in (5.2 cm) |
| Operating Temperature | 41 ℉ to 104 ℉ (5 °C to 40 °C) |
| Storage Temperature | 32 ℉ to 113 ℉ (0 °C to 45 °C) |
| Dimensions | 7.6 in x 2.7 in x 3.7 in (19.3 cm x 6.9 cm x 9.6 cm) |
| Weight | 23.3 oz (670 g) (with calibration plate, without battery) |
