Overview

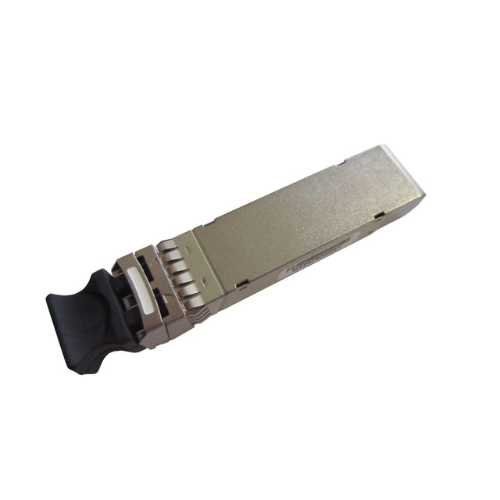

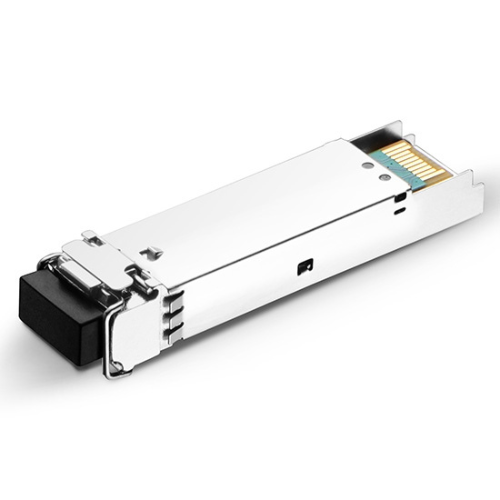

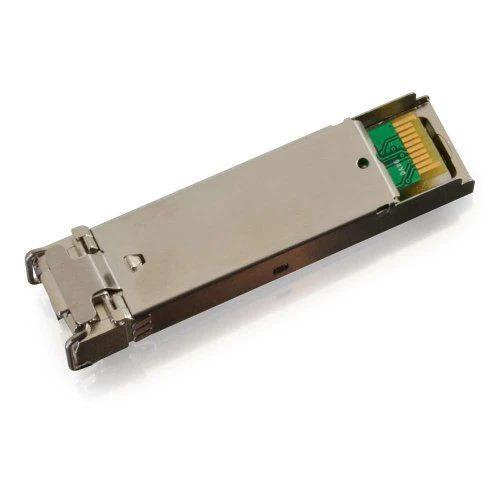

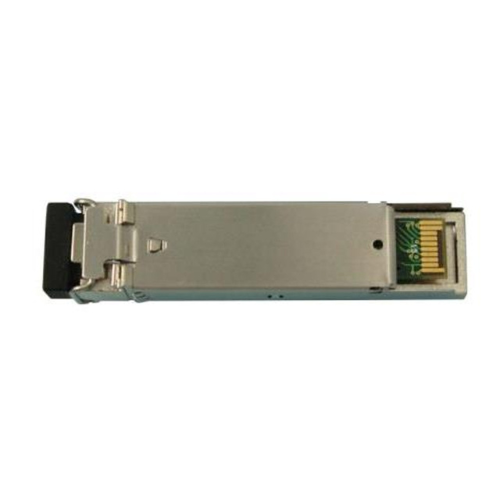

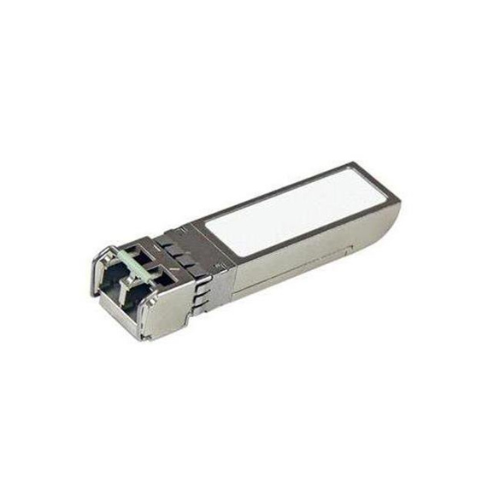

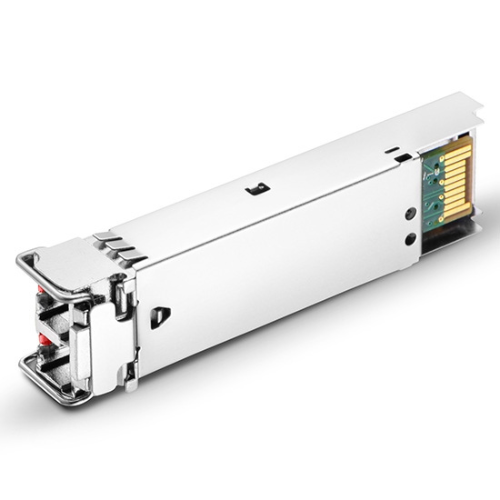

High-Speed 10Gbps CWDM SFP+ Transceiver is a reliable and high-performance module designed for network communications. It is specifically compatible with network equipment, ensuring seamless integration and optimal performance within Huawei-based networks.
Features
- Up to 11.1Gbps Data Links
- Up to 12.43m (20km) transmission on SMF
- Power dissipation <1.5W
- Uncooled CWDM DFB Laser and PIN receiver
- Metal enclosure, for lower EMI
- 2-wire interface with integrated digital diagnostic monitoring
- Hot-pluggable SFP+ footprint
- Specifications compliant with SFF 8472
- Compliant with SFP+ MSA with LC connector
- Single 3.3V power supply
- Case operating temperature range: 32°F to 158°F (0°C to 70°C)
Technical Specifications
| Type | Optical Module |
| Condition | New |
| Compatible | Huawei, Cisco, Juniper, HP or Others |
| Support Network | Ethernet |
| Port Type | Dual LC |
| Extra Function | DDM |
| Information Content | Data |
| Wavelength | CWDM, or Customized |
| Certification | CE, ISO, RoHS |
| Transmission Distance | 12.43m, 24.85m, 49.71m (20km, 40km, 80km) |
| Specification | 10G CWDM SFP+ Transceiver |
| Data Rate | 10g |
