Overview
Emissions and Stack Professional Colorimeter widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.
Technical Specifications
| Model Items | EMSHCC-260A | EMSHCC-260B | EMSHCC-260C |
| Optical Geometry | Reflect: di:8°, de:8° (diffused | illumination, 8-degree | viewing angle) |
| Integrating Sphere Size | 48 mm | ||
| Light Source | Combined LED Light, UV Light | Combined LED Light | |
| Spectrophotometric Mode | Concave Grating | ||
| Sensor | 256 Image Element Double | Array CMOS Image | Sensor |
| Wavelength Range | 400 nm to 700 nm | ||
| Semi-band Width | 10 nm | ||
| Measured Reflectance Range | 10 nm | ||
| Measured Reflectance Range | 0 % to 200 % | ||
| Measuring Aperture | MAV ©8 mm / © 10 mm SAV ©4 mm / © 5 mm | Customized Aperture: 8 mm / 4 mm / 1 x 3 mm | Single Aperture: MAV © 8 mm / © 10 mm |
| Specular Component SCI&SCE | |||
| Color Space | CIE Lab. XYZ, Yxy. LCh. | CIE LUV. Hunter LAB | |
| Color Difference Formula | AE*ab. AE*uv. AE*94. AE(Hunter) | AE*cmc(2:1). AE*cmc(1:1), | AE*00v. |
| Other Colorimetric Index | WI(ASTM E313. CIE/ISO. YI(ASTM D1925 ASTM Metamerism Index MI. Strength Opacity. 8″ | AATCC. Hunter). 313). TI(ASTM E313. Staining Fastness, Color Glossiness | CIE/ISO). Fastness Color |
| Observer Angle | 2’/10″ | ||
| Illuminant | D65. A. C. D50. D55. D75 F1. F2 F3. F4. F5. F6. F7. F8. F9. F10. F11. F12 | D65. A.C. D50. D55. D75. F2. F7. F11 | D65,A,C D50 |
| Display Data | Spectrogram/Values Difference Values/Graph | Samples Chromaticity Values, PASS/FAIL Result Color | Color Offset |
| Measuring Time | 2.6 s | ||
| Repeatability | MAV/SCI: AE * <0.03 | MAV/SCI: AE * <0.05 | MAV/SCI: AE * <0.06 |
| Inter-instrument Error | MAV/SCI AE * <0.15 | MAV/SCI: AE * <0.2 | MAV/SCI: AE * <0.4 |
| Measurement Mode | Single Measurement | Average Measurement | |
| Locating Method | Camera View Finder Locating | ||
| Battery | Li-ion battery. 5000 | measurements within 8 hrs | |
| Dimension | L x W x H = 7.24 in x 3.03 in x 4.13 in (184 mm x 77 mm x 105 mm) | ||
| Weight | 1.32 lb(0.6 kg) | ||
| Illuminant Life Span | 5 years, more than 3 million | times measurements | |
| Display | 3.5 in TET color LCD.
Capacitive Touch Screen |
||

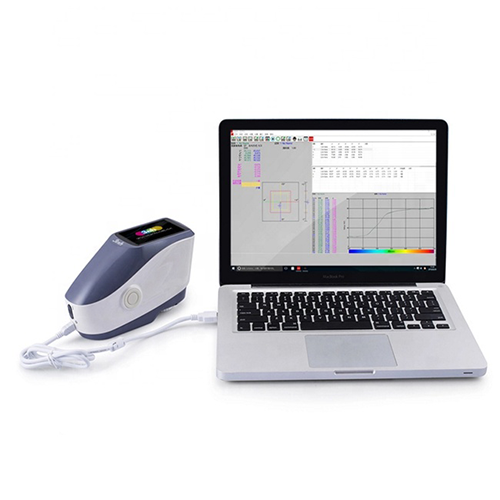

| Data Port | USB, Bluetooth 4.0 USB | ||
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs | ||
<
