Overview

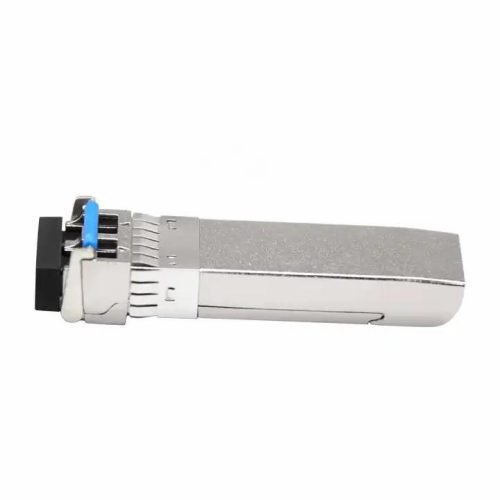

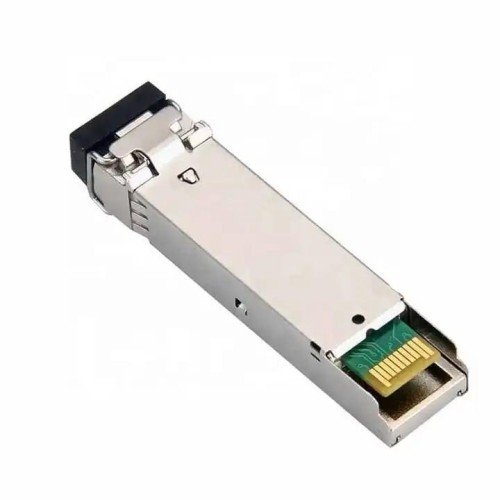

Emissions And Stack SFP+ DWDM LC DDM EML Transceiver Optical Module consists of two sections: The transmitter section incorporates a cold EML laser and the receiver section consists of a PIN photodiode integrated with a TIA. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
Features
• Compliant with SFF-8431, SFF-8432 and IEE802.3ae
• 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
• Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
• Cooled EML transmitter and PIN receiver
• link length up to 80km
• Low Power Dissipation: 1.5W Maximum
• Single 3.3V power supply
• Diagnostic performance monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical power
• RoHS compliant and lead-free
Technical Specifications
| Protocols | MSA Compliant |
| Use | Data Center |
| Wavelength | 1528.38 nm to 1563.86 nm |
| Brand Name | Emissions And Stack |
| Type | Fiber Optic Transceivers |
| Max Cable Distance | 49.7 mi (80 km) |
| Form Type | SFP+ |
| DOM Support | Yes |
| Interface | LC duplex |
