Features

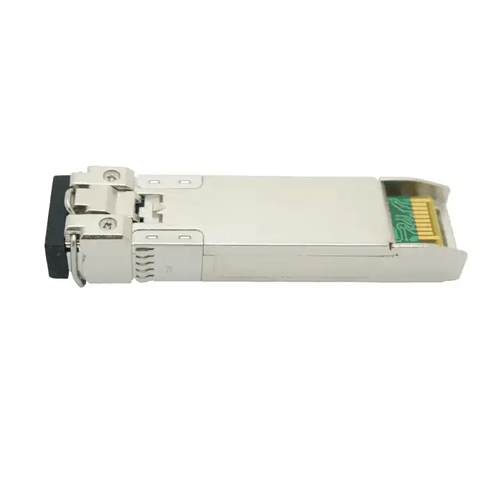

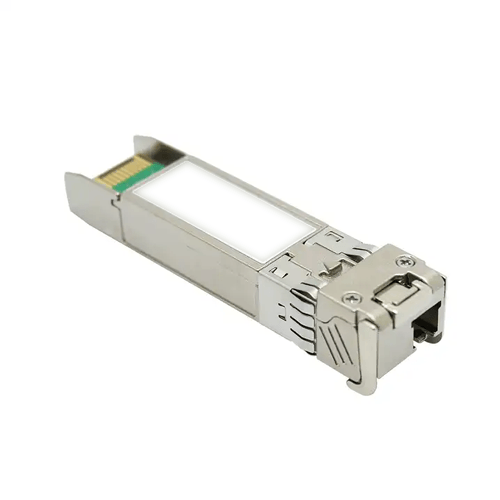

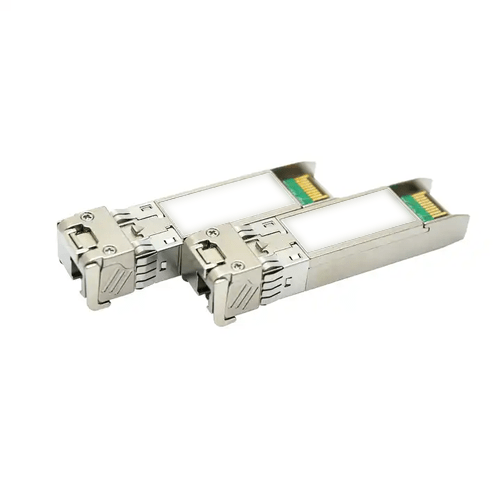

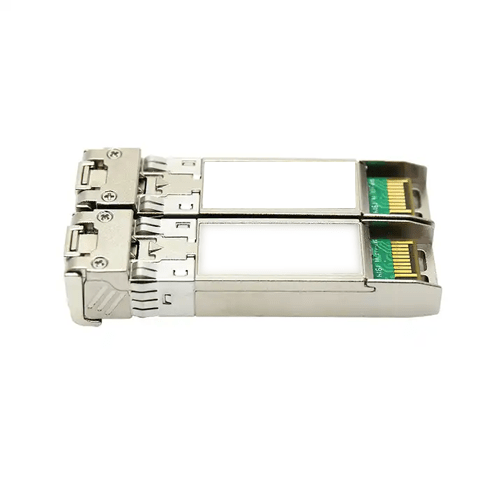

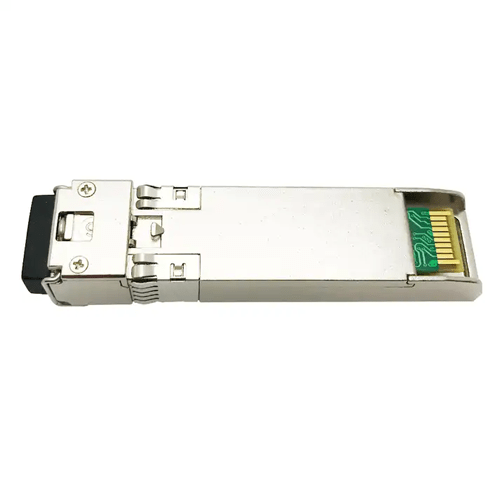

- Fiber Bi-Directional SFP+ Optical Transceiver
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- Up to 10.7 Gbps Data Links
- 1490 nm/1550 nm DFB LD Transmitter
- 1490 nm/1550 nm PIN Receiver
- Low power consumption
- Applicable for 49.7 mi (80 km) SMF connection
- All-metal housing for superior EMI performance
- Cost effective SFP+ solution, enables higher port densities
Technical Specification
| Network | 4G and 3G |
| Data Rate | 10 Gbps |
| Output Power | 2 dBm to 6 dBm |
| Sensitivity | ≤ -23 dBm |
| Wavelength | 4.89 ft to 5.09 ft (1.49 m to 1.55 m) |
