Overview

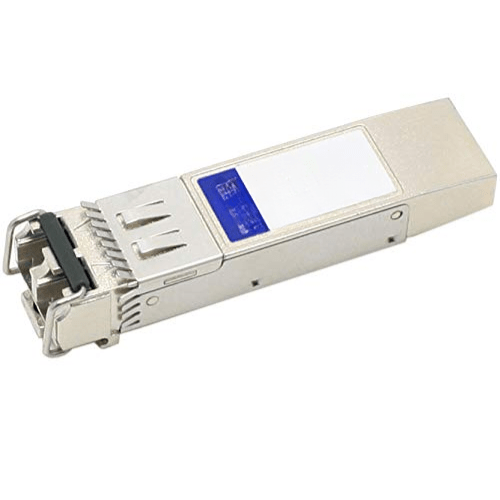

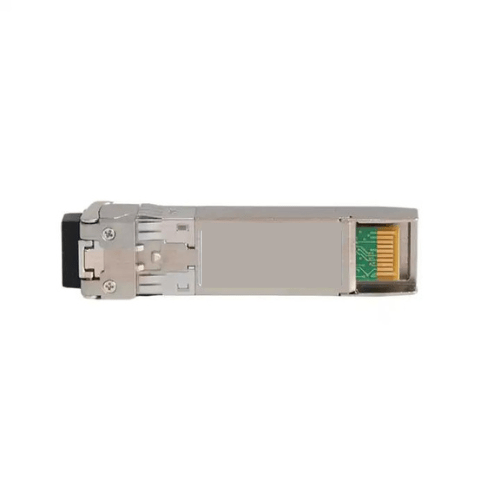

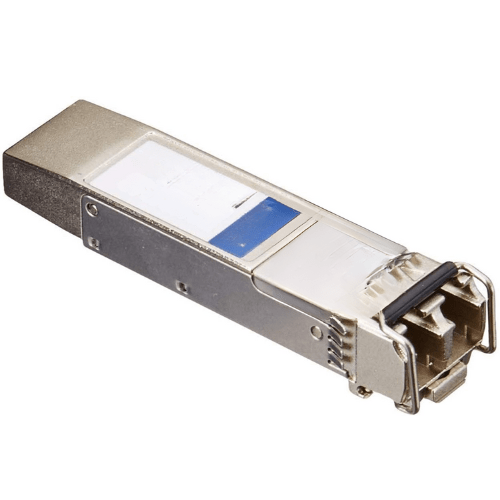

Emissions And Stack SFP optical transceivers is to be used on a series of switches, routers, servers, network interface card etc., package: SFP+, Data Rate:10 G, Wavelength: 1470 nm to 1610 nm, Reach 49.70 mi (80 km), TX:EML CWDM, RX: APD, TX Power: -1 dBm to 4dBm, RX Sensitivity: -23 dBm.
Features
- Hot-pluggable
- Low power dissipation
- Single +3.3 V power supply
- Up to 11. 1 Gbps Data Links
- Metal enclosure, for lower EMI
- CWDM EML transmitter and APD receiver
- 2-wire interface with integrated Digital Diagnostic monitoring
- Up to 80 km transmission distance over Single Mode Fiber (SMF)
- Without CDR or with CDR supported 9.95 Gb/s to 11.3Gb/s reference-free
Technical Specifications
| Data rate | 10 G |
| Wavelength | 1470 nm to 1610 nm |
| Reach | 12.4 mi, 24.8 mi, 49.7 mi (20 km, 40 km, 80 km) |
| Compliant | ROHS |
| Power supply voltage | 3.13 Vcc3 to 3.47 Vcc3 |
| Input differential impedance | 100 Rin |
