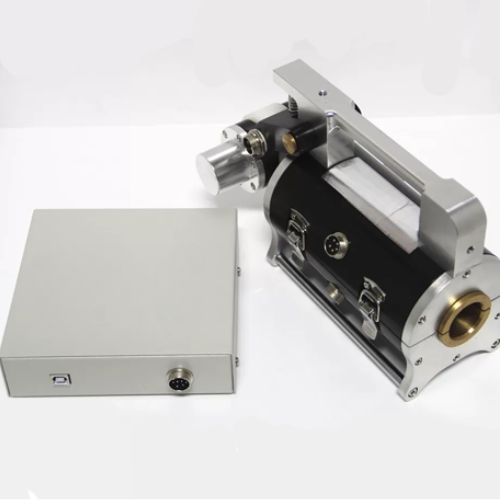

Overview
This Steel Wire Rope Flaw Detector has 0.06 in to 11.8 in of testing wire range, 0.3 m/s to 1.5 m/s of sensor relative speed and 5V battery supply.
Feature
- The device tests wire ropes for various defects such as breaking, wear, corrosion, deformation, loose strands, and more, all online
- Test results generate reports that follow industry standards, including data on broken wires and fault areas
- It connects to a computer via USB for real-time analysis and has an acousto-optic alarm.

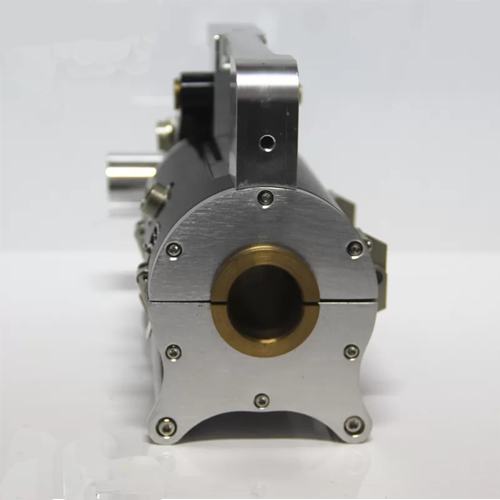

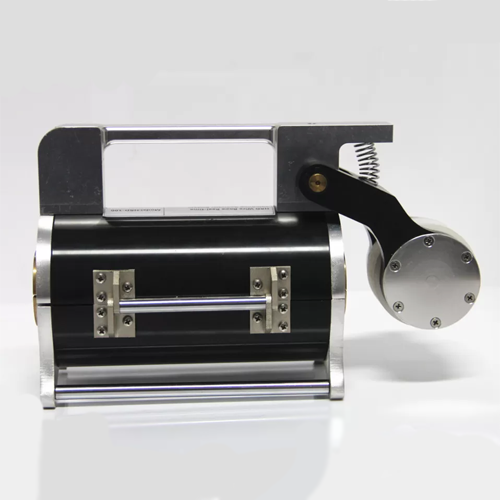

- The sensor’s circular design ensures the wire rope is thoroughly magnetized
- The sensor housing is made of aluminum, making it waterproof, dustproof, shockproof, and moisture resistant
- It operates reliably with high precision and can handle interference while maintaining data accuracy
- (The software works with Windows 98 / 2000 / XP / Vista / Windows7
- The device is certified by national metrology institutes and meets state measurement and production safety laws, including the USA ASTM1571 standard
Technical Specifications
| Whole series of testing of wire rope diameter range | Diameter 0.06 in to 11.8 in (1.5 mm to 300 mm) (need to configure different series specifications sensor). |
| Sensor and the wire rope relative speed | 0 m/s to 6 m/s best: 0.3 m/s to 1.5 m/s. |
| Guide sleeve and the gap sensor wire rope best | 0.08 in to 0.23 in (2 mm to 6 mm), allowing the gap: 0 in to 0.6 in (0 mm to 15 mm) |
| Qualitative | Qualitative |
