Overview

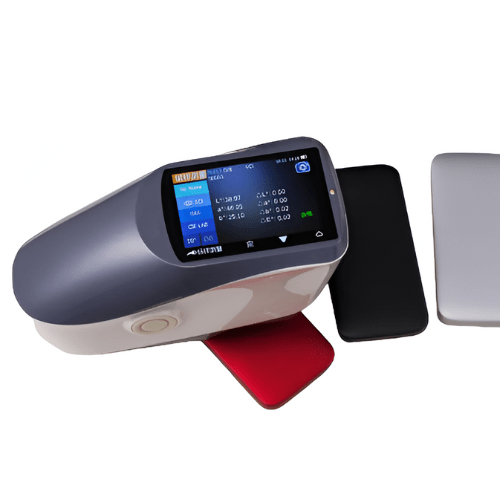

Emissions and Stack UV reflectance spectrophotometer CIE colorimeter adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands.0.3 in, 0.2 in or customized aperture is optional. Speical UV light makes Emissions and Stack UV reflectance spectrophotometer CIE colorimeter easy to measure sample with UV and high accuracy and extended function PC software let it be a good partner for colorist and color quality contral management.
Features
- Perfect combination of beautiful appearance
- Human body mechanics structural design
- Use long life and low power consumption combined LED light source

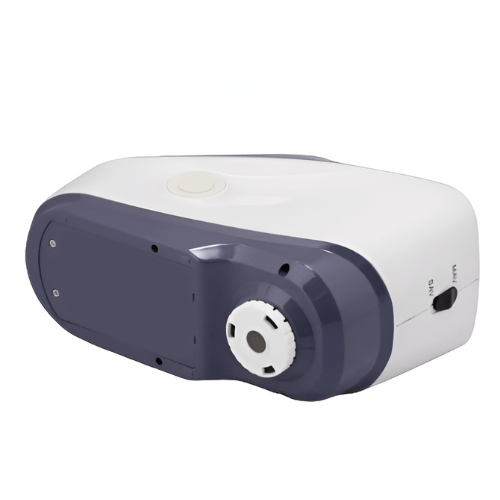

- Switchable 0.3 in, 0.2 in aperture, support both SCI and SCE at same time
- Measure sample spectra, accurate Lab data
- USB port, widely useful

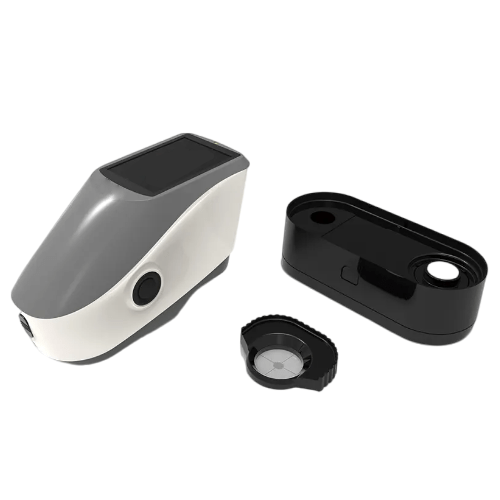

- Super stain-resistant and stable standard white calibration plate
- Large capacity storage space, over 20,000 measurement data
- Camera Locating Function, better position
- PC software has a powerful function extension
Technical Specifications
| Optical Geometry | Reflect di 8°, de 8°, diffused illumination, 8-degree viewing angle |
| Light Source | Combined LED Light, UV Light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400 nm to 700 nm |
| Wavelength Interval | 10 nm |
| Semiband Width | 10 nm |
| Measured Reflectance Range | 0% to 200% |
| Measuring Aperture | Dual Aperture 10 mm/8 mm & 5 mm/4 mm |
| Specular Component | SCI&SCE |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color Difference Formula | ΔE x ab, ΔE x uv, ΔE x 94, ΔE x cmc, 2 1 , ΔE x cmc, 1 1 , ΔE x 00 v, ΔE, Hunter |
| Other Colorimetric Index | WI, ASTM E 313, CIE/ISO, AATCC, Hunter , YI, ASTM D 1925, ASTM 313 ,TI, ASTM E 313, CIE/ISO , Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness |
| Observer Angle | 2°/10° |
| Illuminant | D 65, A, C, D 50, D 55, D 75, F 1, F 2, F 3, F 4, F 5, F 6, F 7, F 8, F 9, F 10, F 11, F 12 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 2.6 s |
| Repeatability | MAV/SCI ΔE ≤0.03 |
| Inter-instrument Error | MAV/SCI ΔE ≤0.15 |
| Measurement Mode | Single Measurement, Average Measurement |
| Locating Method | Camera View Finder Locating |
| Battery | Li-ion battery. 5000 measurements within 8 hrs |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5 in (88.9 mm) TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.0 |
| Integrating Sphere Size | 1.9 in (48 mm) |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Operating Environment | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃), 0% RH to 85% RH , no condensing , Altitude < 78740.2 in (2000 m) |
| Storage Environment | -4 ℉ to 122 ℉ (-20 ℃ to 50 ℃), 0% RH to 85% RH , no condensing |
| Dimension | L x W x H 7.24 in x 3.03 in x 4.13 in (184 mm x 77 mm x 105 mm) |
| Weight | 21.16 oz (600 g) |
