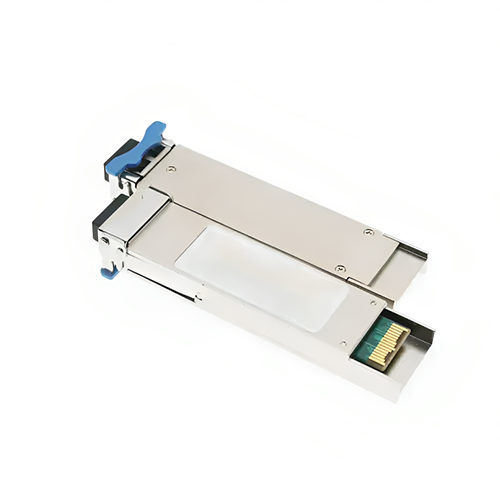

Emissions And Stack XFP CWDM DOM Transceivers Module

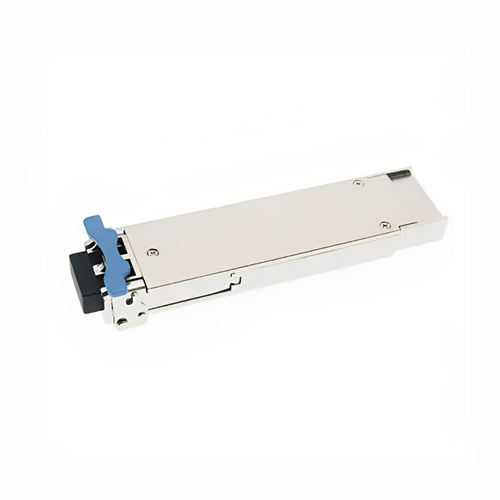

Emissions And Stack XFP CWDM DOM Transceivers Module - Image 2
Emissions And Stack XFP CWDM DOM Transceivers Module - Image 3

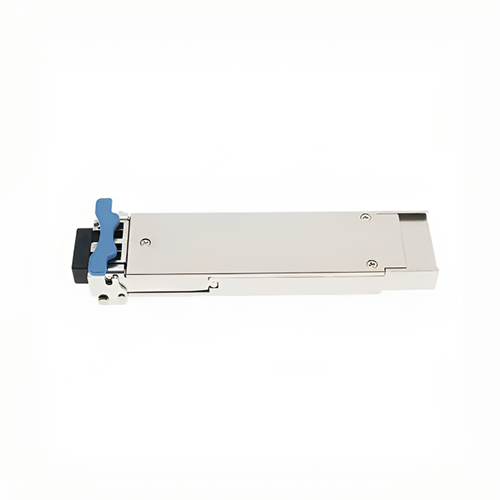

Emissions And Stack XFP CWDM DOM Transceivers Module - Image 4

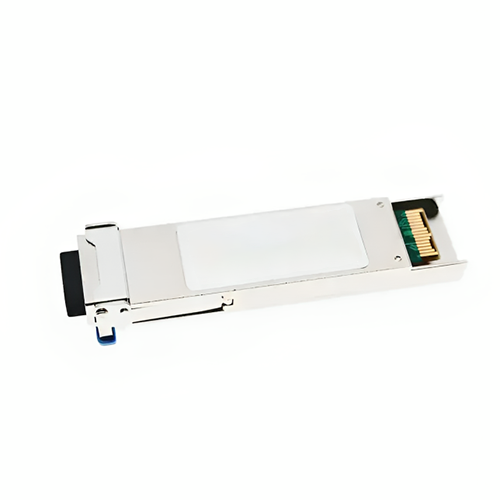

Emissions And Stack XFP CWDM DOM Transceivers Module - Image 5

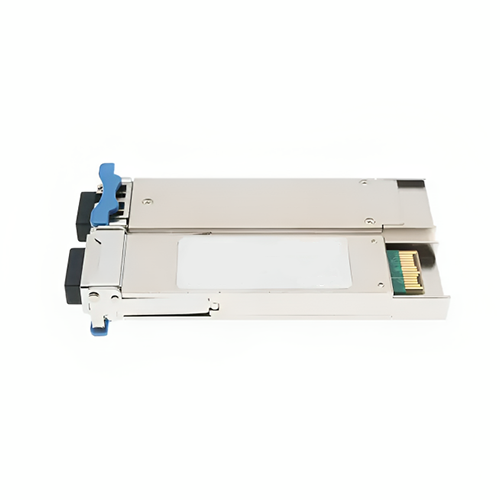

Emissions And Stack XFP CWDM DOM Transceivers Module - Image 6

Emissions And Stack XFP CWDM DOM Transceivers Module

This XFP CWDM DOM Transceivers Module has connector type of dual LC, data rate of 10 Gbps, wavelength of 1470 nm and power supply of 3.3 V.

SKU: EMSXCWDM-116 Category:

Features

  • Supports 10 GBE Application at the Data-Rate
  • Maximum link length of 24.85 mi (40 km) with SMF
  • 8-Wavelengths CWDM EML Transmitter from 1470 nm to 1610 nm
  • XFP MSA package with duplex LC connector
  • XFI High Speed Electrical Interface
  • 5 V, 3.3 V power supply
  • power dissipation <3.5 W
  • 2-wire interface for management and diagnostic monitor
  • Compatible with RoHS
  • Compatible with IEEE 802.3 ae 10 Gigabit Ethernet
  • Compatible with SONET OC-192 or SDH STM-64



Technical Specifications

Connector Type Dual LC
Fiber Type SMF
Data Rate 10 Gbps
Form Factor XFP
Wavelength 1470 nm to 1610 nm
Tx Power 0 db to 5.5 db
Rx Sensitivity ≤-16 db
Distance 24.85 mi (40 km)
