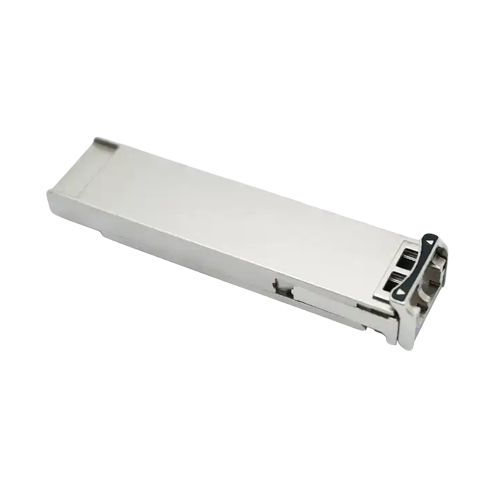

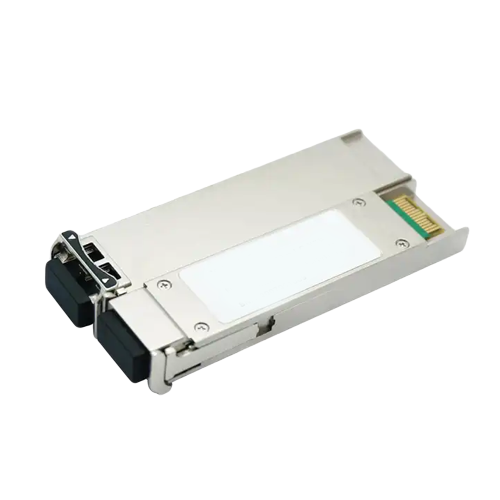

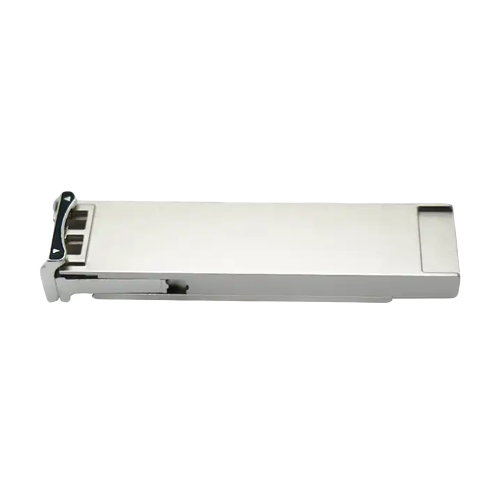

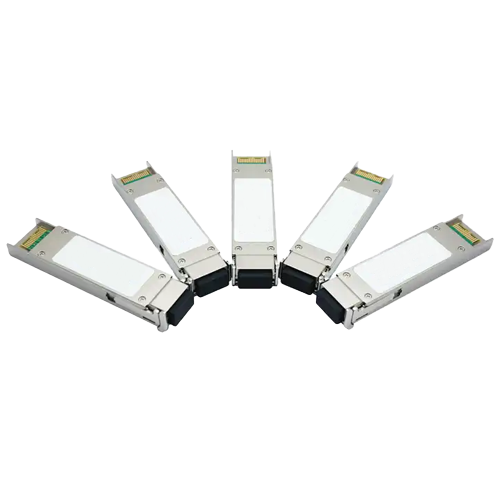

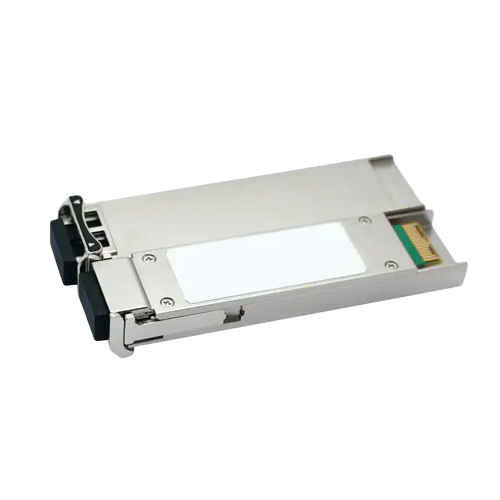

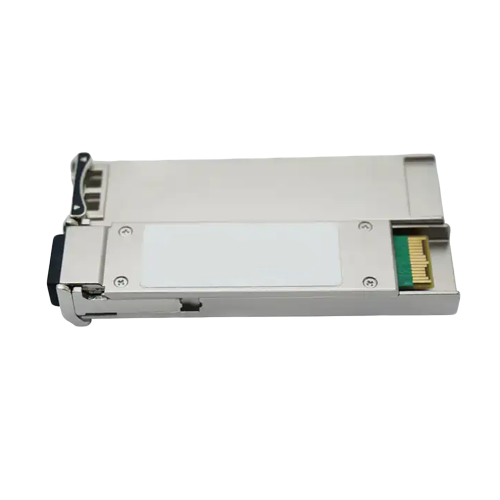

Emissions And Stack XFP Tunable LC Transceiver

Overview

Emissions And Stack XFP tunable LC transceiver is a module comprised of a transmitter with 850 nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range and offer optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 Gbe systems.

Features

• Supports 9.95 Gbps to 10.5 Gbps bit rates
• Maximum link length of 300m (50 ums, MMF, 2000 MHz)
• 850 nm VCSEL laser and PIN receiver
• Low power consumption <1.5 W
• +5 V, +3.3 V power supply
• XFP MSA package with duplex LC connector
• XFI electrical interface
• No reference clock required
• Compatible with RoHS
• Excellent EMI performance
• Built-in digital diagnostic functions
