Overview

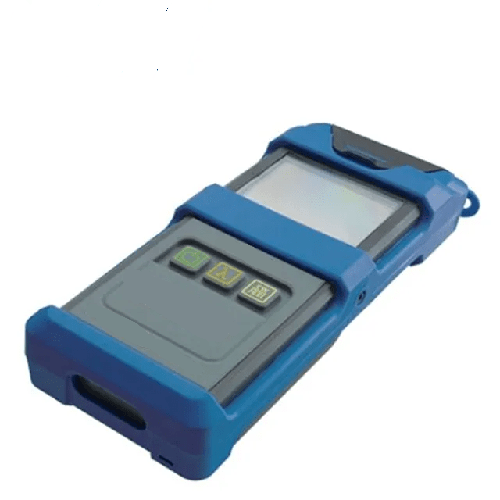

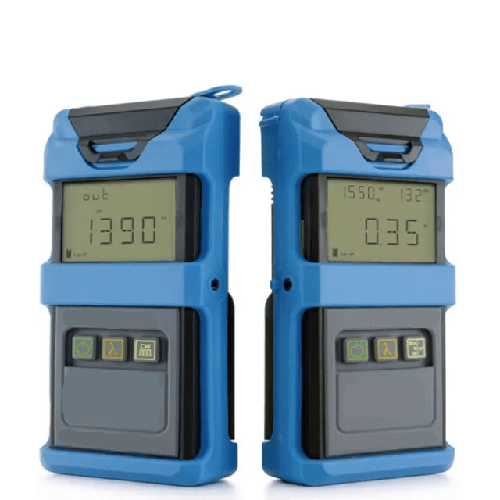

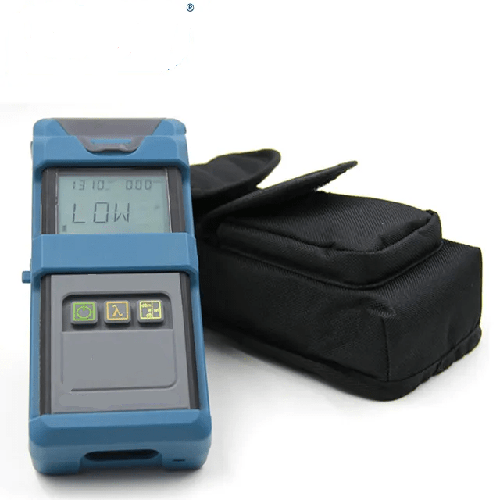

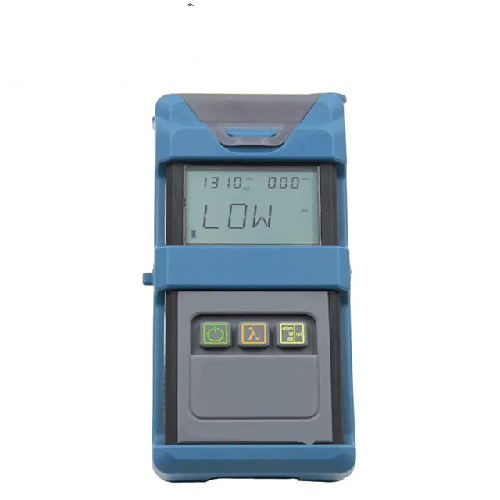

Emissions And Stack fiber optic fusion testers are for handheld installation, operation and maintenance of optical fiber network special design of a precise, durable, convenient portable test instrument. With clever appearance, they can choose to switch back light display, automatic shutdown function, super wide optical power test range, accurate testing accuracy and new users auto-calibration function and general interface design.
Features
- It measures voice, data, and video signals synchronously
- display on BPON or EPON or GPON
- Simultaneous measurement for all three fiber wavelengths
- Used in Burst mode measurement of 1310nm upstream
- Connect to PC software for threshold, data transfer, and calibration
- Optional Chinese or English display
- Offers up to 10 different threshold sets in total
- 10 minutes Auto-off function can be activated or deactivated

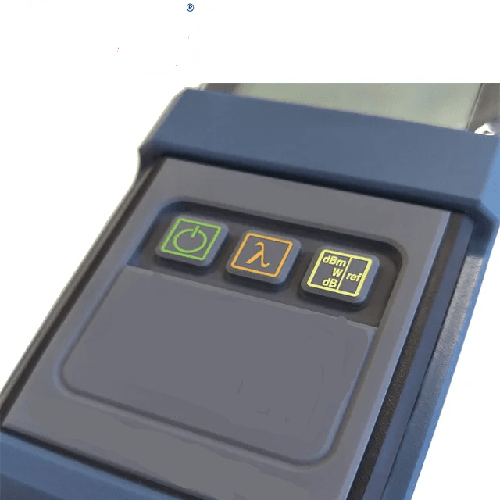

- Good key design, high sensitivity
- greatly reducing the volume and weight of the tester
- Different models correspond to different functions
Technical Specifications
| Wavelength | 800 nm to 1700 nm |
| Measurement Range | -50 dB to +26 dB |
| Uncertainty | ± 3 % |
| Calibrated Wavelength | 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm |
| Resolution | 0.01 dB |
| Battery Operating Time | 140 hrs with 1.5 V Battery (3 pcs) |
| Optical Connector | FC (interchangeable SC, ST) or as well as 0.09 in (2.5 mm) universal |
| Weight | 0.815 lb (370 g) |
