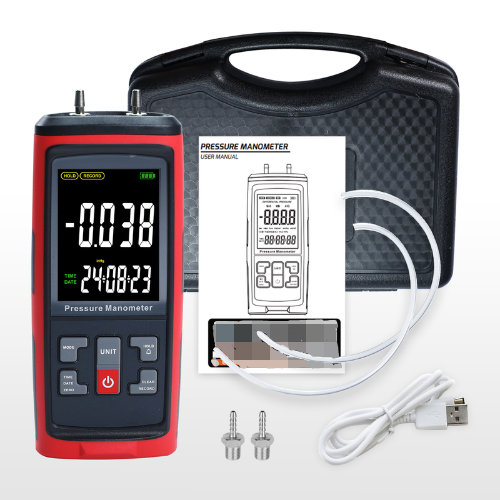

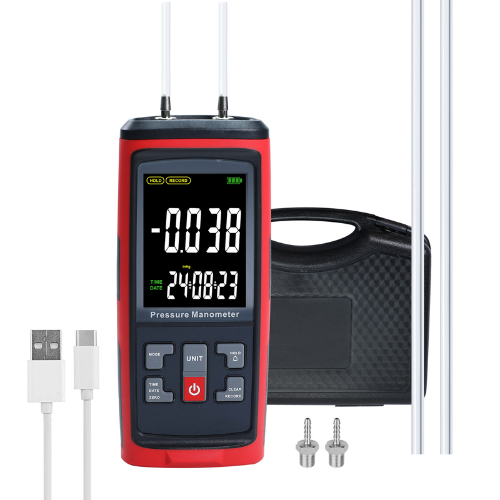

Name: High Accuracy Portable Digital Manometer - Emissions and Stack -
SKU: EMSDM-103

Features

13 selectable pressure units including bar, psi, kPa, mmHg, cmH₂O, Pa, and more
Differential pressure measurement with Max/Min/Avg modes
High accuracy: ±1FS with fine resolution across multiple ranges
Large LCD display with backlight for easy reading
Data functions: datalogging, data hold, time/date display, low battery indicator
PC software compatible for data transfer and device management
Rechargeable lithium battery (1000 mAh) with ~13 hours working time
USB charging via power adapter or computer, ~1.5h charging time
Automatic power off (manual or PC software configurable)
Protection features: overcharging and over-discharging safeguards

Technical Specifications

Type	Digital Handheld Manometer
Measurement Range	Up to 7.25190 psi (50 kPa)
Resolution	0.01 (varies by unit)
Accuracy	±1 FS
Pressure Units (13)	bar, mbar, kPa, kgf/cm², mmHg, cmH₂O, ozf/in², psi, inHg, inH₂O, ftH₂O, hPa, Pa
Measurement Modes	Differential, Max, Min, Average
Display	Large LCD with backlight, time/date display
Functions	Datalogging (15,996 groups), data hold, low battery indicator, automatic power off (manual or PC software configurable)
PC Software	Supports USB connectivity for data transfer and management
Battery	1000 mAh 3.7V rechargeable lithium battery
Working Time	About 13 hours
Charging Time	About 1.5 hours
Charge Mode	5V 1A power adapter or computer USB
Power Consumption	400 mW (with buzzer off)
Current Consumption	Standby: 3.5 μA / Working: 90 mA
Protection Functions	Overcharging and over-discharging
Material	ABS
Temperature Compensation	23 °F to 122 °F (-5 °C to 50 °C)
Operating Temperature	14 °F to 140 °F (-10 °C to 60 °C)
Weight	1.70 lb (0.77 kg) gross
Dimensions	10.79 in x 8.54 in x 2.76 in (27.4 cm x 21.7 cm x 7.0 cm)
