Overview

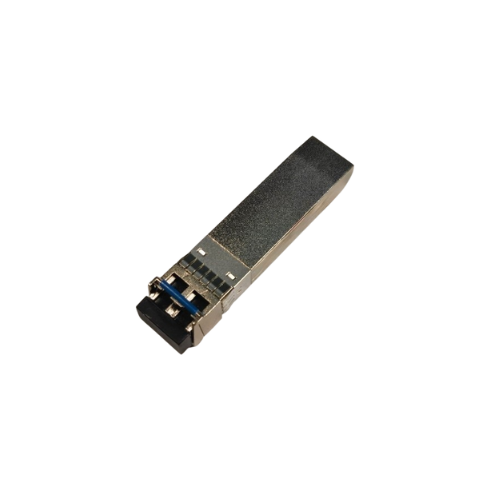

Emissions And Stack 10GBASE SFP+ Transceiver Module is designed for high-speed data transmission in telecommunication networks and data centers. This device supports 10G data rates with multiple wavelength options including 850 nm, 1310 nm, and 1550 nm, offering reliable connectivity over distances ranging from 300 meters to 80 kilometers. It features duplex LC interfaces, making it suitable for both multimode and single-mode fiber connections. With advanced optical components such as VCSEL, DFP, and EML, this product ensures stable performance and efficient signal transmission. This product is MSA compliant, supports DDM/DOM monitoring, and is ideal for applications that require dependable fiber optic communication across various ranges.
Features
- Supports high-speed 10G data transmission
- Available with multiple wavelength options (850 nm, 1310 nm, 1550 nm)
- Transmission distance ranges from 300 meters (984.25 ft) to 80 km (49.71 mi)
- Duplex LC interface for easy connectivity
- Compatible with multimode and single-mode fiber cables
- Advanced optical components (VCSEL, DFP, EML) for stable performance
- DDM/DOM support for real-time monitoring
- Ideal for telecom networks and data centers
Technical Specifications
| Type | Fiber Optic Transceiver |
| Form Type | SFP+ |
| Data Rate | 10 Gbps |
| Wavelength | 850 nm, 1310 nm, 1550 nm |
| Distance | 300 m (984.25 ft), 10 km (6.21 mi), 40 km (24.85 mi), 80 km (49.71 mi) |
| Interface | Duplex LC |
| Cable Type | MMF or SMF |
| Optical Components | VCSEL 850 nm, DFP 1310 nm, EML 1550 nm |
| TX Power Range | -7.3 to -1 dBm, -8.2 to 0.5 dBm, -1 to 4 dBm, 0 to 5 dBm |
| Receiver Sensitivity | < -11.1 dBm, < -14.4 dBm, < -16 dBm, < -23 dBm |
| Core Size | 50/125 µm, 9/125 µm |
| Commercial Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
| HS Code | 8517706000 |
