Overview

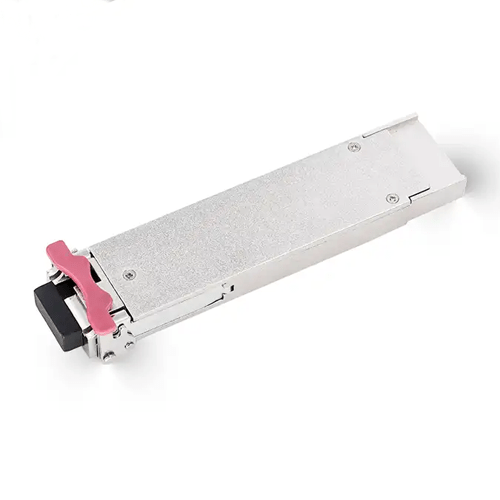

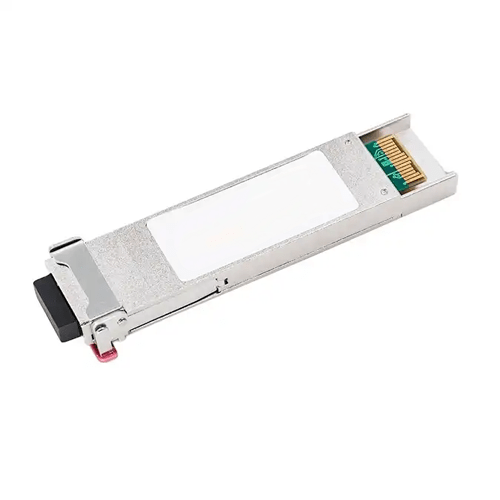

Emissions And Stack XFP single fiber transceiver is compliant and has transmission distance up to 60 km on SMF. The transceiver module comprises a transmitter with a 1270 nm or 1330 nm DFB laser transmitter, an integrated 1330 nm or 1270 nm detector preamplifier mounted in an optical header and a limiting post – amplifier IC. Transmitter and receiver are separate within a wide temperature range of 32 ºF to 158 ºF (0 ℃ to 70 ℃) for commercial temperature, -40 ºF to 185 ºF (-40 ºC to 85 °C) for industrial temperature and offers optimum heat dissipation and excellent electromagnetic shielding for 10 GbE systems application.
Features
- Supports 9.95 Gb/ s to 11.3 Gb/ s bit rates
- Simplex LC Connector
- Hot-pluggable XFP footprint
- Uncooled 1330 nm DFB transmitter, 1270 nm PIN photodetector
- Applicable for 60 km SMF connection
- Low power consumption, <1.8 W
- Digital Diagnostic Monitor Interface
- XFP MSA package
- Commercial 32 ºF to 158 ºF (0 ºC to 70 ºC)
- Industrial 40 ºF to 185 ºF (-40 ºC to 85 ºC)
Technical Specifications
| Data Rate | 10 Gbps |
| Wavelength | 1330 nm to 1270 nm |
| Distance | 37.28 mi (60 km) |
| Sensitivity | <-23 dBm |
| Output Power | 5 dBm to 1 dBm |
| Power supply | 3.3 V |
| Low Power Consumption | <1.8 W |
| Temperature | 32 ºF to 158 ºF (0 ºC to 158 ºC) |
