Features
- High sensitivity and resolution
- Low power consumption
- Provide UART, analog voltage signal output mode
- High stability, strong anti-interference ability
Overview

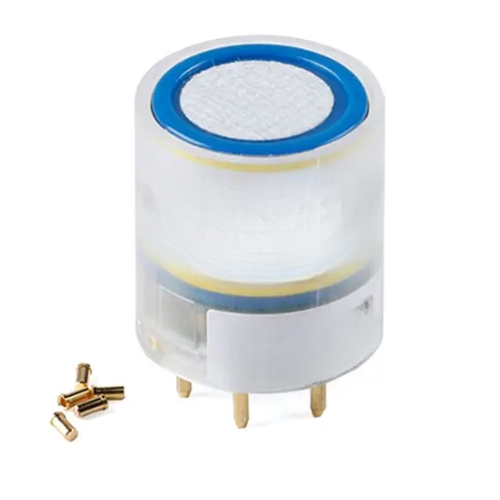

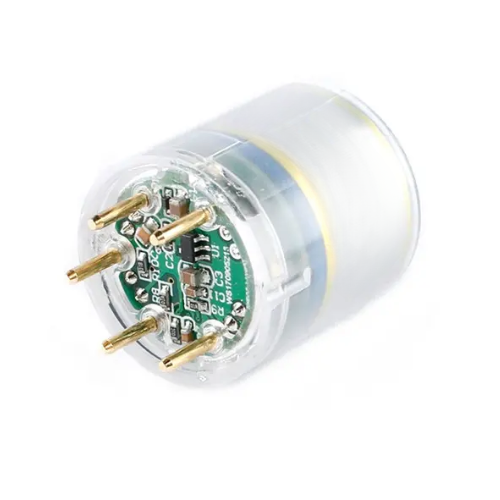

GAOTek Hydrogen Sulfide Gas Sensor H2S for Chemical & Plants is a high-performance, general-purpose electrochemical gas detection module. It utilizes a three-electrode electrochemical gas sensor and a high-performance microprocessor to measure various gases with exceptional accuracy.
Equipped with a built-in temperature sensor for temperature compensation, this device ensures precise gas concentration measurements in different environments. It offers both digital output and analog voltage output, making it highly convenient for users to integrate and debug. Additionally, its advanced design significantly shortens the development cycle, providing a seamless combination of electrochemical sensors and circuitry to meet diverse gas detection requirements.
Technical Specifications
| D/C | Newest |
| Type | Hydrogen sulfide Sensor Module |
| Condition | 100% Brand |
| Lead Time | 3 to 5 days |
| Service | BOM and one-stop service |
| Output Data | UART output (TTL level, 3 V) Analog voltage |
| Detection Gas | CO, O2, NH3, H2S, NO2, O3, SO2 CL2, HF, H2, PH3, HCL, etc. |
| Working Voltage | DC 5.0 V ± 0.1 V |
| Working Current | < 5 mA |
| Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Humidity | 15% to 90%RH non-condensing |
