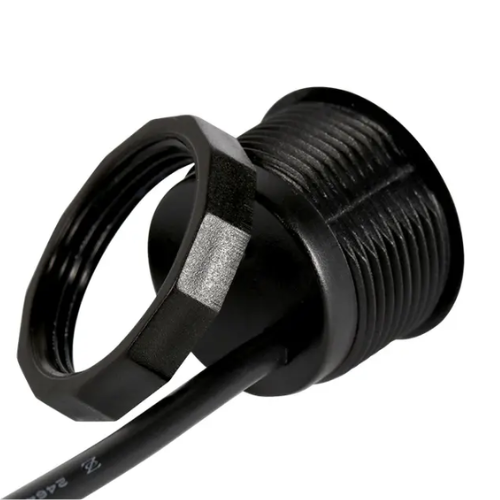

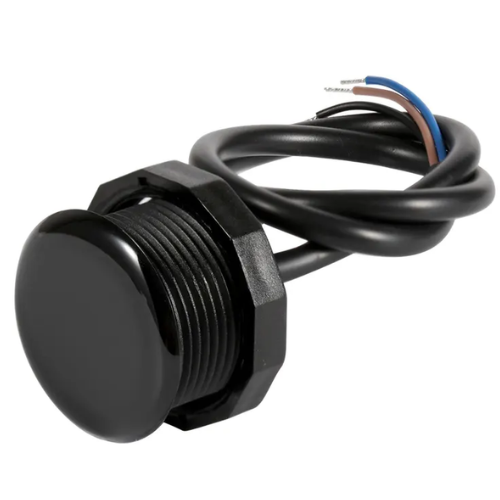

Inductive Proximity Sensor for Presence Detection – Emissions and Stack

High-precision sensor with DC 5V-24V operation, IP67 waterproof rating, and a sensing range of up to 200 cm indoors. Features a fast ≤500ms response time, 30-40° induction angle, and fireproof PC-V0 material for reliable performance in various environments

SKU: EMSPPS-225 Category:

Technical Specifications

Operating Voltage DC 5 V to 24 V
Sensing Distance (Indoor) 2 in to 79 in (5 cm to 200 cm)
Sensing Distance (Outdoor) 2 in to 59 in (5 cm to 150 cm)
Sensing Distance (Direct sunlight) 2 in to 39 in (5 cm to 100 cm)
Sensing Accuracy (Indoor) ±2 in (±5 cm)
Sensing Accuracy (Outdoor) ±4 in (±10 cm)
Sensing Accuracy (Direct sunlight) ±12 in (±30 cm)
Response Time ≤ 500 ms
Induction Angle 30 to 40° cone angle
Induction Method Active
Quiescent Current Less than 3.5 mA
Load Current Less than 1 A
Working Temperature -4 °F to 185 °F (-20 °C to 85 °C)
Storage Temperature -4 °F to 185 °F (-20 °C to 85 °C)
Line Length 11.81 in (±0.39 in) or 30 cm (±10 mm)
Material PC-V0 fireproof material
Waterproof Performance IP67
