Overview

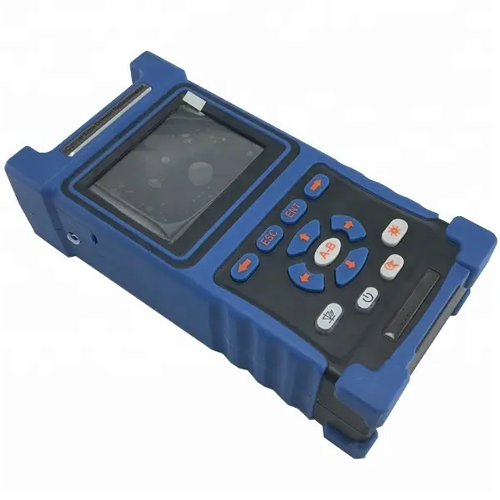

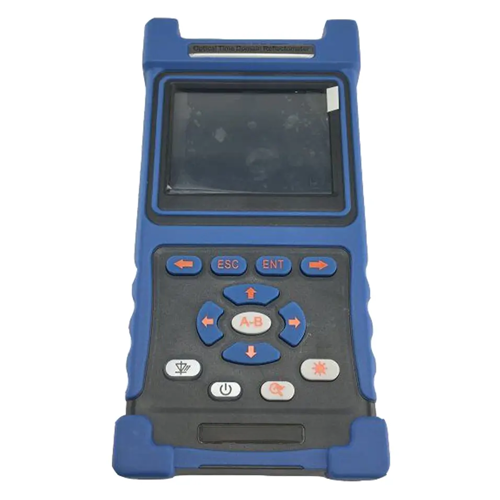

Emissions And Stack Power Meter is a new generation of intelligent optical measuring instruments designed for optical fiber communication system testing. This product is mainly used to measure the parameters of optical fibers and cables, such as length, loss, and connection quality, etc. it can realize the accurate positioning of event points and fault points and can be used in the construction, maintenance testing and emergency repair of the optical fiber communication systems as well as the research, production and production measurement of optical fibers and cables and so on.
Features
- System information
- Store test result
- Operate test result
- Copy path
- Allows test parameter setting
- Work wavelength
- Test result
- Work item

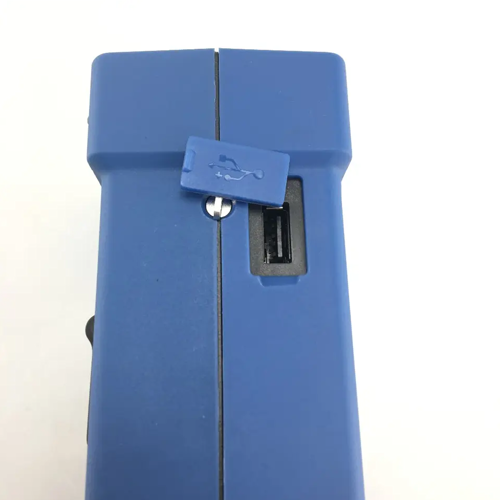

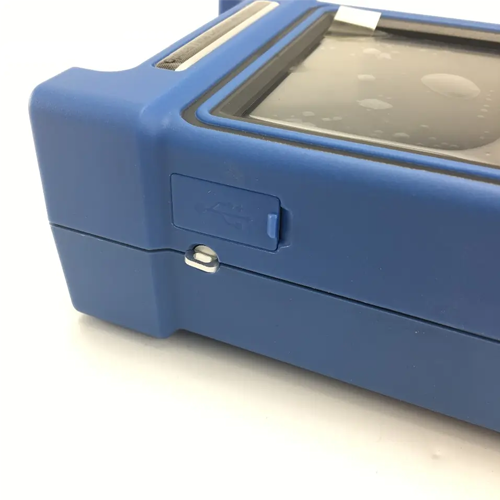

- USB port
Technical Specifications
| Display | 7 in TFT-LCD with LED backlight |
| Interface | 1 x RJ45 port, 3 x USB port |
| Power Supply | 10 V DC, 100 V AC to 240 V AC |
| Frequency | 50 Hz to 60 Hz |
| Battery | 7.4 V DC or 4.4 Ah lithium battery |
| Data storage | Internal memory: 4 GB |
| Operating temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Storage temperature | -4 °F to 167 °F (-20 °C to +75 °C) |
| Dimension | 9.96 in x 6.61 in x 2.90 in (253 mm x 168 mm x 73.6 mm) |
| Weight | 3.31 lb (1.5 kg) |
