Overview

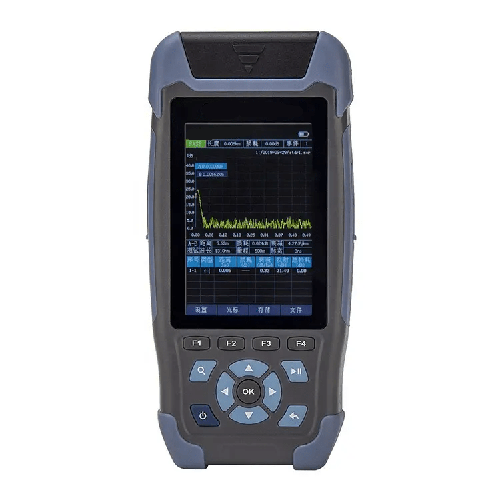

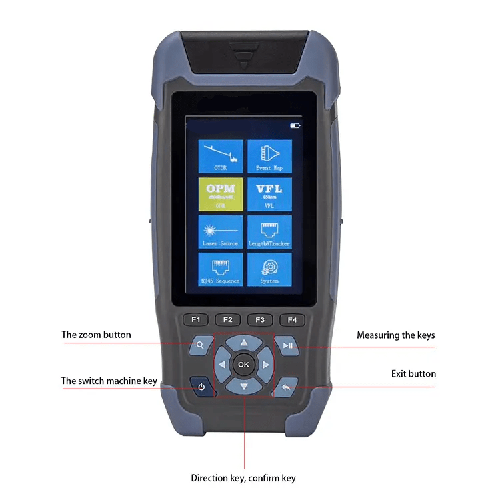

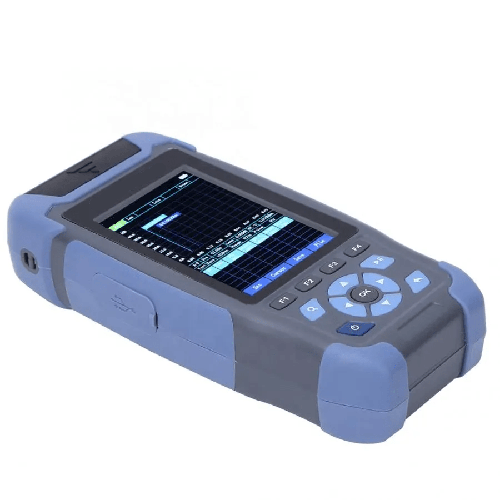

Emissions And Stack Mini OTDR Power Meter is applied to FTTx and access network construction and maintenance to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5-in colourful LCD screen, a new plastic shell design, shock-proof and drop-proof. The tester also combines eight functions with highly integrated OTDR, Event maps. Stable Light source, Optical power meter, Visual fault locator, cable sequence proofreading, cable length measurement and lighting functions. It could quickly detection of breakpoints, a universal connector, 600 internal storage, a TF card, USB data storage and built-in 4000 mAh lithium battery, and USB charging. It is a good choice for long-term fieldwork.
Technical Specifications
| Network | Wireless Lan, WI-FI |
| Use | Fiber Test |
| ATT Blind Zone | 26.25 ft (8 m) |
| Fiber Type | G.652 SM Fiber |
| Dynamic Range | 24 dB or 22 dB |
| Event Blind Zone | 9.84 ft (3 m) |
| Test Range | 0.31 mi to 37.28 mi (500 m to 60 km) |
| Pulse Width | 3 ns to 10 us |
| Sampling Resolution | 0.16 ft to 26.25 ft (0.05 m to 8 m) |
| Loss Accuracy | ± 0.2 dB |
