Overview

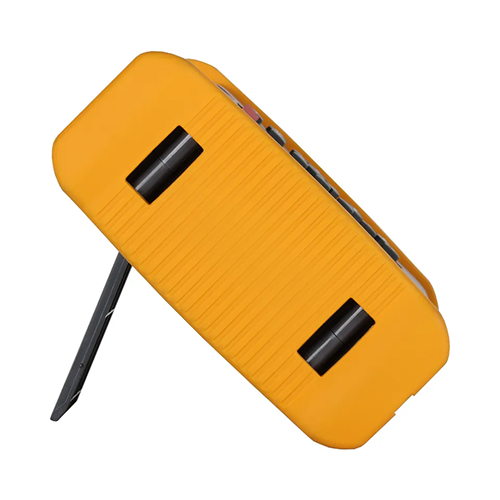

Emissions And Stack optical power meter is multi-functional fiber testing tool. For different optical network test, multiple wavelength combinations and dynamic ranges are available. Humanized interface and simple operation, it will be a great helper in the fiber network testing.
Features
- Support pass-through 1 x 64 splitters

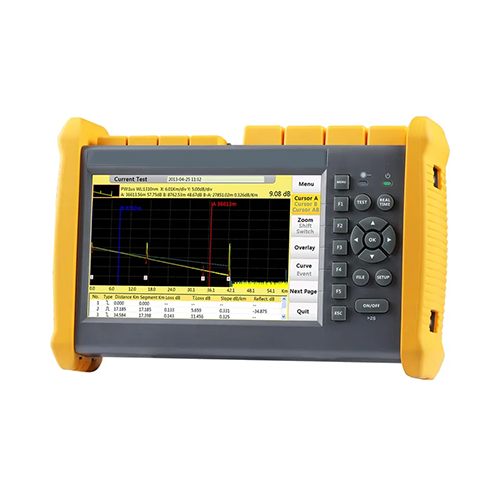

- FLM (Fiber Link Map) function, icon display fiber events
- Remote control on PC software is available
- Multi-languages selection
- Multiple dynamic ranges and wavelength combinations can be customized
- With an online light alarm function
Technical specifications
| Wavelength | 1310 or 1550 nm |
| Dynamic Range | 40 or 38 dB |
| Dead-zone | 3.28 ft to 13.12 ft (1 m or 4 m) |
| Pulse Width | SM: 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 us, 2 us, 5 us, 10 us, 20 us |
| MM: 850 nm: 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 us1300 nm: 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 us, 2 us | |
| Distance range | SM: 0.06 mi, 0.31 mi, 1.24 mi, 3.10 mi, 6.21 mi, 12.42 mi, 24.85 mi, 49.70 mi, 74.56 mi, 99.41 mi, 149.129 mi (100 m, 500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km, 160 km, 240 km) |
| MM:850 nm: 0.31 mi, 1.24 mi, 3.10 mi, 6.21 mi (500 m, 2 km, 5 km，10 km)
1300 nm: 0.31 mi, 1.24 mi, 3.10 mi, 6.21 mi, 12.42 mi, 24.85 mi, 49.70 mi (500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km) |
|
| Sampling Resolution | Min 1.96 in (0.05 m) |
| Sampling Points | Max 128,000 |
| Linearity | ≤ 0 .05 dB/dB |
| Loss Threshold | 0.01 dB |
| Distance Resolution | 0.01 m |
| Loss Resolution | 0.001 dB |
| IOR | 1.2000 to 1.7000 |
| Distance Accuracy | ± (3.28 ft or 1 m + test distance × 3 × 10- 5 + sampling resolution) (excluding IOR uncertainty) |
| Memory Capacity | 80,000 groups curve |
| VFL | 10 mW, CW/2 Hz |
| OPM | Calibrated wavelength：850 or 1300 or 1310 or 1490 or 1550 or 1625 or 1650 nmTest range：-60 to 5 dBm |

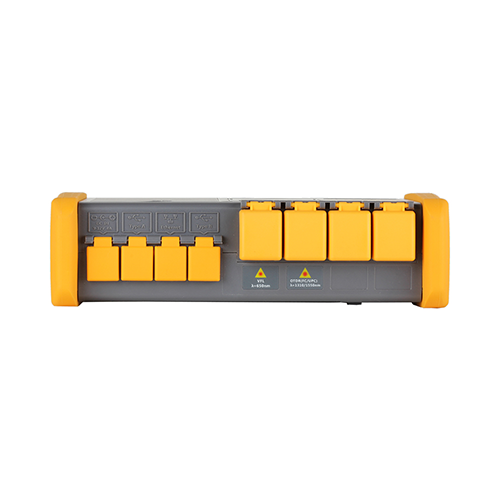

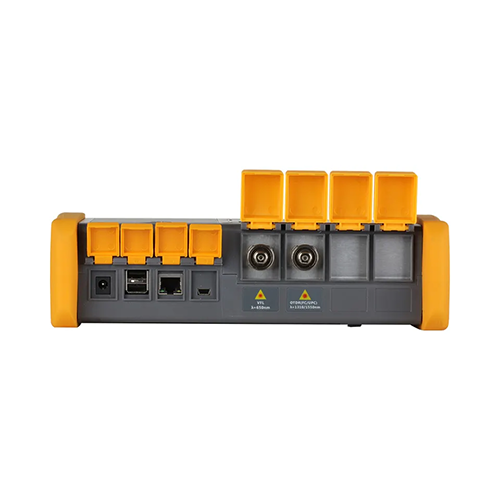

| Interface | 1 x RJ-45, 3 x USB (Type A×2, Type B×1) |

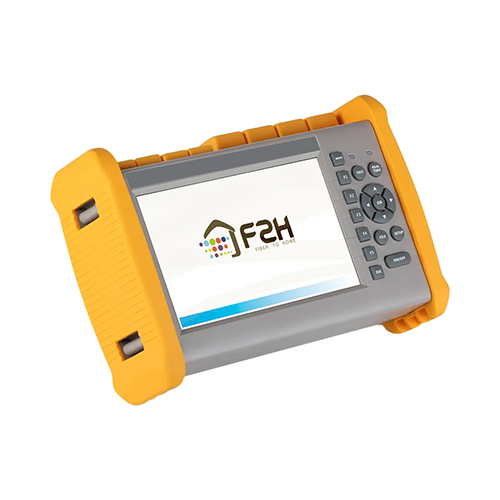

| Display | 7-inch TFT-LCD (touch screen is optional) |
| Battery | 7.4 V or 4.4 Ah lithium battery (with air traffic certification) |
| Humidity | ≤ 95 % (No-condensation) |
| Accessories | Power adapter, Charge cord, Lithium battery, FC adapter, USB cable, Quick guide, Test report, CD, Carrying bag, Wrist strap |
| Optional | SC/LC adapter, Fiber microscope, Launch cable box |
| Dimension | 9.96 in × 6.61 in × 2.89 in (253 mm × 168 mm × 73.5 mm) |
| Weight | 3.31 lb (1.5 kg) |
