Overview

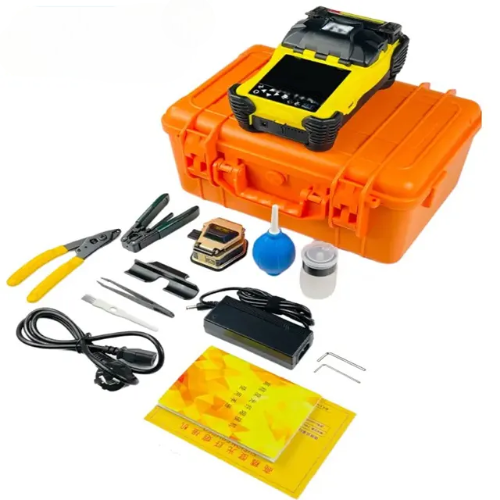

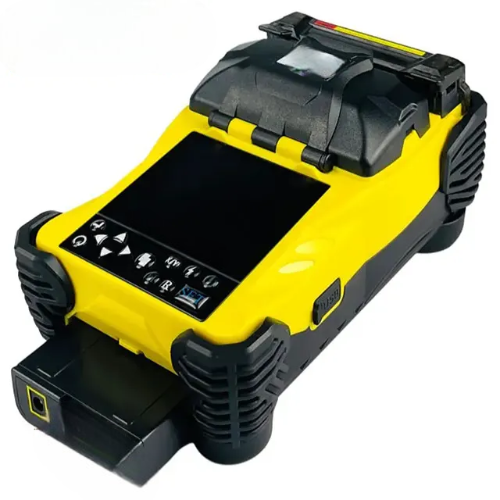

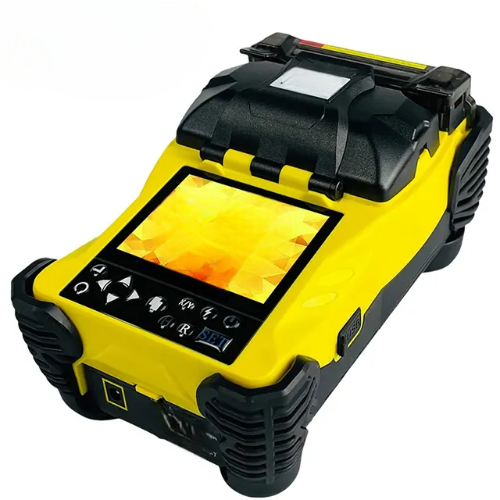

Emissions And Stack Optical Fusion Splicer Fiber Optic Cable Welder Splicing Machine, with high-speed image processing technology and special precision positioning technology, can complete the whole process of fiber fusion splicing automatically in 6 seconds. Characterized by light weight, easy to carry and convenient to operate, fast splicing speed and low losses, it is especially suitable for optical fiber and cable projects, maintenance scientific research and teaching in telecommunications, radio and television, railway, petrochemical, electric power, military and public security and other communications fields. This machine is mainly used for the connection of optical fibers, which can be further connected with ordinary optical fiber cables, jumpers and multiple single-mode, multi-mode and dispersion-shifted quartz optical fibers with a cladding diameter of 50 um to 150 um, keep it clean and protect it against strong vibrations and shocks.
Features
- Compact & Lightweight with only 3.30 lb (1.50 kg) weight
- Ultra-fast splicing (6 sec)
- Chinese or English dual language switching
- Free of disassembly three-in-one universal fixture (tail fiber, bare fiber, leather)
- Core alignment, 6 seconds welding, 16 to 26 seconds heating (heating time can be set, heating temperature can be adjusted)
- Dust-free, water resistant and shock-proof
- 5-inch TFT color LCD high-resolution screen
Technical specifications
| Compatible Fiber Type | SM (G.652 & G.657), MM (G.651), DS (G.657), NZDS (G.655) and self-defined type |
| Cleaved Length | Coating less than 250um: 0.31 in to 0.68 in (8 mm to 16 mm) Coating less than 250 to 1000 um: 0.62 in (16 mm) |
| Cladding Or Sheath Diameter | Cladding Diameter: 80 to 150um; Coating Diameter: 100 to 1000um |
| Return Loss | over 60 dB |
| Control Technology | Real-time control and calibration of fusion ARC |
| Typical Splice Loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) |
| Splicing Time | 6 sec |
| Heating Time | 16 to 26 sec |
| Optical Fiber Alignment | Precise alignment, fiber core alignment, cladding alignment |
| Splicing Mode | 17 groups of operation modes to choose |
| Display | 5-inch TFT color display |
| Splicing Loss Storage | 5000 latest splicing results stored in built-in storage |
| Heating Mode | 9 group of operation modes |
| Fiber View & Magnification | 400 times for X or Y views |
| External Interface | USB interface for data download and software upgrading |

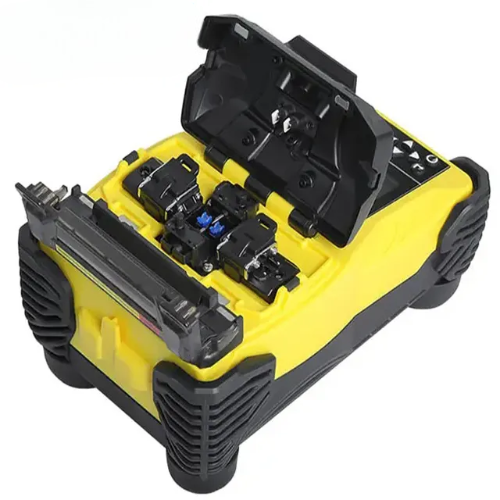

| Optical Fiber Clamp | multifunctional clamp for bare fiber or tail fiber or jumpers or drop fibers; Changing clamp applicable for SC and other type connectors for a variety of FTTX optical fiber cable |
| Built-In Lighting | easy for night operation |
| Battery | 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 200 times; 15 % power can be saved under a typical environment |
| Operating Condition | Temperature: 5 °F to 122 °F (-15 °C to 50 °C),
Working altitude: 0 m to 5000 m, Resist max. wind speed: ≤ 15 m/s |
| Heat Shrink Bush | 2.36 in, 1.57 in (60mm, 40mm) and series of miniature bush |
| Dimension | 5.35 in x 8.42 in 4.311 in (136 mm x 214 mm x 109.5 mm) (excluding rubber bumper) |
