Features
- Humanized OTDR software provides detailed test reports

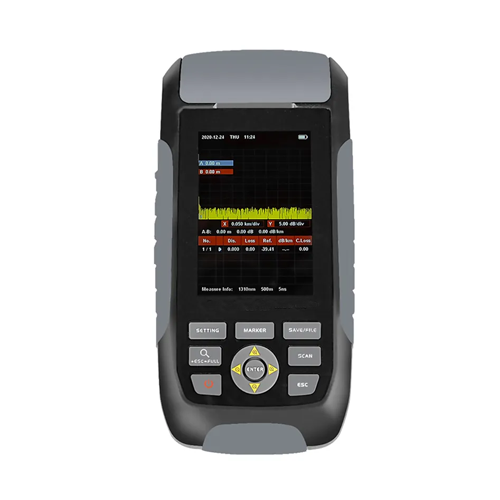

- Waveform display, fast zoom through event points
- Silicone buttons, dust-proof, cover for connecting ports
- Built-in VFL and OPM
- 5V phone charger supportable for charging
Technical Specifications
| VFL Wavelength | 650 nm ± 20 nm |
| Fiber Type | SM |
| OPM Test Range | -50 dBm to + 26 dBm |
| Distance Setting | Max 49.7 mi (80 km) |
| Calibration Wavelength | 33.46 in (850 mm), 51.18 in (1300 mm), 51.57 in (1310 mm), 58.66 in (1490 mm),
61.02 in (1550 mm), 63.97 in (1625 mm) |
| Storage | Internal memory or TF card (optional) |
| OTDR Connector | FC or PC or customized |
| Max Capacity | 2400 mAh |
| Operate Temperature | 32°F to 122°F (0 °C to 50 °C) |
| Size | 6.61 in x 3.7 in x 1.4 in (16.9 cm x 9.5 cm x 3.8 cm) |
