Overview

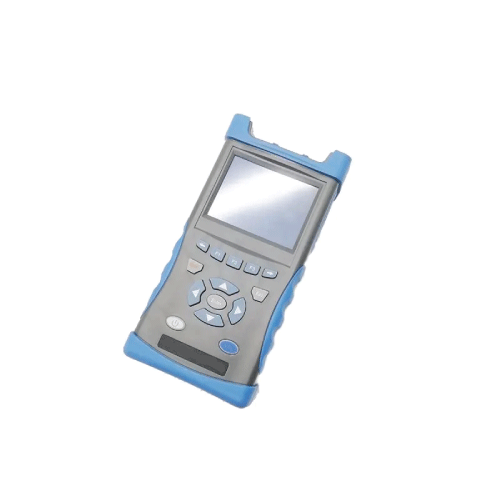

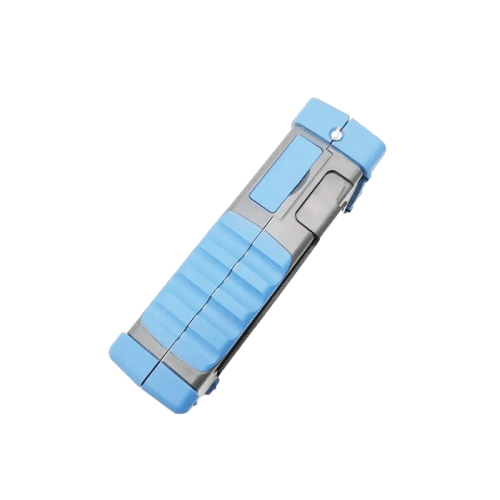

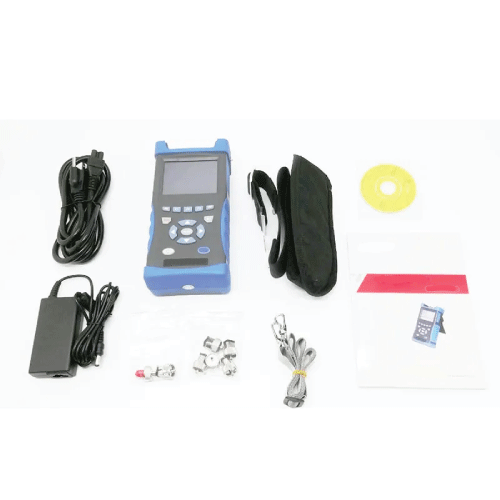

Emissions And Stack Mini OTDR with Optic Power Meter is a high-performance, multi-function test instrument designed by FCST for FTTH networks. It has excellent test performance and can support VFL. This product is mainly used to measure the length, transmission loss, splice loss and other optical physical characteristics of optical fiber and cable. It is widely used in FTTH networks, local optical networks, metropolitan area optical networks, maintenance, certification, and optical communication teaching and research.
Features
- Button + touch screen, convenient and quick test, one-key direct test and analysis
- Quickly find fiber optic cables, accurately analyze faults, save time and improve efficiency
- Core sensing technology to ensure accurate measurement
- Real-time analysis and editing on the PC side of the curve
- Batch editing and batch export functions
- Unique multi-file list display mode
- Realize fast switching browsing and analysis of multiple data
Technical Specifications
| Max. Dynamic Range | 32 dB, 30 dB |
| Wavelength | 1310 nm, 1550 nm |
| Event Dead Zone | 5 ft (1.5 m) |
| Type | Single-Mode |
| Attenuation Dead Zone | 32.8 ft (10 m) |
| Test Range | 0.31 mi, 0.62 mi, 1.24 mi, 2.49 mi, 4.97 mi, 9.94 mi, 19.88 mi, 39.77 mi, 79.54 mi, 158.86 mi (0.5 km, 1 km, 2 km, 4 km, 8 km, 16 km, 32 km, 64 km, 128 km, 256 km) |
| Pulse Width | 5 ns, 30 ns, 50 ns, 100 ns, 275 ns, 500 ns, 1000 ns, 5000 ns, 10000 ns |
| Ranging Accuracy | ± (3.28 ft (1 m) + sample interval + 0.005 % × distance) |
| Attenuation Measurement | ± 0.05 dB |
| Reflection Measurement | ± 5 dB |
| Data Storage | ≥ 2000 testing curves |

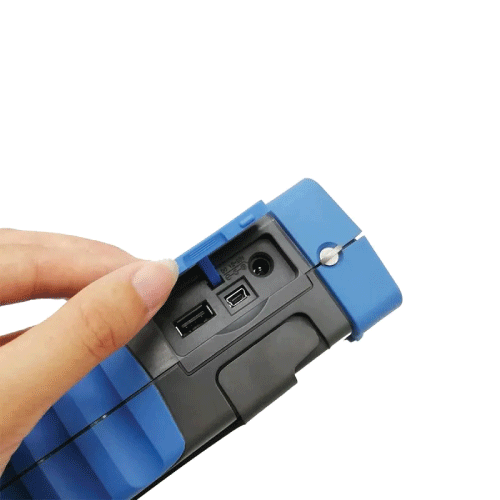

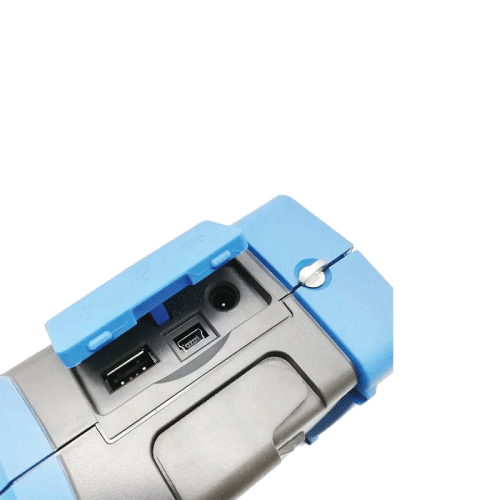

| Communication Interface | USB |
| Visible Red-Light Source | Testing Distance ≥ 3.10 mi (≥ 5 km) |
| Power Supply Mode | AC or DC adapter: alternating current: 100 V to 240 V (1.8 A), 50 Hz or 60 Hz |
| Direct Current | 19 V ± 1 V (2 A) |
| Battery | Internal lithium-ion battery groups: 7.4 V, 5200 mAh |
| Working Duration of the Battery | ≥ 10 hrs |
| Working Temperature | 23 °F to 122 °F (-5 °C to 50 °C) |
| Preserve Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Use | FTTH |
| Network | Wireless LAN, WIFI, 4G |
| Fiber Type | 9 μm or 125 μm SM Fiber |
| Reflection Event Dead Zone | 49.21 ft (15 m) |

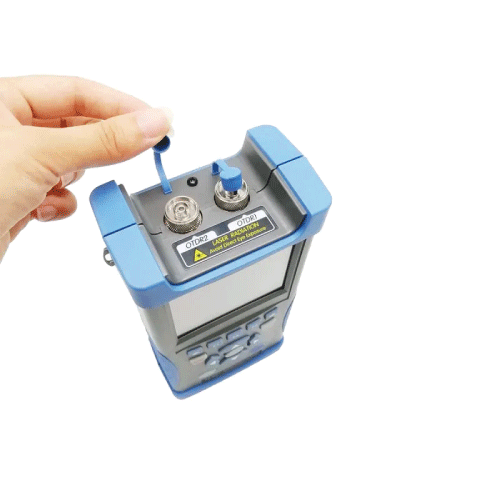

| Optical Connector | FC or PC |
| Peak Power of Laser | 60 mW |
| Working Temperature | -58 °F to 104 °F (-50 °C to 40 °C) |
| Dimensions | 3.54 in × 3.94 in × 1.97 in (90 mm × 100 mm × 50 mm) |
| Weight | 2.2 lb (1 kg) |
