Overview

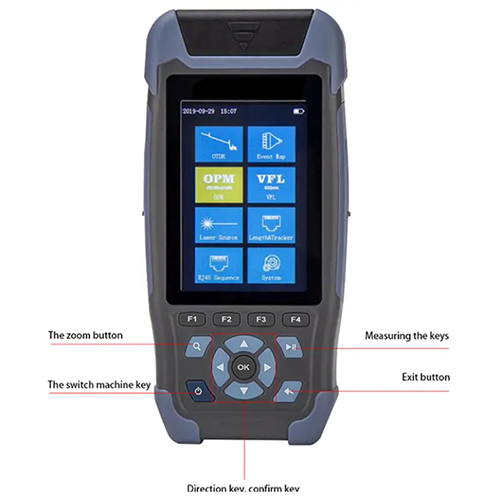

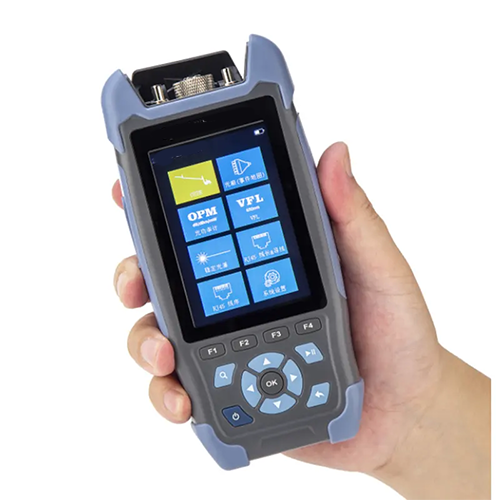

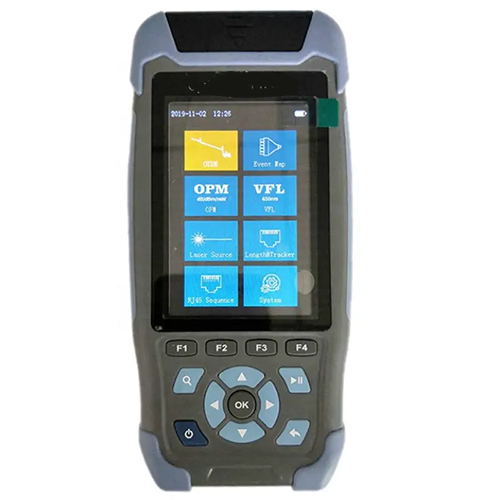

Emissions And Stack NK3200 Optical Power Meter is a unique mainly designed for construction and maintenance of telecommunication and CATV networks. It can be widely used in engineering construction, maintenance test and emergency repair of all fiber optics related systems. Comparing with a regular OTDR, it is more compact in size and easier for field use.
Technical specifications
| Wavelength | 1550 nm ± 20 nm |
| Fiber Type | G.652 |
| Dynamic Range | 22 dB |
| Event Blind Zone | 118.11 in (3 m) |
| ATT Blind Zone | 314.96 in (8 m) |
| Test Range | 0.31 mi (500 m) to 37.28 mi (60 km) |
| Pulse Width | 3 ns to 10 us |
| Ranging accuracy | ± (3.28 ft or 1 m + Sampling interval +0.005 % × Test distance) |
| Loss accuracy | ± 0.05 dB/dB |
| Sampling Points | 16 K to 128 K |
| Sampling resolution | 1.97 in (0.05 m) to 314.96 in (8 m) |
| Reflection accuracy | ± 3 dB |
| Data Storage | Internal: ≥ 600; External: TF Card |
| Laser Safety Level | Class Ⅱ |
| File format | SOR Standard file format |

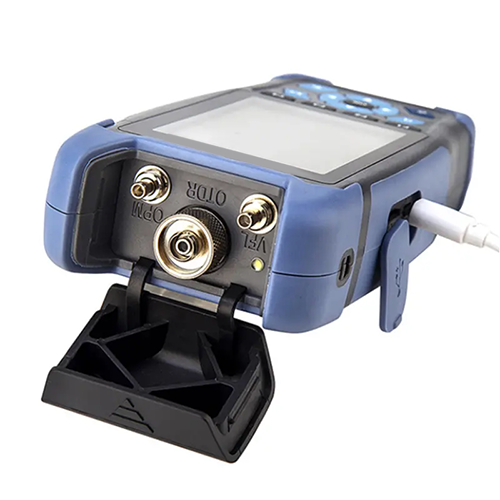

| Connector | FC/UPC (Interchangeable SC, ST) |
