Overview

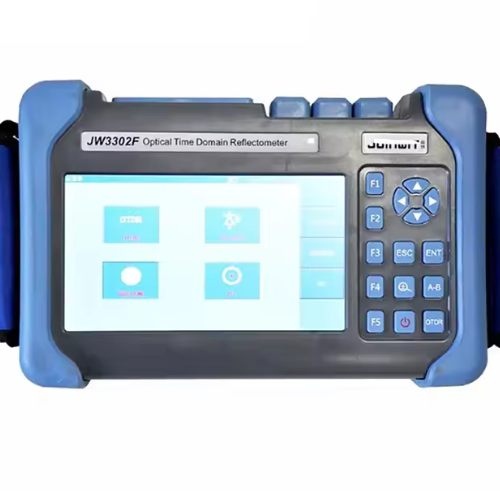

Emissions And Stack fiber optical time domain reflectometer is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and country sides, the measurement of optical network becomes short and dispersed. This product is specially designed for that kind of application. It’s economic, having outstanding performance. It is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new
design makes t smarter.
Features
- Integrated Design
- Smart and Rugged
- IP65 Protection Level
- Outdoor Enhanced
- 7-inch Anti-reflection LCD Screen
- Multi-language Display and Input
Technical Specifications
| Type of Optical fiber | Single Mode |
| Center Wavelength | 1310 nm/1490 nm/1550 nm/1625 nm |
| Display | 7-inch TFT-LCD with LED backlight (touch screen function is optional) |
| Interface | 1 × RJ45 port, 3 × USB port (USB 2.0, Type A USB × 2, Type B USB × 1) |
| Power Supply | 10 V(dc), 100 V(ac) to 240 V(ac), 50 Hz to 60 Hz |
| Battery | 7.4 V(dc)/4.4 Ah lithium battery (with air traffic certification) Operating time: 12 hours, Telcordia GR-196-CORE Charging time: < 4 hours (power off) |
| Power Saving | Backlight off: Disable/1 minute to 99 minutes Auto shutdown: Disable/1 minute to 99 minutes |
| Data Storage | Internal memory: 4 GB (about 40,000 groups of curves) |
| Environmental Conditions | Operating temperature and humidity: 14 °F to 122 °F (-10 ℃ to +50 ℃), ≤ 95% (non-condensation) Storage temperature and humidity: -4 °F to 167 °F (-20 ℃ to +75 ℃), ≤ 95% (non-condensation) Proof: IP65 (IEC60529) |
| Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter |
| Dimension | 9.96 in × 6.61 in × 2.90 in
(25.3 cm × 16.8 cm × 7.36 cm) |
