Overview

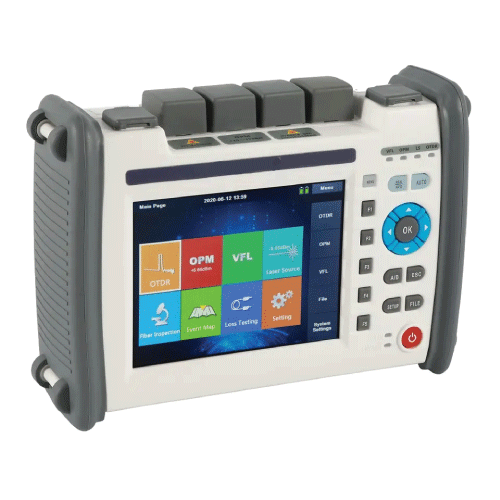

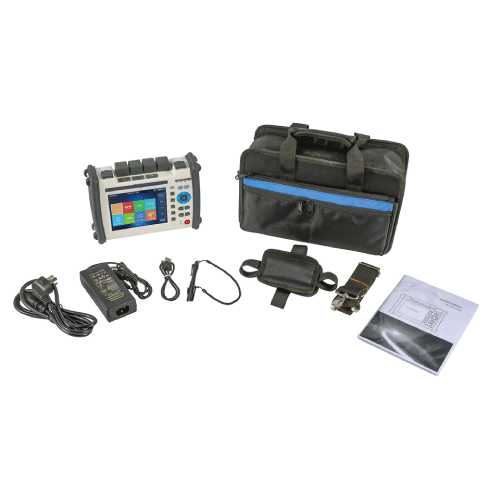

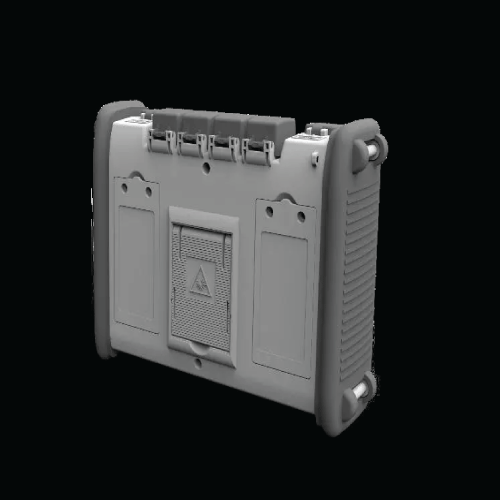

Emissions And Stack OTDR with Power Meter is a comprehensive optical fiber measuring instrument to solve the measurement of various parameters of optical fiber. It mainly uses the OTDR function and has other standard measuring functions.
Features
- Touch-sensitive and solid physical buttons work together for a perfect user experience
- Excellent for short-range measurement, Dead zone: 2.62 ft or 13.12 ft (8 m or 4 m)
- Maximum sampling resolution: 1.97 in (5 cm)
- Support multiple analysis functions on testing results: Segment return loss, Event point return loss, Multi curves comparison, and quick screenshots
- Complete user data interface: USB (Type A), MINI USB, SD card
Technical Specifications
| Pulse Width | SM: 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs |
| MM: 850 nm: 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs
1300 nm: 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs |
|
| Test Range | SM: 0.062 mi, 0.31 mi, 1.24 mi, 3.10 mi, 6.22 mi,12.43 mi, 24.9 mi, 49.71 mi, 74.56 mi, 99.42 mi, 149.13 mi (100 m, 500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km,160 km, 240 km) |
| MM: 33.46 in (850 mm): 0.31 mi, 1.24 mi, 3.11 mi, 6.21 mi (500 m, 2 km, 5 km,10 km)
3200.7 in (1300 mm): 0.31 mi, 1.24 mi, 3.11 mi, 6.21 mi, 12.43 mi, 24.85 mi, 49.71 mi (500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km) |
|
| Minimum Sampling Resolution | 0.02 in to 3.15 in (0.6 mm to 80 mm) |
| Maximum Sampling Point | 256,000 |
| Linearity | ≤ 0.05 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.033 ft (0.01 m) |
| Distance Accuracy | ± (3.28 ft (1 m) + Range × 0.0003 + Sampling resolution) |
| Result Storage | > 16 GB SD card (Max support 128 GB), Store more than 100,000 pieces of data |
| Complete User Data Interface | USB (Type A), MINI USB, SD card |
| Use | FTTH, FTTB, FTTX |
| VFL | 6.21 mi (10 km), 10 mW, CW, 2 Hz |
| Use | FTTH, FTTB, FTTX |
| Monitor | 5.6 in TFT LCD 640 x 480 |
| Battery | 7.4 V or 2500 mAh x 2 lithium battery (Aviation certification) |
| VFL | 6.21 miles, 10 mW, CW/2 Hz |
| OPM Option A | -10 dBm to -70 dBm |
| OPM Option B | +23 dBm to -50 dBm |
| Laser Source | Output: -5 dBm ± 2 dB, |
| Frequency | CW, 270 Hz, 1 kHz, 2 kHz |
| GPS or GNSS | Customized |
| WIFI or Bluetooth | Customized |
| Network | None |
| Color | White |
| Working Temperature | 14 °F to 122 °F (-10 ℃ to +50 ℃) |
| Storage Temperature | -4 °F to 158 °F (-20 ℃ to +70 ℃) |
| Relative Humidity | ≤ 95 % (No condensation) |
| Size | 8.46 in × 6.1 in × 2.68 in (215 mm × 155 mm × 68 mm) |
| Weight | 2.2 lb (1.1 kg) (Including 2 batteries) |
