Overview

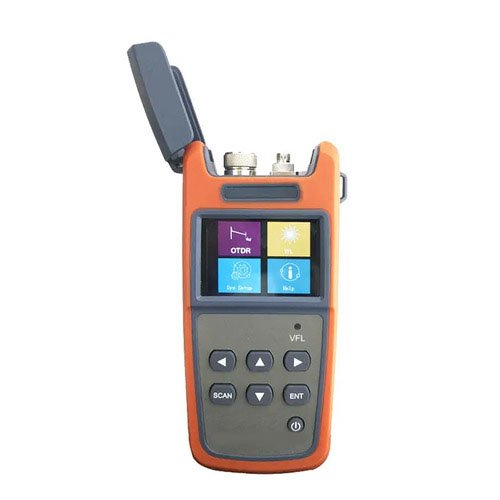

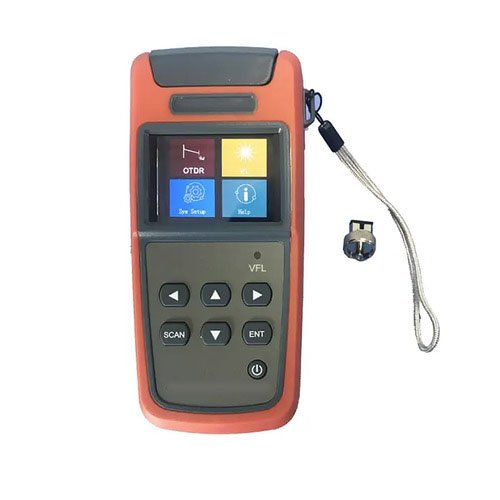

Emissions And Stack OTDR Optical Time Domain Reflectometers Built-in Visual Fault are the most portable test instruments in the industry. They adopt the OTDR technical principles and integrate the powerful analysis software, which enables them to detect fiber faults location more accurately.
Features
- Easy to use
- Portable, rugged, lightweight
- More accurate testing results and better repeatability
- Automatic pulse width control designed to ensure a convenient operation
- Easy to identify the faults location

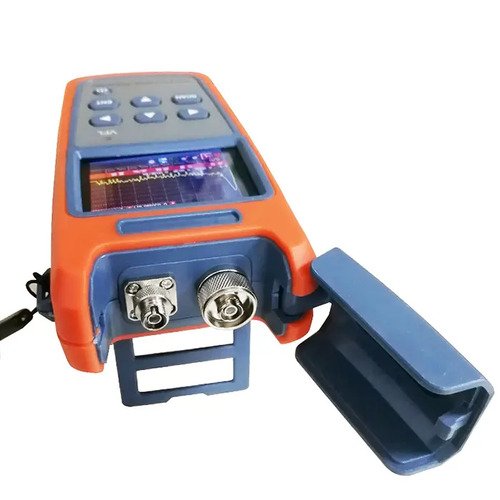

- Built-in visual fault locator (VFL) makes it convenient to find the faults in dead zone
- Dust-, water- and shock-proof, designed for field use
- 2.6-Inch screen, data saved in SOR format
Technical Specifications
| LCD | 3.5 in (88.9 mm)color LCD, Multi-touch screen |
| Connector | FC /SC |
| Pulse Width | 5 ns to 20 us |
| Attenuation Dead Zone | 393.70 in (1000 mm) |
| Event Dead Zone | 118.11 in (300 mm) |
| Min.Distance Resolution | 3.94 in (100 mm) |
| Loss Resolution | 0.001 dB |
| Distance Uncertainty | ±(0.8 + 0.005% x Testing Distance + Resolution) |
| OPM Function | T:+8 dBm to -70 dBm or C:+26 dBm to -50 dBm, 850 nm/1300 nm/1310 nm/1490 nm/1550 nm/1625 nm, FC or SC adapter |
| VFL Function | 1 mW |
| Storage | >500 results |
