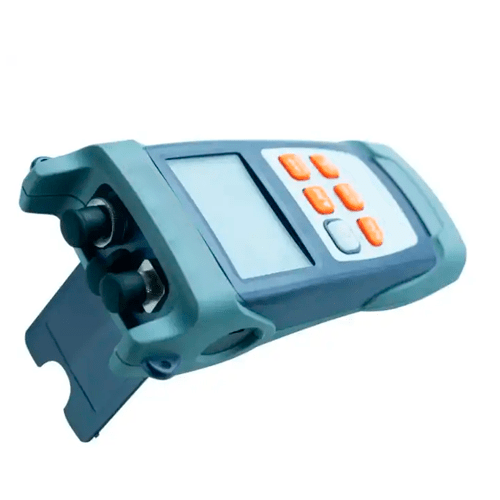

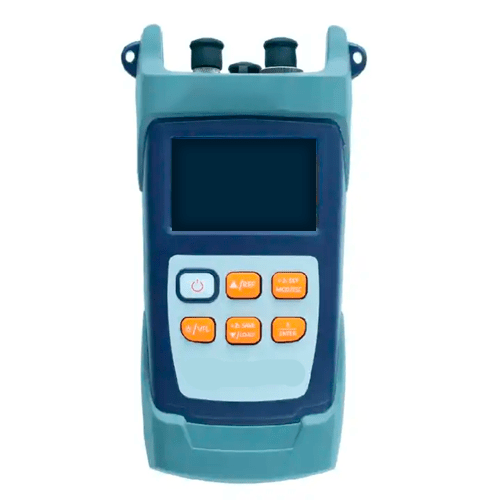

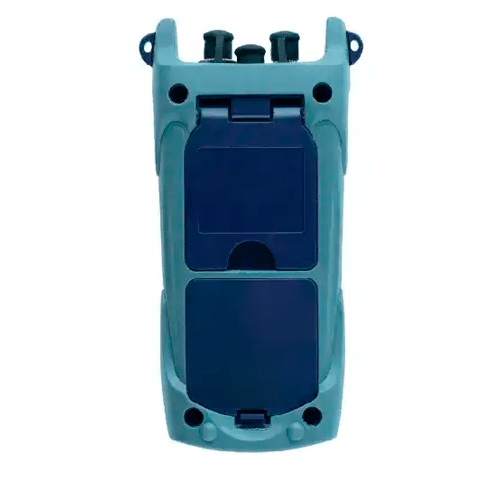

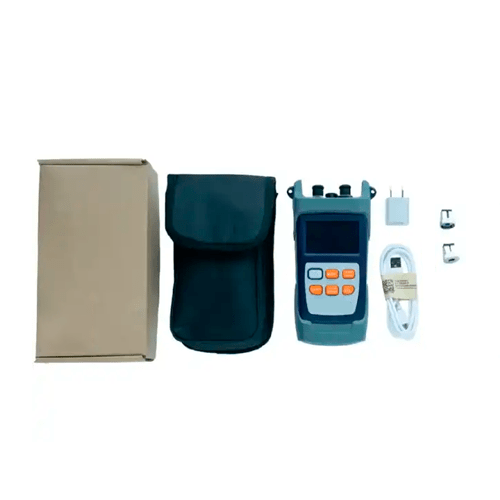

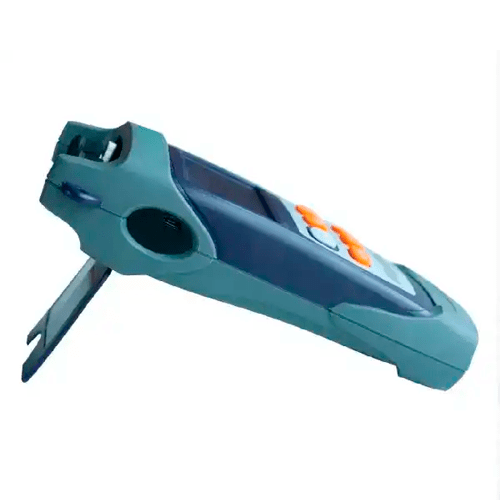

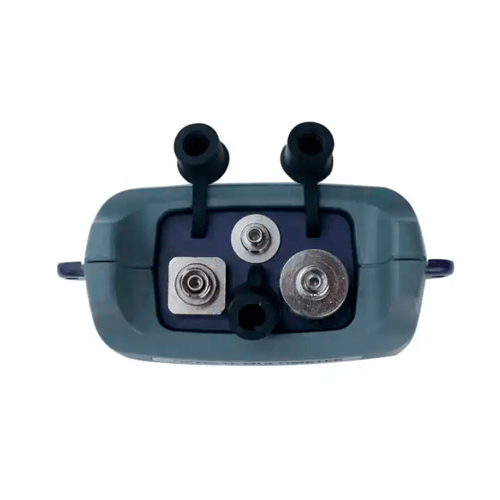

Power Meter Visual Fault Locator with 12-Hour Battery – Emissions And Stack

The Optical Time Domain Reflectometer with built-in VFL offers a 22dB dynamic range, rugged design, and portable functionality for precise fiber testing.

SKU: EMSVFL-211 Category:

Technical Specifications

Power Range -70 dBm to +6 dBm or -50 dBm to +26 dBm
Uncertainty ±5%
Storage 1000 traces
Stability ±0.05 dB or 30 min
Power Regulation 0 dB to 6 dB
Power 2400 mAh rechargeable battery
Automatic Shut Down Time 10 min
Continuous Working Time ≥12 hrs
Operating Temperature 14 ℉ to 122 ℉ ( -10 ℃ to 50 ℃)
Storage Temperature -40 ℉ to 158 ℉ ( -40 ℃ to 70 ℃)
Relative Humidity 0% to 95%
Dimensions 7.32 in x 3.93 in x 1.96 in (186 mm x 100 mm x 50 mm)
Weight 0.52 lb (240 g)
