Overview

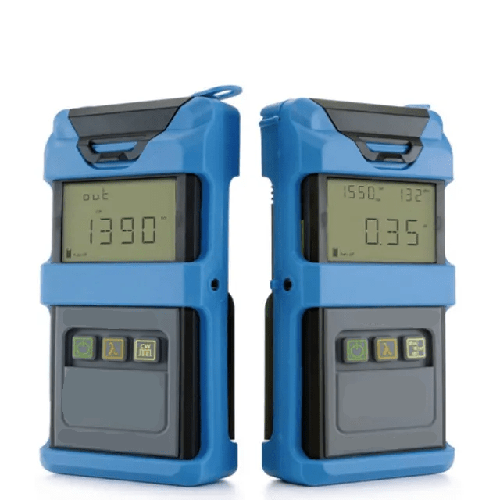

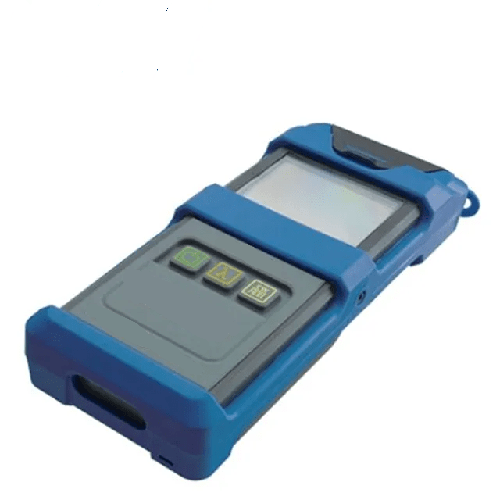

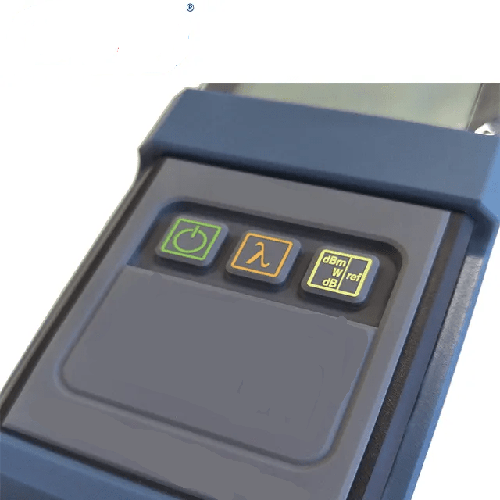

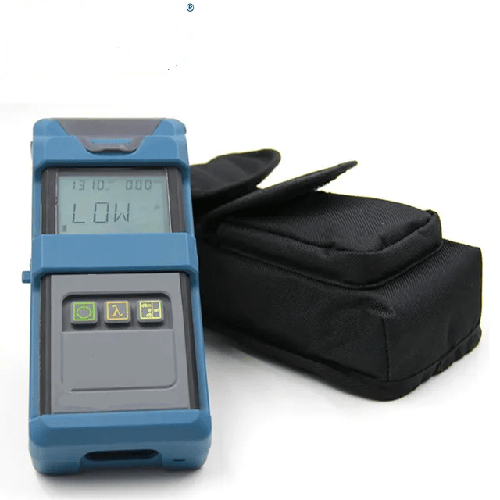

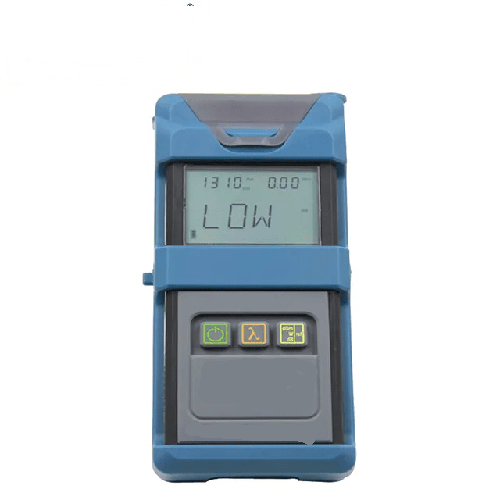

Emissions And Stack Power Meter is Dual Single Mode 1310 nm or 1550 nm With Rubber Boot, FC Adapter meets your basic day-to-day test requirements while helping you stay within budget. These worry-free, straightforward handheld testers enable accurate signal attenuation measurement during fiber-optic cable installation. It combines up to three wavelengths in a single configuration and offers high accuracy and referencing capabilities. They allow for the testing of passive optical networks (PONs) at the three primary wavelengths (1310 nm, 1490 nm and 1550 nm) used in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks and comply with the ITU-T G.983 and G.984 Recommendation series and the IEEE 802.3 ah standard. It provides excellent stability and high measurement accuracy for up to three single-mode wavelengths or two multimode wavelengths. It provides highly accurate power measurements and reference value-setting capabilities. It offers power autonomy of 300 hrs for reliable, long-lasting performance in the field resources.
Features
- User self-Calibration Function
- Rugged design
- Up to 300 hrs and 60 hrs continuous working with AA 1.5 V or Li Battery (9 V)
- Linear (mW) and nonlinear (dBm) indices are both shown
- Unique FC or SC or ST generic interface for easy conversion purposes
- Excellent power stability for reliable loss measurements
Technical Specifications
| Fiber Type | FTTH Single Mode or Multimode |
| Measuring Range | -50 dBm to +26 dBm (-60 dBm to +10 dBm optional) |
| Probe Type | InGaAs |
| Wavelength | 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm |
| Certification | CE, ROHS, ISO9001 |
| Central Wavelength | 1310 nm ± 20 nm, 850 nm ± 25 nm, 1490 nm ± 10 nm, 1550 nm ± 20 nm |
| Connector | SC or FC or ST |
| Resolution | 0.01 dB |
| Power Uncertainty | ± 5 % |
| Battery Life | More than 300 hrs |
| Operating Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to +70 °C) |
| Relative Humidity | 0 % to 95 % non-condensing |
| Model No | 23 BL, 12 C |
| Spectral Width | ≤ 5 nm, ≥ 40 nm or 120 nm |
| Output Power | ≥ -5 dBm, ≥ -24 dBm |
| Power Stability | ± 0.10 dB |
| Battery Life | 60 hrs, 45 hrs |
| Tone Generation | 270 Hz, 1 kHz, 2 kHz |
| Detector | InGaAs |
| Power Measure Range | -50 dBm to +26 dBm or -60 dBm to +10 dBm |
| Dimension | 7.44 in x 3.07 in x 1.46 in (189 mm x 78 mm x 37 mm) |
| Weight | 1.76 lb (800 g) |
