Features
- High-speed 10Gbps serial optical interface
- Operates at 1270/1330nm for bi-directional transmission
- Single LC connector for compact fiber connections
- Long-distance transmission up to 60 km (37.28 mi)
- Digital Diagnostic Monitoring (DDM) supported

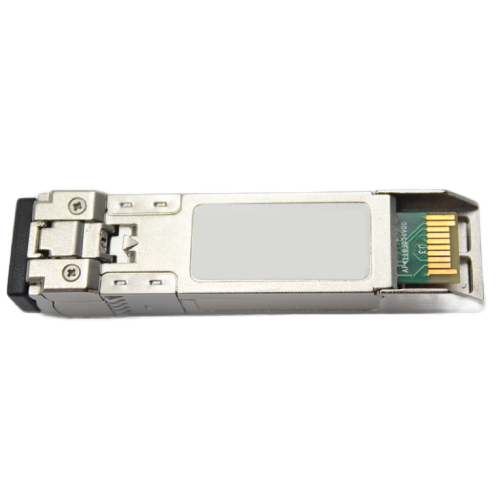

- Hot-pluggable SFP+ form factor for easy integration
- Power consumption below 1.5W for efficiency
- Operates with a single +3.3V power supply
- Excellent EMI and ESD protection with all-metal housing
Technical Specifications
| Specification | Details |
| Product Type | Fiber Optic Transceiver |
| Form Factor | SFP+ |
| Maximum Data Rate | 9.953 to 10.3125 Gbps |
| Wavelength | 1270/1330 nm |
| Connector Type | Single LC |
| Media Type | Single-Mode Fiber (SMF) |
| Maximum Distance | 37.28 mi (60 km) |
| Extinction Ratio | 9 dB |
| Power Supply | +3.3V |
