Overview

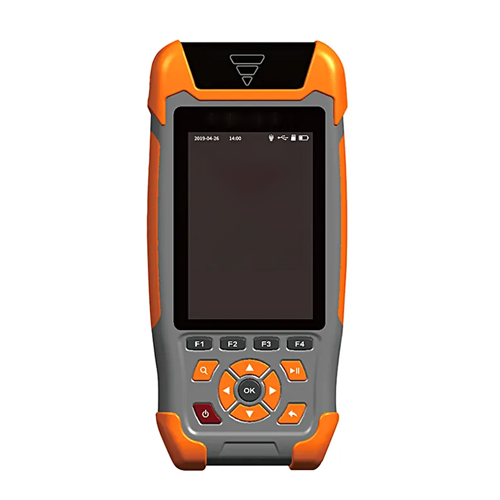

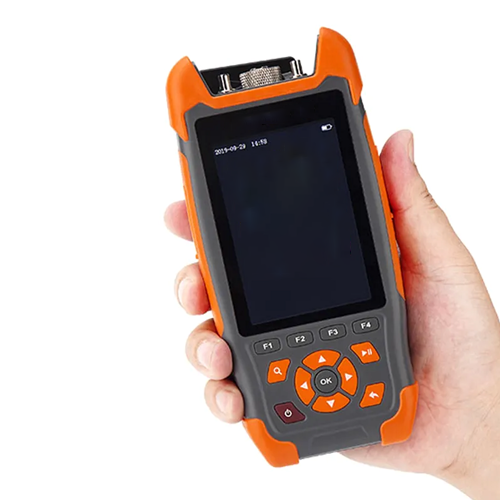

Emissions And Stack Multifunction Power Meter is a high-performance, multi-functional test instrument designed for the FTTx network. The product has a maximum resolution of 0.16 ft (0.05 m) and a minimum test area of 2.62 ft (0.8 m). This product integrates the OTDR, light source, optical power meter, and VFL functions in one body. It uses touch and fundamental dual operation modes. The product has a rich external interface and can be remotely controlled through an Ethernet interface or two different USB interfaces, external U disk, printer and PC data communication.
Features
- Dynamic range: 22 dB or 20 dB
- Less than 2.62 ft (0.8 m) short-term event dead zone, test fiber jumper easily
- Integrated 3.5 in color TFT LCD, key or touch dual operation
- Built-in stable light source function 1310 nm or 1550 nm
- Built-in optical power meter test function
- Built-in visible red fault location (VFL)
- Has a unique test result self-diagnosis function
- Battery low voltage alarm function
- With test file wireless transmission function.
Technical Specifications
| Test Wavelength | 1310 nm ± 20 nm |
| Types of Dynamic Range | G.652 single-mode fiber |
| Event Dead Zone | 9.84 ft (3 m) |
| Attenuation Dead Zone | 26.25 ft (8 m) |
| Measuring Range | 0.31 mi to 37.28 mi (500 m to 60 km) |
| Pulse Width | 3 ns to 10 µs |
| Ranging Accuracy | ± (3.28 ft (1 m) + sample interval + 0.005 % x distance) |
| Linearity | ± 0.2 dB |
| Sampling Points | 0.164 ft to 2.62 ft (0.05 m to 8 m) |
| Reflection Accuracy | ± 3 dB |
| Data Storage | Internal: 2600; External: expandable TF card |
| Laser Safety Level | Class II |
| File Format | SOR standard |
| Optical Interface | FC or UPC (Interchangeable SC, ST) |
| Wavelength Range | 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 1650 nm |
| Optical Connector | Universal joint FC or SC or ST |
| Measuring Range | -50 dBm to +26 dBm |
| Uncertainty | ± 5 % |
| Frequency Identification | CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz |
| Working Wavelength | 650 nm ± 20 nm |
| Calibration Wavelength | 1310 nm ± 20 nm |
| Laser Type | FP-LD |
| Output Power | ≥ -5 dBm |
| Output Power | ≥ 10 mW |
| Operating Mode | CW, 1 Hz, 2 Hz |
| Display Screen Type | 3.5 in color LCD, operation of the touch screen |
| Data Interface | Micro USB, scalable external storage |
| Power Supply | Polymer lithium battery: 3.7 V, 4000 mA; power adapter: 5 V DC |
| Battery Life | Standby > 20 hrs; measurement > 12 hours |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Relative Humidity | 0 % to 95 % (no condensation) |
| Volume | 6.81 in × 3.23 in × 1.46 in (173 mm × 82 mm × 37 mm) |
| Weight | 0.77 lb (350 g) |
