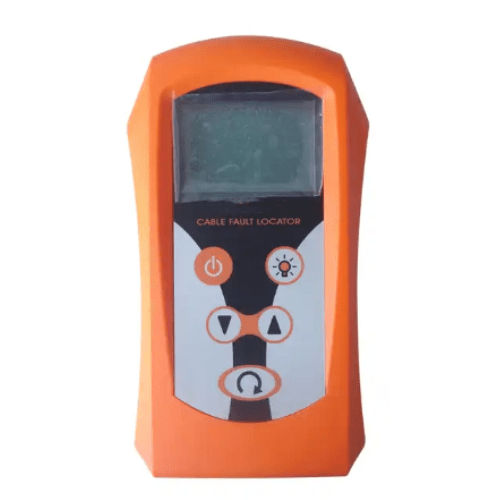

Visual Fault Detector Kit with Temp -4°F to 140°F 0.9% Accuracy - Emissions And Stack - Image 2

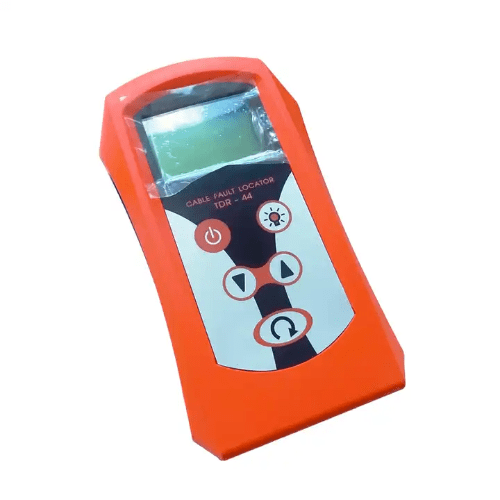

Visual Fault Detector Kit with Temp -4°F to 140°F 0.9% Accuracy - Emissions And Stack - Image 3

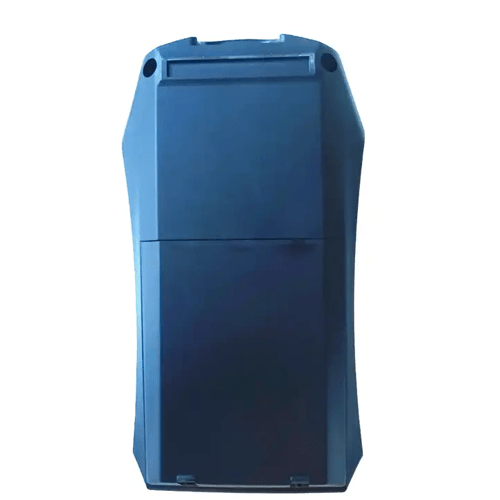

Visual Fault Detector Kit with Temp -4°F to 140°F 0.9% Accuracy - Emissions And Stack - Image 4

Visual Fault Detector Kit with Temp -4°F to 140°F 0.9% Accuracy – Emissions And Stack

Advanced OTDR featuring 32 dB dynamic range, 6-inch LCD screen, and high-resolution sampling for accurate fiber testing.

SKU: EMSVFL-180 Category:

Technical Specifications

Measure Range 100 m, 300 m, 1000 m, 3000m and Auto range (0.06 mi, 0.18 mi, 0.62 mi, 1.86 mi)
Accuracy  0.9% of Range
Resolution  1% of range
Gain  Auto Set across screen
Output Pulse  5V nominal in open circuit
Connectors Two 0.15 in (4mm) safety terminals
LCD Display 128 x 64 graphic LCD with backlight
Display View Area 1.73 in x 2.44 in (44 mm x 62 mm)
Power Supply Batteries 6 AA or nickel- cadmium cells
Battery Low Indication  6.5V nominal
Voltage Protection Withstands 250V AC or DC and Telephone ringing
Electrical Safety  IEC 61010-1 EN 60950
EMC EN 61326: 1997+A1+A2+A3
Operating Temperature -4 °F to 140 °F (-20 °C to 60 °C)
Humidity 93%
Case Dimension 8.26 in x 3.93 in x 1.96 in (210 mm x 100 mm x 50 mm)
Weight 0.12 lb (500 g)
