Overview

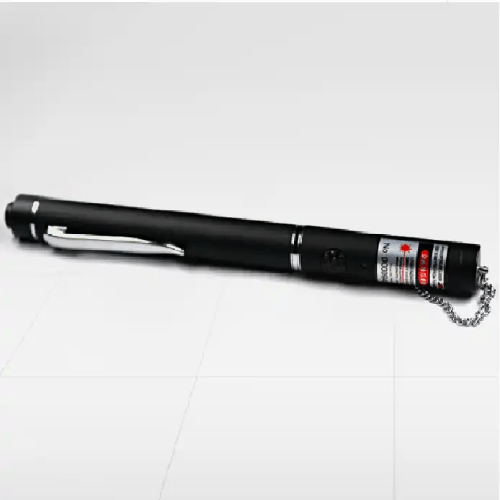

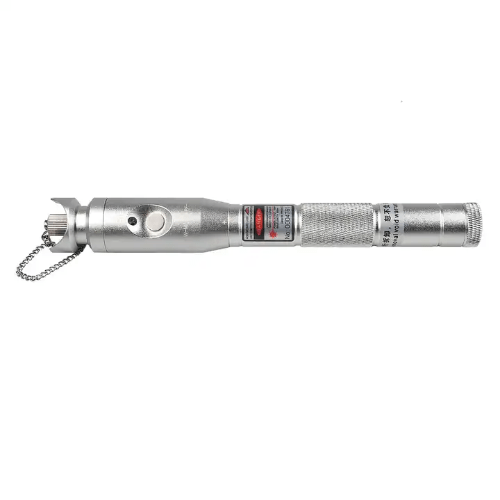

Emissions And Stack visual fault locator uses the DFB-LD as the emitting component. Driven by constant current source, the indicator can emit stable red laser. The product can be used to inspect fiber failure when they connect with optical interface and be inserted into single mode or multi-mode optical fiber. It is an indispensable tool in fiber project constructing, fiber network maintaining, optical component manufacture and research.
Features
- 09 in (2.5mm) universal connector
- Operates either in CW or Pulsed mode
- Long battery life (up to 60 hours)
- Drop-resistant and dust-proof design of laser head
- Laser case ground design prevents ESD damage
- Portable and rugged
- Easy to use
- Meets CE standards including EMC, EMI, ROHS
Technical Specifications
| Central Wavelength | 650 nm±10 nm |
| Emitter Type | BD-VFL-650-1S |
| Output Power | Optional choice for 5mw, 10mw,20mw,30mw,40mw |
| Optical Connector | 0.09 in (2.5mm) universal connector, for 0.04 in (1.25mm) connectors, FC (Male)-LC. (Female) convertor can be provided on request |
| Operating Model | Both CW and Pulse available |
| Pulse Frequency | 3Hz to 9Hz |
| Power Supply | 2AA alkaline batteries |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature | 40°F to 121°F (-40°C to 85°C) |
| Dimension | -FL-001 Φ23 X 183 |
| Weight | 0.379 lb (172g) without battery |
