Overview

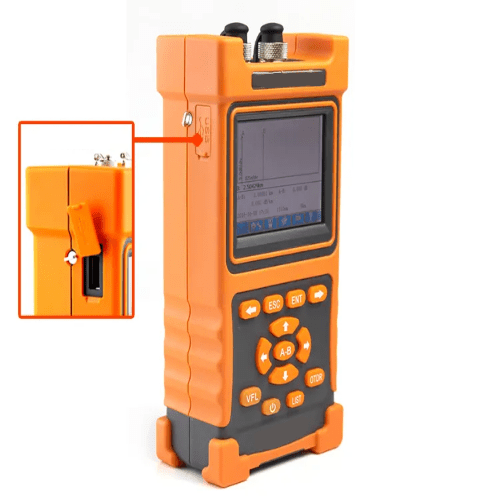

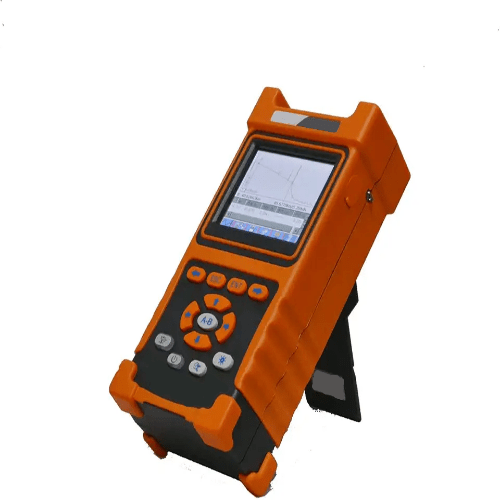

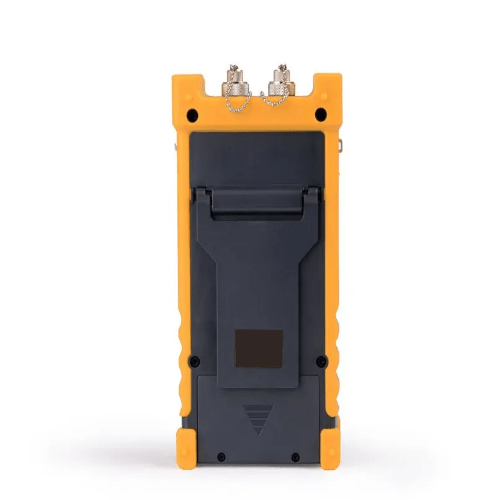

Emissions And Stack Visual Fault Locator is a handheld and intelligent measuring instrument. It adopts a 3.5 in (8.89 cm) color screen, double operation of keys and touch. It has a simple interface, highly optimized parameter configuration and max 32 dB dynamic range. It integrates Visual Fault Location and adopts intelligent power saving tube 10 hrs of super long standby to ensure the field test works efficiently. is mainly used to measure the length, loss and connection quality of optical fiber and cable. It is widely used in engineering construction, link maintenance tests, emergency repair, development and production measurement of optical fiber communication systems. It is mainly used in LAN, access network and FTTH.
Features
- 9 ft (1.5 m) event blind area
- Easy to test 16.4 ft (5 m) jumper
- Detection of online test
- Automatic alarm with light
- Batch processing of data
- Printing report forms
- Ultra wide temperature range of
- Standard SOR file output format
- Key touch screen dual operation mode
- 10 hrs long endurance
Technical Specifications
| Wavelength | 1310 nm or 1550 nm±20 nm |
| Dynamic Range | 32 dB or 30 dB |
| Event Blind Zone | 4.92 ft (1.5 m) |
| ATT Blind Zone | 26.2 ft (8 m) |
| Test Range | 0.31 mi or 0.62 mi or 1.24 mi or 2.48 mi or 4.97 mi or 9.94 mi or 19.8 mi or 39.7 mi or 79.5 mi (500 m or 1 km or 2 km or 4 km or 8 km or 16 km or 32 km or 64 km or 128 km) |
| Pulse Width | 5 ns or 30 ns or 50 ns or 100 ns or 275 ns or 320 ns or 550 ns or 1000 ns or 5000 ns or 10000 ns |
| Ranging Accuracy | ±（3.2 ft (1 m) +Sample interval+0.005％×Test distance） |
| Linearity | ±0.5 dB or dB |
| Sample Points | 16 k to 128 k |
| Sample Resolution | 0.16 ft to 52.4 ft (0.05 m to 16 m) |
| Reflection accuracy | ±4 dB |
| Date Storage | Internal: ≤1000 curves; External: 4 G bit |
| Refresh Rate | 3 Hz (Typ.) |
| File Format | SOR Standard File Format |
| Loss Analysis | 4 point method or 5 point method |
| Laser Safety Level | Class Ⅱ |

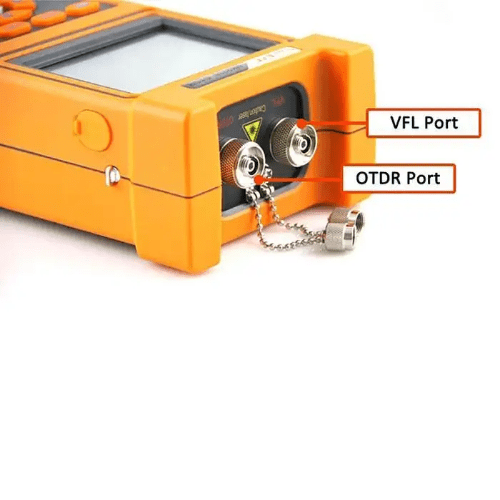

| Connector | FC or UPC（Interchangeable SC、ST） |
| Wavelength | 650 nm ± 20 nm |
| Output Power | <2 mW |
| Mode | CW or 1 Hz or 2Hz |
| Connector | FC or SC or ST |
| Display | 3.5 in (8.89 cm) color LCD + Touch Screen |

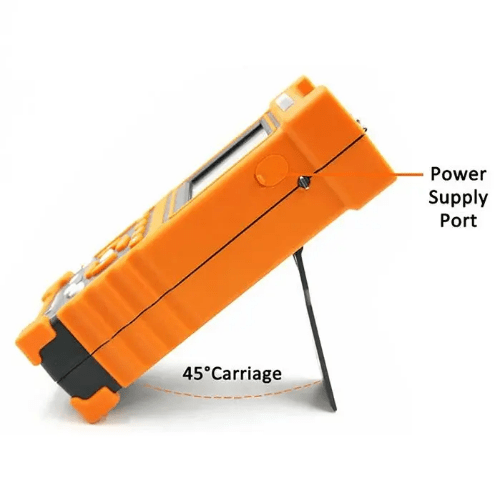

| Power Supply | AC or DC Adapter input 100 V to 200 V, 50 Hz or 60 Hz,0.6 A Output 12 V to 19 V,1.5 A, Li Battery: 7.4 V, 5200 mAh |
| Battery Working Hours | >10 hrs |
| Operating Temperature | 14 °F to 122 °F (-10 ℃ to +50 ℃)-40 °F to 158 °F (-40 °C to 70 °C) |
| Relative Humidity | 0 % to 95 % non condensing |
| Weight | <2.20 lb (1 kg) |
| Size | 8.1 in x 4.3 in x 2.2 in (208 mm x 110 mm x 56 mm) |
