Overview

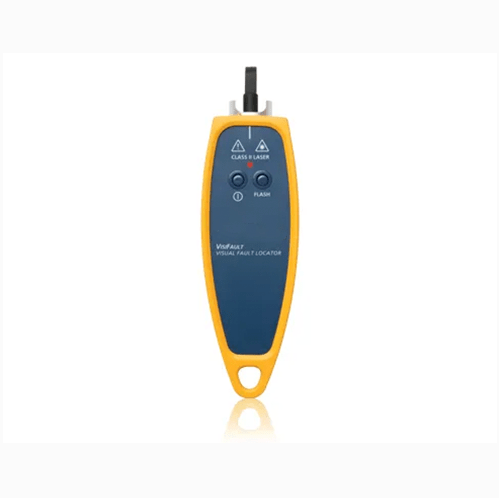

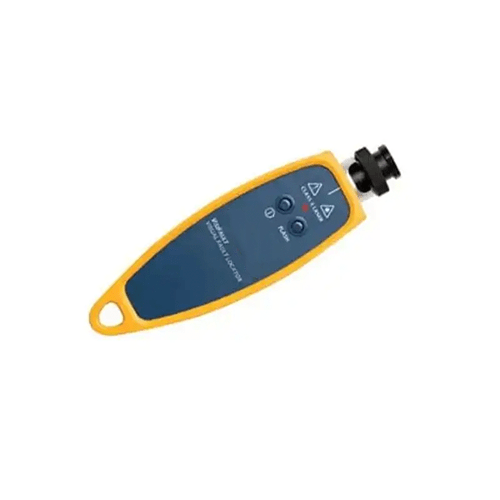

Emissions And Stack visual fault locators, with the ability to locate fibers and verify cable continuity and polarity, this fault locator is the ideal accessory for helping to find breaks in cables, connectors, and splices. Featuring continuous and flashing modes, this locator Supports 0.09 in and 0.04 in (2.5 mm and 1.25 mm) SFF connectors.
Features
- Locates faults including tight bends, breaks and bad connectors
- Accelerates end-to-end fiber checks
- Easily verifies polarity and identifies fibers

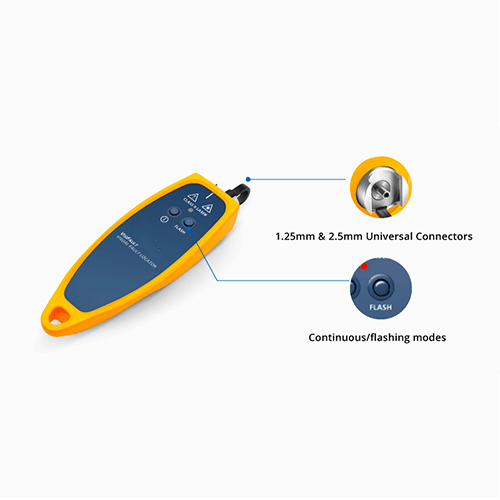

- Features continuous and flashing modes
- Ergonomic case survives drops, impacts and vibrations
- Supports 0.09 in and 0.04 in (2.5 mm and 1.25 mm) SFF connectors
- Over 80 hrs of battery life with two AA batteries
- Verify and Locate Faults
- Easy to Use
- Rugged Construction
Technical Specifications
| Fiber Compatibility | Multimode and Single mode |
| Wavelength | 650 nm (visible wavelength) |
| Laser Safety Rating | Class II |
| Output Power | <1.3 mW |
| Output Modes | Continuous (steady) and flashing (2-3Hz pulsed) |
| Range | 1.86 mi (3 km) multimode,2.48 mi (4 km) single mode |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Relative Humidity | 95% 50 °F to 95 °F (10 °C to 35 °C) |
| Vibration | Random, 2g, 5 Hz to 500 Hz |
| Shock | 3.28 ft (1 m) drop onto all corners and face |
| Altitude | 1.86 mi (3000 m) |
| Adapter | 0.09 in (2.5 mm) universal |
| Battery Type | 2 x AA |
| Dimensions | 6.2 in x 2.0 in x 1.3 in (157 mm x 52 mm x 37 mm) |
| Weight (including batteries) | 0.39 lb (180 g) |
