Overview

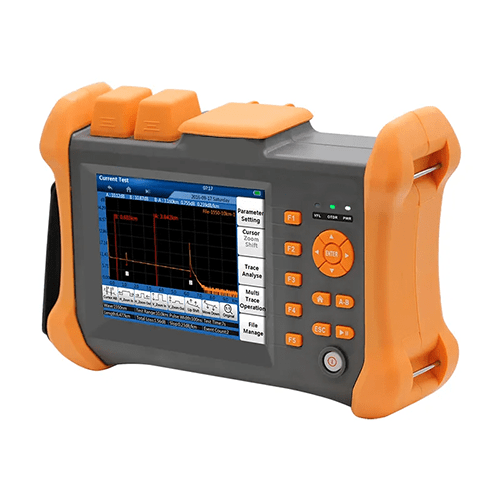

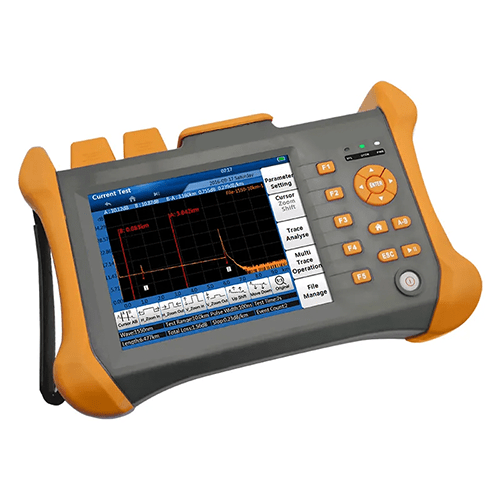

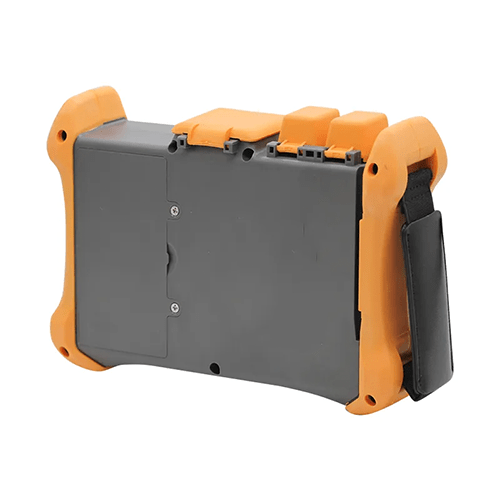

Emissions And Stack visual fault locators are an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countryside’s, the measurement of optical network becomes short and dispersed; it’s specially designed for that kind of application, economically, and having outstanding performance.
Features
- 5.6 in (14.22 cm) outdoor-enhanced touchscreen
- 4 V, 4.4 Ah Lithium battery
- Event Dead zone as lower as 4.92 ft (1.5 m)
- Combined multi-dynamic range and wavelengths
- Muti measurement mode
- Support Touching LCD and pressing keys
- Warning function could prevent OTDR module from being damaged by optical signal in fiber
- Realtime measuring function
- Convenient to monitor the splicing process
- Integrated 10 mw Visual Fault Locator
- Support English or Chinese input
- Adopts friendly input interface
- Totally simulate the computer keyboard input
- Integrated with 8 GB internal memory
- More than 80,000 groups curve storage
- PC remote access and control function is available
Technical Specifications
| Pulse Width | (SM 1310 nm or 1550 nm) 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs : (MM 850 nm or 1300 nm) 5 ns，10 ns，20 ns，50 ns，100 ns，500 ns， 1 us |
| Distance Range | (SM 1310 NM or 1550 NM) Dead zone test, 0.8 mi, 1.55 mi, 3.1 mi, 6.21 mi, 12.42 mi, 24.84 mi, 49.7 mi, 74.56 mi (1.3 km, 2.5 km, 5.0 km, 10 km, 20 km,40 km, 80 km,120 km) (MM 850 nm or 1300 nm):0.06 mi，0.24 mi，0.8 mi，1.55 mi，3.1 mi，6.21 mi，12.42 mi, 24.84 mi, 49.7 mi (96.5 m, 386.24 m, 1.3 km, 2.5 km, 5.0 km, 10 km, 20 km,40 km, 80 km) |
| Sampling Resolution | Minimum 1.96 in (0.05 m) |
| Sampling Point | 128,000 |
| Linearity | ≤0.05 dB, dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.39 in (0.01 m) |
| Distance Accuracy | ± (3.28 ft (1 m) + measuring distance × 3 × 10 + sampling resolution） |
| Data Storage | 20000 groups of curves |
| VFL | 10 mW, CW, 2 Hz |

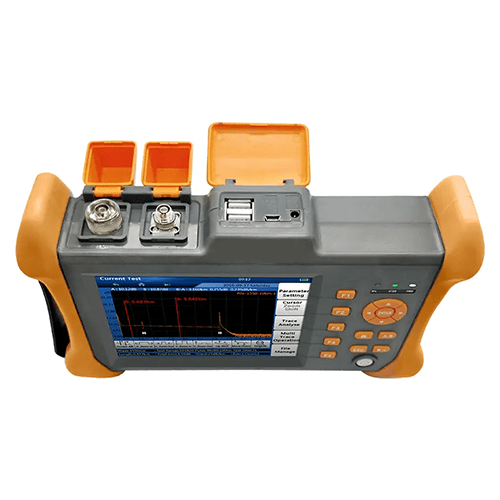

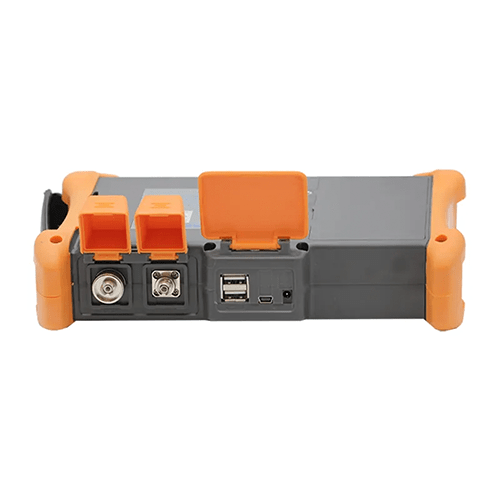

| Interface | 3 USB port (Type A×2, Type B×1) |

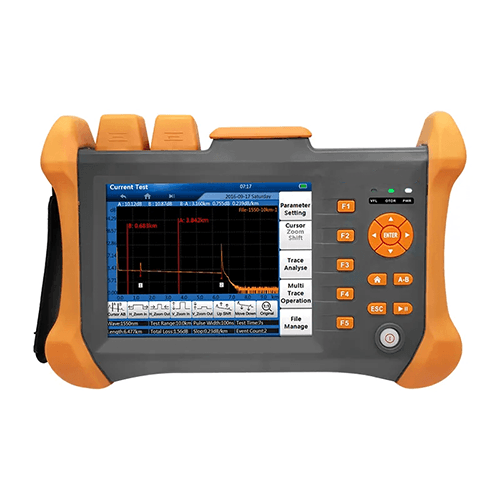

| Display | 5.6 in (14.22 cm) TFT-LCD, Touching screen |
| Battery | 7.4 V and 4.4 Ah lithium battery, support 8 hours continuous working |
| Working conditions | Working Temp: 14 °F to 122 °F (-10 ℃ to +50 ℃);Storage Temp: -4 °F to 158 °F (-20 ℃ to +70 ℃);
Humidity ：≤95% (non-dew) |
| Dimensions | 9.96 in x 6.6 in x 2.89 in (253 mm ×168 mm ×73.5 mm) |
| Weight | 3.3 lb (1.5 kg) (include battery) |
