Overview

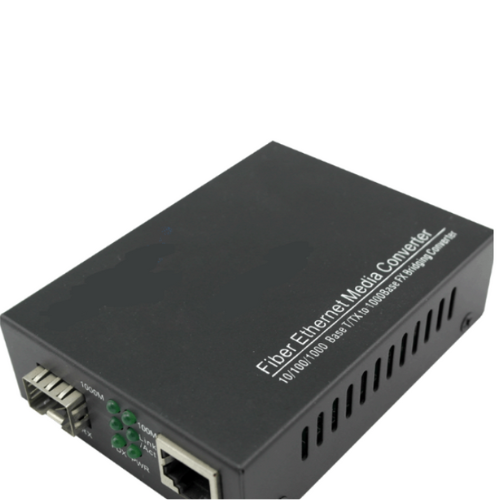

Emissions And Stack 1000m gigabit 1 sfp slot with 1 rj45 slot media converter are designed to meet the massive needs for Gigabit network deployment and able to extend a copper based Gigabit network via fiber cable to a maximum distance up to 180KM(depend on SFP). This series converters are fully compliant with IEEE802.3z & 802.3ab standards. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
Features
- 1000Base-TX to 1000BASE-FX Converter
- Standard : IEEE 802.3z & 802.3ab
- Interface: 1 x RJ-45 connector / 1 x SFP Slot
- MDI/MDIX Auto-Crossover supported
- LED: Power , DUP,FP-LINK,RX,1000,TX
- Plug-and-Play installation
- Support Jumbo Frame (64-9216 Byte)
- Support Voltage Monitor
- Support LFP function
Technical Specifications
| Standard Protocol | IEEE802.3u,10/100/1000Base-T,1000Base-SX/LX,IEEE802.3ah, IEEE802.3z/ab |
| Flow control | IEEE802.3x port flow control and back pressure control |
| Transmission speed | 1000M auto-negotiation |
| Transmission mode | Full-duplex/semi duplex(auto-negotiation) |
| Conversion mode | Storage transmission |
| MAC address | VLAN 4K |
| Buffer space | 128KB |
| Packet length | Storage transmission:9728Bytes,straight-through,infinite. |
| Time-delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| Power supply | Outside: 5V DC 1A ; Build-in: 110~265V AC 48V DC |
| Power dissipation | <2.5W |
| Interface | Electric port: RJ45,Fiber port: LC(SFP) |
| Twisted-pair cable | Cat.5 UTP cable |
| Multimode fiber | 50/125, 62.5/125um(depend on SFP) |
| Single mode fiber | 9/125, 10/125um(depend on SFP) |
| Wavelength | 850nm/1310nm/1550nm(depend on SFP) |
| 4)Cat.5 twisted-pair | 100m |
| Operating temperature | 0~60℃ |
| Storage temperature | -20~70℃ |
| Humidity | 5%~90% (no condensation) |
