| Optical Interface |
Two GigE Ports |
|
1000Base-SX |
1000Base-ZX |
| Wavelength(nm) |
850 |
1550 |
| Laser/Connector/Transceivers type |
VCSEL/LC/SFP |
DFB/LC/SF |
| Laser/Connector/Transceivers type |
VCSEL/LC/SFP, FP/LC/SFP, DFB/LC/SFP |

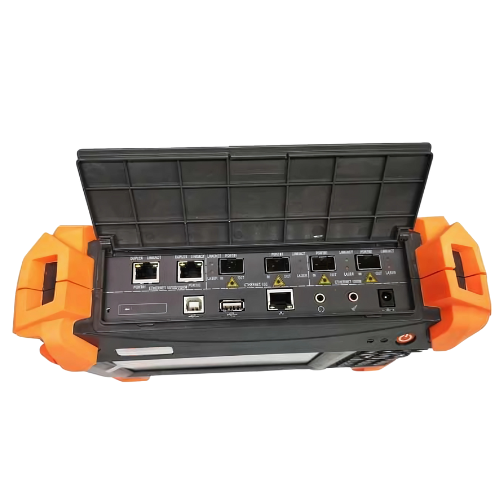

| Electrical Interfaces |
Two Ports: 10/100BaseT Half/Full Duplex, 1000BaseT Full Duplex |
| Connector |
RJ-45 |
| SFP+ Optical Interface (10G) |
Two 10GigE Ports |
| Wavelength (nm) (10G) |
850, 1310, 1550 |
| Laser/Connector/Transceivers type (10G) |
VCSEL/LC/SFP+, DFB/LC/SFP+, CML/LC/SFP+ |
| Testing Items |
Y.1564, RFC2544, BERT, SDT, Multi-stream Generation, VLAN Stacking, IPv6 Test |
| Y.1564 |
Service configuration and performance test |
| BERT |
Up to layer 4, with/without VLAN Q-in-Q |
| Power Supply |
AC/DC Adapter; Input 100 – 240V AC, 50/60Hz, 2A(Max.); Output 24V DC 90W |
| Battery |
Rechargeable Lithium battery, 4 hours continuous operation |
| Interface |
USB 2.0 port, RJ-45 LAN |
| IPv6 Test |
BERT, RFC2544, Traffic generation, Background traffic, Ping, Trace route |
| Dimension |
11.1 in x 7.32 in x 2.95 in (28.2 x 18.6 x 7.5 cm) |
| Weight |
6.39 lb (2.9 kg) |
