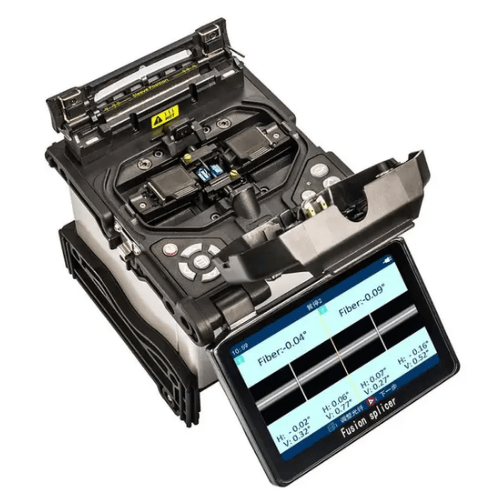

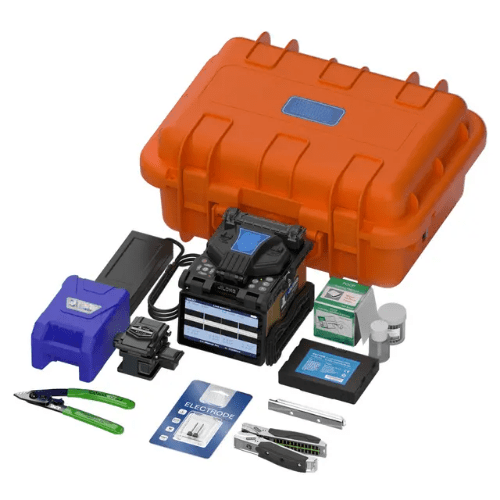

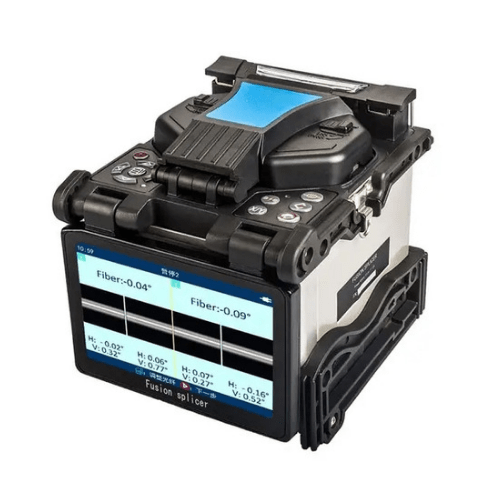

| Applicable fibers |
SM MM DS NZDS |
| Fiber diameter |
Cladding diameter: 80 um to 150 um;Coating diameter: 100 um to 1000 um |
| Fiber count |
Single |
| Fiber cleaved length |
0.31 in to 0.63 in (8 mm to 16 mm)(Coating diameter: 250 um) |
| Actual average splice loss |
0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Typical splicing time |
Typical 9 s (standard SM fiber) |
| Return loss |
>60 dB |
| Splicing mode |
Auto Calibrate Normal Special |

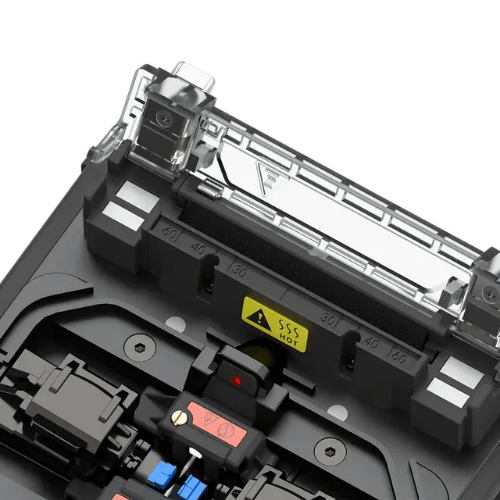

| Fiber aligning method |
Meticulous. Core. Clad. Manual |
| Splicing program |
100(user mode), 53(factory mode) |
| Tube heating program |
40 (user mode), 9(factory mode) |
| Tube typical heating time |
Typical 16 s to 25 s |
| Protection sleeve length |
10000 results, 24 parameter per result, 100 set of images |
| Storage of splice result |
2.36 in (60 mm), 1.57 in (40 mm) |
| Fiber image magnification |
120 x (X or Y view), 60 x (X and Y view) |
| Battery capacity |
Typical 300 cycles (splice or tube heat with inner Li battery, 5200 mAH) |

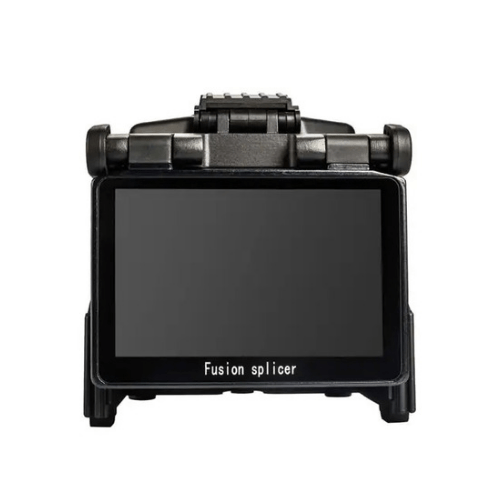

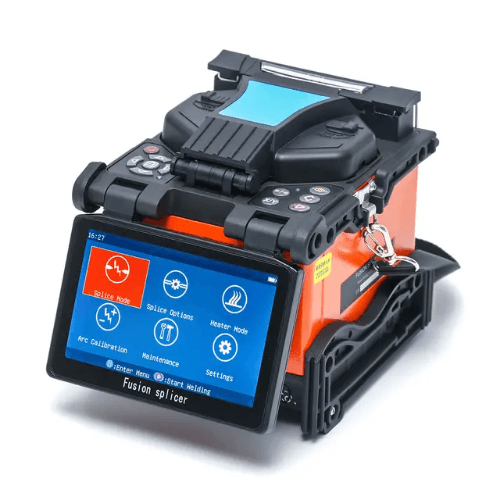

| Monitor |
4.3 in (10.92 cm) color LCD monitor |
| Tension test |
2 N |
| Electrode life |
2500 |
| Terminal |
USB |
| Power supply |
AC 100 V to 240 V with AC adapterDC 13.5 V Inner Li battery (5200 mAH) |
| Operating condition |
0 mi to 3.011 mi (0 m to 5000 m) above sea level,14 ° F to 122 ° F (-10 °C to 50°C) Max wind velocity of 15 m/s |
| Dimension |
5.24 in x 6.3 in x 5.67 in (133 mm x 160 mm × 144 mm) |
| Weight |
3.64 lb (1.65 Kg) excluding battery4.04 lb (2 Kg) including battery |
