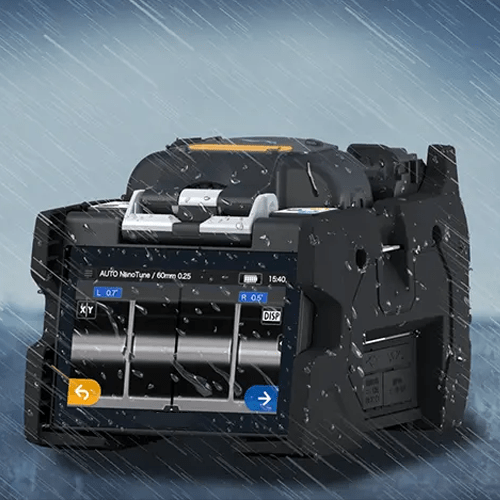

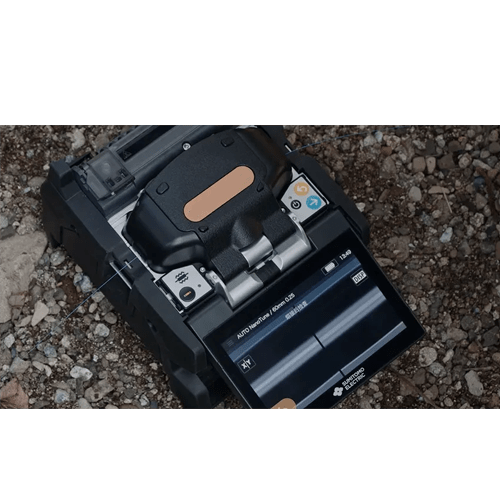

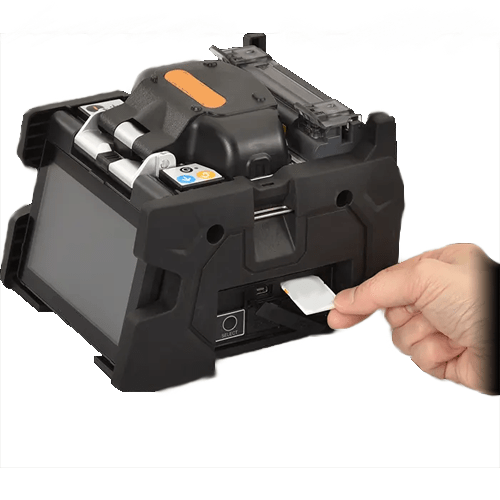

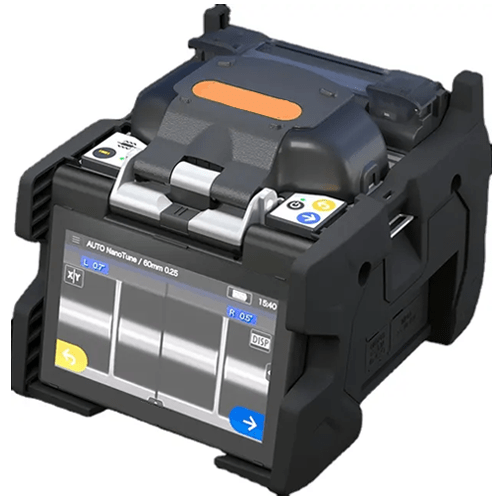

Cable Fusion Splicer with 6s Weld Time and ≥60 dB return loss – Emissions And Stack

This cable fusion splicer has tension test of 2 N, weld time of 6 s, return loss of ≥60 dB and average splice of 0.02 dB (SM) and 0.01 dB (MM).

SKU: EMSFFS-145 Category:

Technical Specifications

Tension Test 2.0 N (200 gf) (Standard)
Monitor 5 in (12.7 cm) high resolution colourful
Average Splice 0.02 dB (SM), 0.01 dB (MM), 0.04 dB
Storage Of Splice 6,000 groups of latest splices
Protection Sleeve 0.7 in, 1.5 in, 2.3 in (20 mm, 40 mm, 60 mm)
Return Loss ≥60 dB
Weld Time 6 s
Size 5.03 in x 6.06 in x 5.11 in (128 mm x 154 mm x 130 mm)
Weight 4.18 lb (1.9 kg) (without Battery), 4.6 lb (2.1 kg) (with Battery)
