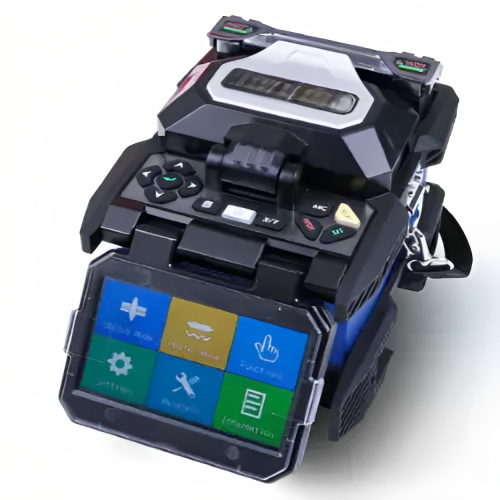

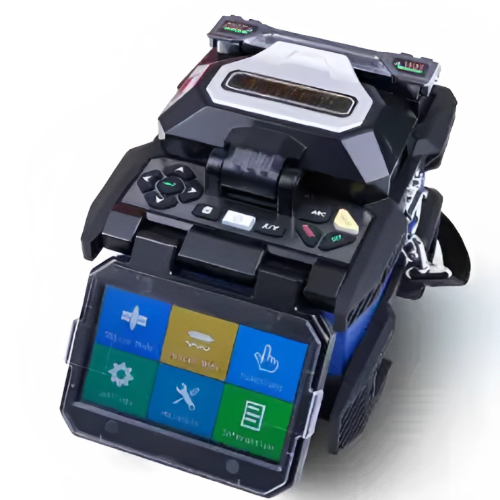

Overview
Emissions And Stack Fusion Splicer Fiber Optic Splicing Machine is mainly used in optical communication for the construction and maintenance of optical cable, so it is also called fiber optic fuse machine. The general working principle is to use high voltage arc to melt the sections of two optical fibers, and at the same time use high precision motion mechanism to gently push the two fibers into one fiber, so as to realize the coupling of the optical fiber mode field.
Features
- Real fiber core visualization technology
- Take only 8 seconds for splicing, 25 seconds for heating
- Average splicing loss: 0.01 dB
- Up to 330 times of continuous splices and heat
- HD CMOS sensor ad HD aligner for double separate optical fibers
- Splice 0.25 mm or 0.9 mm or 3.0 mm or flat mode
- 5.7 huge Color LCD monitor
- Ideal for both indoor and outdoor splicing
- Electrode life: 4,000 times splicing
- Attached night high
Technical specifications
| Applicable Method | Precis core alignment and cladding alignment |
| Return Loss | Better than 60 dB |
| Control Technology | Real-Time control and calibration of fusion ARC |
| Heating Time | 18 s |
| Fusion Splicing Time | 7 s |
| OEM | Welcome |
| Working Environment | Temperature: 50 °F to 122 °F (10 °C to 50 °C)
Humidity: 0 to 95 % RH, height above sea-level 39.37 in to 236220.5 in (1 m to 6000 m) |
| Pulling Force Test | 1.96 to 2.25 N |
| Thermal Shrinkage Tube | 2.36 in (60 mm), 1.57 in (40 mm) and series of thermal shrink age tubes |
| Size | 13.77 in x 15.74 in 14.96 in (350 mm x 400 mm x 380 mm) |
| Weight | 3.505 lb (1.59 KG) host engine. 0.816 lb (0.37 KG) battery |
