Overview

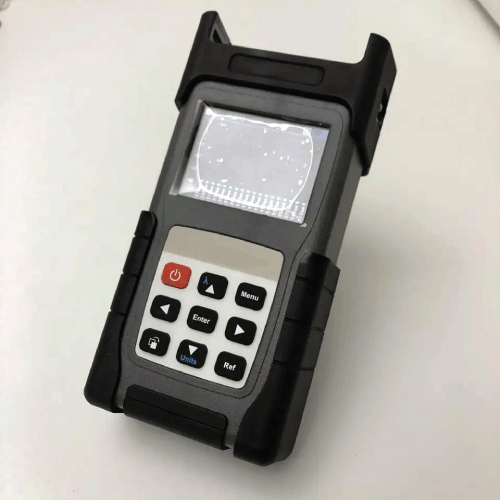

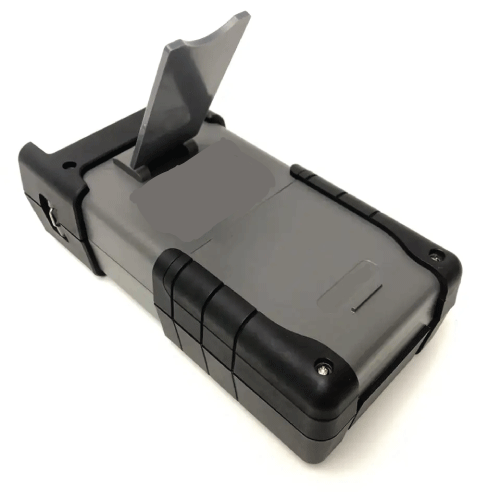

Emissions And Stack Digital Power Meter is specially designed for the system, covering wavelengths from 1270 nm to 1610 nm. It measures and monitors the optical power and attenuation value of 18 channels from wavelength 1270 nm to 1610 nm wavelength. All calibrated wavelengths will be tested simultaneously, and all test results will show on the LCD screen. This power meter features simple operation, quick response and high measurement accuracy, making it an ideal system installation and maintenance tester.
Features
- Simultaneously test and show 18 wavelengths
- Friendly interface and easy operation
- Save and upload test results via USB port
- Modulation identification
- 1000 records
- Columnar graphics or list mode to show test data
- Color TFT-LCD display, high resolution 320 x 240
- Built-in clock and can edit test fiber number
- Quick start operation, requiring no warm-up time
- Lightweight
Technical Specifications
| Wavelength Range | 1270 nm to 1610 nm |
| Number of Channels | 18 |
| Wavelength Resolution | 20 nm |
| Measuring Wavelengths | 1270 nm, 1290 nm, 1310 nm, 1330 nm, 1350 nm, 1370 nm, 1390 nm, 1410 nm, 1430 nm, 1450 nm, 1470 nm, 1490 nm, 1510 nm, 1530 nm, 1550 nm, 1570 nm, 1590 nm, 1610 nm |
| Dynamic Range | +10 dBm to -40 dBm |
| Resolution | 0.01 dB |
| Optical Interface | FC or PC (FC, LC, ST available) |
| Operating Temperature | 14 °F to 140 °F (-10 ℃ to +60 ℃) |
| Power Supply | Rechargeable Battery or AC power adapter |
| Time of Operating | 10 hrs |
| Dimension | 86.61 in x 43.31 in x 27.56 in (220 cm x 110 cm x 70 cm) |
| Weight | 1.87 lb (850 g) |
