Overview

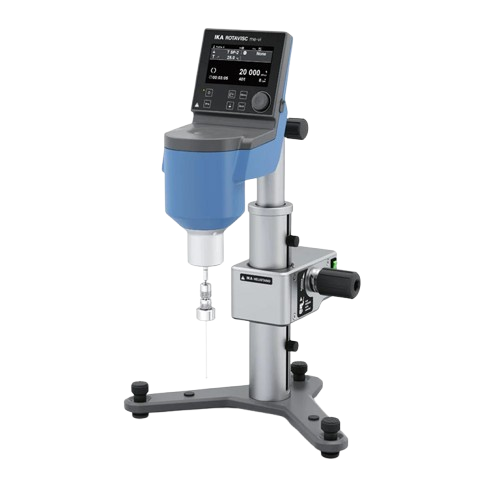

Emissions And Stack Digital Rotational Viscometer is a high-precision instrument used to determine the viscosity of liquids in all areas of application. The device measures in different viscosity ranges and delivers rapid and accurate results. This product is easy to operate with its intuitive menu guidance on a TFT display. The instrument has a measurement accuracy of plus or minus 1% of the measuring range for both Newtonian and non-Newtonian fluids.
Features
- Generous 4.3 in TFT display allows for intuitive menu guidance
- A digital spirit level supports correct setup of the start-up condition
- A simple ramp function simplifies repetitive tasks
- Can be used for Newtonian and non-Newtonian fluids
- Offers stepless speed adjustment
Technical Specifications
| Power Supply (Mains) | 100 to 240 V, 50/60 Hz |
| Power Input | 24 W (0.06 W standby) |
| Frequency | 50/60 Hz |
| Viscosity Measuring Range | 1 to 6,000,000 mPa·s |
| Accuracy | ±1% FSR |
| Repeatability | 0.2 |
| Torsion Spring | 0.00673 |
| Spindle Series | SP Set-1 |
| Guard Rail | lo-vi |
| Overload Protection | Yes |
| Joint Type | Screw-on or plug-in |
| Rotation Direction | Right |
| Speed Range | 0.01 to 200 rpm |
| Speed Accuracy | ±0.01 |
| Torque Measurement & Display | Yes |
| Timer Function | 0.017 to 6000 min |
| Operating Modes | Timer & Continuous |
| Calibration Option | Yes |
| Display | TFT (Speed, Timer, Temp, Graphs) |
| Graph Function | Yes |
| Beaker Volume | 600 ml |
| Stirrer | Max 61, Ø 56 mm (2.20 in) |
| Stand Type | Rotastand |
| Support Rod Diameter | 12 mm (0.47 in) |
| Telescope Stand Stroke | 200 mm (7.87 in) |
| Dynamic Load | 5 |
| Density Range | Up to 9999 |
| Interfaces | RS232, Micro-USB |
| Protection Class | IP40 (DIN EN 60529) |
| Operating Temperature | 41 °F to 95 °F (5 °C to 35 °C) |
| Temperature Resolution | 0.1 |
| External Temperature Sensor | PT100 |
| Dimensions | 13.82 in × 24.37 in × 14.65 in (351 mm × 619 mm × 372 mm) |
| Weight | 11.02 lb (5 kg) |
