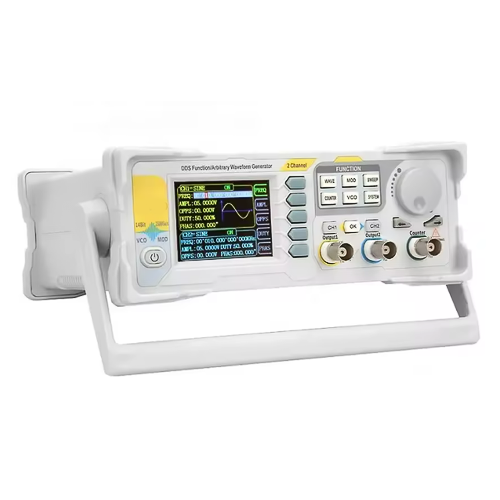

Features
- Dual-channel DDS signal generation with up to 60MHz frequency range
- 4-inch TFT color LCD for clear visualization and easy operation
- Supports multiple modulation types: AM, FM, PM, ASK, FSK, and PSK
- High sampling rate of 250MSa/s and 14-bit vertical resolution
- Includes a 100MHz frequency counter with accurate measurements
- Output short-circuit protection for enhanced durability
Technical Specification
| Display | 2.4-inch TFT color LCD |
| Frequency Range | Sine Wave: up to 60MHzSquare Wave: up to 25MHz
Other Waves: up to 10MHz |
| Minimum Frequency Resolution | 1μHz |
| Minimum Pulse Width | 20ns |
| Waveform Length | 8192 points (8K) × 14 bits |
| Sampling Rate | 250MSa/s |
| Vertical Resolution | 14 bits |
| Amplitude Range (Peak-to-Peak) | ≤ 5MHz: 1mVpp to 24Vpp
5MHz to 10MHz: 1mVpp to 20Vpp 10MHz to 20MHz: 1mVpp to 10Vpp > 20MHz: 1mVpp to 5Vpp |
| Amplitude Resolution | 1mV |
| Output Impedance | 50Ω ±10% |
| Bias Adjustment Range | ≤20MHz: ±12V
>20MHz: ±2.5V |
| Minimum Bias Resolution | 1mV |
| Phase Adjustment Range | 0° to 359.99° |
| Minimum Phase Resolution | 0.01° |
| Modulation Types | AM, FM, PM, ASK, FSK, PSK |
| Scanning Functions | Frequency, Amplitude, Offset, and Duty Cycle.
Linear and Logarithmic modes. Scan time: 0.01s to 9999.99s |
| VCO Function | Supports voltage-controlled frequency, amplitude, offset, duty cycle, and PWM |
| Frequency Counter | Measures frequency, period, pulse width, and duty cycle (up to 100MHz) |
| Output Protection | Short-circuit protection (up to 60 seconds) |
| Interface | USB to serial, 115200 bps |
| Power Supply | AC 100V to 240V |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | < 80% |
| Dimensions | 6.1 in × 4.7 in × 1.8 in (155 mm × 120 mm × 45 mm) |
| Weight | Approx. 2.2 lbs (1 kg) |
