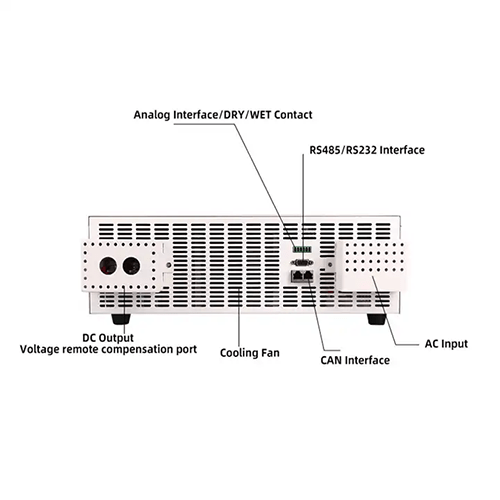

Features
- DC Output
- Voltage remote compensation port
- Cooling Fan
- RS485 or RS232 Interface
- CAN Interface
- Analog Interface or DRY or WET Contact
- AC Input
Technical Specifications
| Voltage | Three phases: 380 V AC ±10% |
| Frequency | 50 Hz to 60 HZ |
| DC: Voltage | 0 V to 250 V |
| Accuracy | <Rating x 0.1% |
| Load Regulation | <Rating x 0.05% |
| Line Regulation ±10% | <Rating x 0.05% |
| Regulation 10 To 100% | <5 ms |
| Rise Time 10 To 90% | <10 ms |
| Voltage Compensation | Take the smaller value of 5% of the rated voltage or 5 V |
| Ripple | <Rating x 0.1% |
| DC: Current | 0 A to 40 A |
| Accuracy | <Rating x0.15% |
| Load Regulation | <Rating x 0.15% |
| Line Regulation ±10% | <Rating x 0.05% |
| DC: Power | 0 W to 8000 W |
| Accuracy | <Rating x 0.3% |
| AC Input to Enclosure | 1500 V DC |
| AC Input to DC Output | 1500 V DC |
| DC Output to Enclosure | 500 V DC |
| Cooling | Air cooling |
| Operation Temperature | 23 °F to 113 °F (-5 ℃ to 45 ℃) |
| Storage Temperature | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Humidity | <80%No condensation |
