Overview

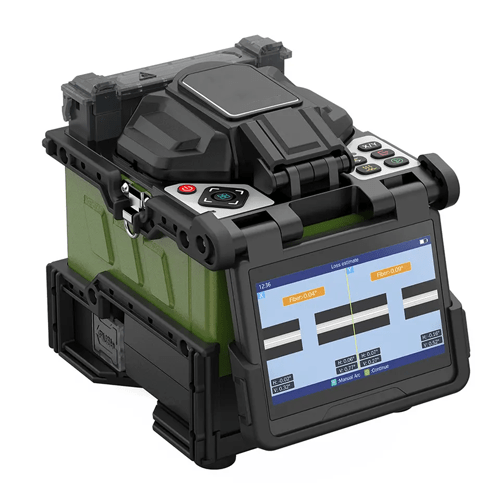

Emissions And Stack Alignment Splicing Machine splicer is a three in one fixture machine with six motors, which could do 6S fast splicing, 16S rapid heating, 5000 times electrode service life. The average splice loss is 0.01db with 7800mAh battery which could achieve a high performance of splicing on practice.
Technical specifications
| Alignment method | Core to core alignment |
| Applicable fiber type | SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Fiber type | Replaceable universal fixture. SOC fixture (optional) |
| Fiber diameter | Cladding diameter: 80 µm to 150 µm, Coating diameter: 100 µm to 1000 µm |
| Cutting length | 8 mm to 16 mm |
| Splicing mode | Maximum 128 groups |
| Splicing loss | SM: 0.02 dB / MM: 0.01 dB / DS: 0.04 dB / NZDS: 0.04 dB / G.657: 0.02 dB * 1 |
| Return loss | >>60 dB |
| Splicing time | 6 seconds (SM G652 QUICK mode) |
| Loss estimation | Yes |
| Heating time | 16 sec (SM G652 250 µm 40 mm heat shrink tube, based on quick mode) User adjustable |
| Applicable heat shrinkable length | 20 mm, 30 mm, 40 mm, 50 mm, 60 mm |
| Heating mode | Maximum 32 groups |
| Battery capacity | 7800 mAh lithium battery, each cycle supports 400 times splicing and heating *2 |
| Electrode life | About 5000 times discharges 3 |
| Automatic discharge calibration | Automatically calibrate according to ambient temperature and air pressure changes |
| Result storage | 10,000 sets of splice data, or 2,000 sets of splice images |
| Tension testing | 1.96 N to 2.25 N |
| Operating conditions | Altitude: 0 m to 5000 m, Relative humidity: 0 % to 95 %, -4 °F to 122 °F (-20 °C to 50 °C) Maximum wind speed: 15 m/sec |
| Storage condition | Relative humidity: 0 % to 95 %, -4 °F to 122 °F (-20 °C to 50 °C) temperature |
| Display screen | 4.3 in, high-definition LCD display |
| Zoom in and display | X, Y, XY, X/Y: 320 times magnification |
| Weight | 3.79 lb (1.72 kg) without battery / 4.96 lb(2.25 kg) with battery |
| Size | 6.22 in x 5.20 in x 6.18 in (158 mm x 132 mm x 157 mm) |
| Port | USB 2.0 |
