Overview

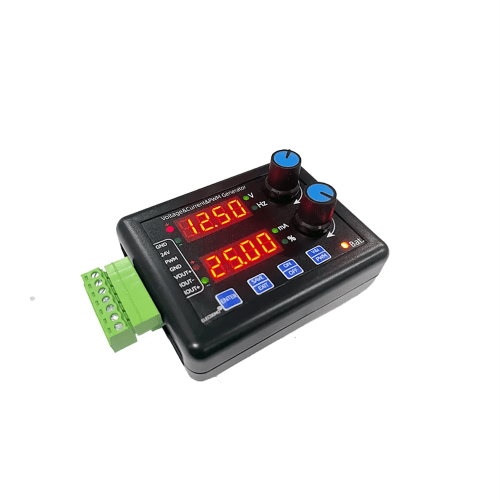

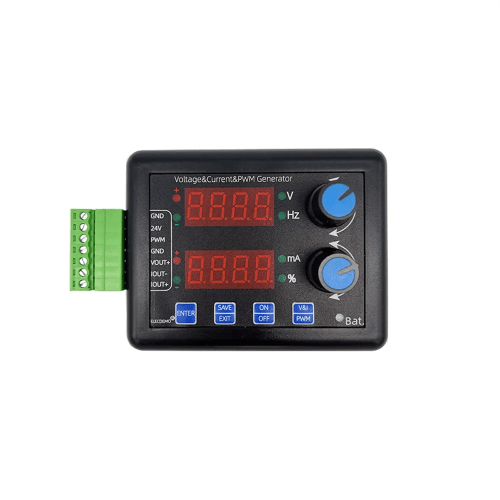

Emissions And Stack analog function generator voltage and current square wave independent adjustment, independent display, independent generation, voltage source + current source + square wave (PWM) source, three sources Adjustment method. description: voltage current/square wave frequency duty, there is an independent adjustment knob, turn clockwise to add a step output, counterclockwise to decrease a step output, press the knob, the adjustment position scrolls forward one position (the adjustment position will flashing).
Technical Specifications
| Power supply | DC12 V to 30 V or Micro USB 5 V |
| Short output | Yes |
| Power supply protection | Yes |
| Voltage range | -12.5 V to 12.5 V |
| Voltage accurate | 0.01 V |
| Voltage step | 0.01 V |
| Current range | -25 mA to 25 mA |
| Current accurate | 0.01 mA |
| Current step | 0.01 mA |
| Square wave frequency | 1 Hz to 5 Khz |
| Frequency step | 1 Hz |
| Frequency accurate | 0.2 Hz |
| Square frequency duty step | 0.1% |

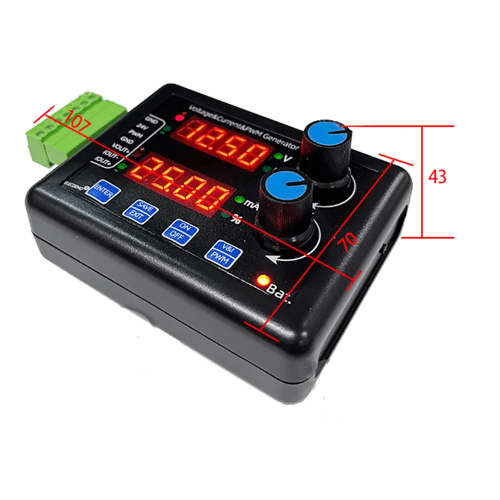

| Size | 4.21 in x 2.56 in x 1.69 in (107 mm x 70 mm x 43 mm) |
