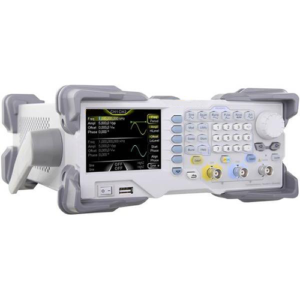

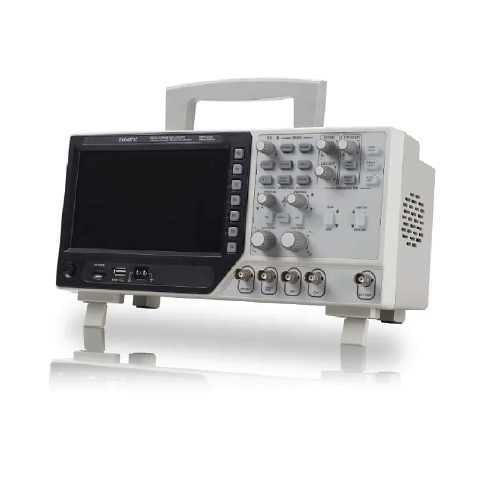

Features
- Oscilloscope: 200 MHz or 100 MHz or 70 MHz
- Bandwidth, 1 GSa or s Sample Rate
- 25 MHz Arbitrary waveform generator
- 12 bits resolution
- 200 MHz DDS
- 7 in (17.78 cm) 64 K color LCD display, Resolution 800 x 480
- 2-channel digital oscilloscope
- Arbitrary or function waveform generator
- Includes synchronizing signal and external trigger
Technical specifications
| Sample Rate | Sampling Rate Range: 1 GSa or s | |
| Equivalent Sample Rate: 25 GSa or s | ||
| Normal | Normal data only | |
| Peak Detect | High-frequency and random glith capture | |
| Average | Waveform Average, selectable 4,8,16,32,64,128 | |
| Inputs Coupling | AC, DC, GND | |
| Inpits Impendance | 1 MΩ ± 2 % 20 pF ± 3 pF | |
| Probe Attenuation | 1 X, 10 X | |
| Supported Probe Attenuation Factor | 1 X, 10 X, 100 X, 1000 X | |
| Maximum Input Voltage | CAT I and CAT II: 300 VRMS (10 ×) | |
| CAT III: 150 VRMS (1 ×); | ||
| Installation Category II: derate at 20 dB or decade above 100 kHz to 13 V peak AC at 3 MHz and above. For non-sinusoidal waveforms, peak value must be less than 450 V. Excursion above 300 V should be of less than 100 ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300 V. If these values are exceeded, damage to the oscilloscope may occur. | ||
| Sample Rate Range | 1 GS or s | |
| Waveform Interpolation | (sin x) or x | |
| Record Length | 40 K | |
| Sample Rate and | ± 50 ppm at over any ≥ 1 ms time interval) | |
| Delay Time Accuracy | ||
| Delta Time Measurement Accuracy (Full Bandwidth) |
Single to shot, Normal mode: ± (1 sample interval + 100 ppm × reading + 0.6 ns); > 16 averages: ± (1 sample interval + 100 ppm × reading + 0.4 ns); Sample interval = s or div ÷ 200 |
|
| Vertical Resolution | 8-bit resolution, all channel sampled simultaneously | |
| Position Range | 2 mV or div to 10 V or div | |
| Bandwidth | 200 MHz | |
| Rise Time at BNC( typical) | 1.8 ns | |
| Analog Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled | 2 mV or div to 20 mV or div, ±400 mV; 50 mV or div to 200 mV or div, ± 1 V | |
| 500 mV or div to 2V or div, ±40 V; 5 V or div, ±50 V | ||
| FFT | Windows: Hanning, Flattop, Rectangular, Bartlett, Blackman; | |
| 1024 sample point | ||
| Bandwidth Limit | 20 MHz | |
| Low Frequency Response (-3 db) | ≤ 10 Hz at BNC | |
| DC Gain Accuracy | ± 3% for Normal or Average acquisition mode, 5 V or div to 10 mV or div; | |
| ± 4 % for Normal or Average acquisition mode, 5 m or div to 2 mV or div | ||
| DC Measurement Accuracy, Average Acquisition Mode |
When vertical displacement is zero, and N ≥ 16: ± (3 % × reading + 0.1 div + 1 mV) only 10 mV or div or greater is selected; When vertical displacement is not zero, and N ≥ 16: ± [3 % × (reading + vertical position) + 1 % of vertical position + 0.2 div]; Add 2 mV for settings from 2 mV or div to 200 mV or div; add 50 mV for settings from 200 mV or div to 5 V or div |
|
| Volts Measurement Repeatability, Average Acquisition Mode | Delta volts between any two averages of ≥ 16 waveforms acquired under same setup and ambient conditions | |
| Trigger Types | Edge, Video, Pulse, Slope, Over time, Alternative | |
| Trigger Source | CH1, CH2, EXT, EXT or 5, AC Line | |
| Trigger Modes | Auto, Normal, Single | |
| Coupling Type | DC, AC, Noise Reject, HF Reject, LF Reject | |
| Trigger Sensitivity (Edge Trigger Type) |
DC (CH 1, CH 2): | |
| 1 div from DC to 10 MHz; 1.5 div from 10 MHz to 100 MHz; 2 div from 100 MHz to Full; | ||
| DCEXT): | ||
| 200 mV from DC to 100 MHz; 350 mV from 100 MHz to 200 MHz; | ||
| DCEXT or 5): | ||
| 1 V from DC to 100 MHz; 1.75 V from 100 MHz to 200 MHz; | ||
| AC: Attenuates signals below 10 Hz; | ||
| HF Reject: Attenuates signals above 80 kHz; | ||
| LF Reject: Same as the DC-coupled limits for frequencies above 150 kHz; attenuates signals below 150 kHz | ||
| Trigger Level Range | CH 1 or CH 2: ± 8 divisions from center of screen; | |
| EXT: ± 1.2 V; | ||
| EXT or 5: ± 6 V | ||
| Trigger Level Accuracy(typical)Accuracy is for signals having rise and fall times ≥20ns | CH 1 or CH 2: 0.2 div × volts or div within ± 4 divisions from center of screen; | |
| EXT: ± (6 % of setting + 40 mV); | ||
| EXT or 5: ± (6 % of setting + 200 mV); | ||
| Set Level to 50 % (typical) | Operates with input signals ≥ 50 Hz | |
| Video Trigger Type | CH 1, CH 2: Peak-to-peak amplitude of 2 divisions; | |
| EXT: 400 mV; | ||
| EXT or 5: 2 V | ||
| Signal Formats and Field Rates, Video Trigger Type | Supports NTSC, PAL and SECAM broadcast systems for any field or any line | |
| Holdoff Range | 100 ns to 10 s | |
| Pulse Width Trigger Mode | Trigger when (<, >, = , or ≠); Positive pulse or Negative pulse | |
| Pulse Width Trigger Point | Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width |
|
| Pulse Width Range | 20 ns to 10 s | |
| Slope Trigger Mode | Trigger when (<, >, =, or ≠); Positive slope or Negative slope | |
| Slope Trigger Point | Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. | |
| Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. | ||
| Less than: The oscilloscope triggers when the waveform slope is less than the set slope. | ||
| Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope. | ||
| Time Range | 20 ns to 10 s | |
| Over Time Mode | Rising edge or Falling edge | |
| Time Range | 20 ns to 10 s | |
| Trigger on CH1 | Internal Trigger: Edge, Pulse Width, Video, Slope | |
| Trigger on CH2 | Internal Trigger: Edge, Pulse Width, Video, Slope | |
| Readout Resolution | 6 digits | |
| Accuracy (typical) | ± 30 ppm (including all frequency reference errors and ± 1 count errors) | |
| Frequency Range | AC coupled, from 4 Hz minimum to rated bandwidth | |
| Signal Source | Pulse Width or Edge Trigger modes: all available trigger sources | |
| The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. | ||
| Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1 s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. | ||
| Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. | ||
| Video Trigger mode: The Frequency Counter does not work. | ||
| Cursor Measurement | Voltage difference between cursors: V | |
| Time difference between cursors: T | ||
| Reciprocal of T in Hertz (1 or Δ T) | ||
| Auto Measuerment | Frequency, Period, Mean, Pk to Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, | |
| +Pulse Width, -Pulse Width, Delay 1 to 2 Rise, Delay 1 to 2 Fall, +Duty, -Duty, Vbase, Vtop, Vmid, | ||
| Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, | ||
| FRF, FFR, LRR, LRF, LFR, LFF | ||
| Waveform Impedance | DC to 25 MHz | |
| Sample Rate | 200 MHz DDS | |
| Output Waveform | Arbitrary wave or square wave or sine wave or triangle wave or trapezoidal wave or pulse wave or DC | |
| Frequency Resolution | 0.1 % | |
| Waveform Depth | 4 KSa | |
| Vertical Resolution | 12 bit | |
| Frequency Stability | < 30 ppm | |
| Waveform Range | ± 3.5 V Max | |
| Output Impedance | 50 | |
| Output Current | 50 mA Ipeak = 100 mA | |
| System BW | 25 M | |
| Harmonic Distortion | -50 dBc 1 KHz -40 dBc 10 KHz | |
| Display Type | 7 in (17.78 cm) 64 K color TFT (diagonal liquid crystal) | |
| Display Resolution | 800 horizontal by 480 vertical pixels | |
| Display Contrast | Adjustable (16 gears) with the progress bar | |
| Output Voltage ( typical) | About 5 Vpp into ≥ 1 MΩ load | |
| Frequency(typical) | 1 kHz | |
| Supply Voltage | 100 to 120 VACRMS (± 10 %), 45 Hz to 440 Hz, CAt II | |
| 120 to 240 VACRMS (± 10 %), 45 Hz to 66 Hz, CATII | ||
| Power Consumption | < 30 W | |
| Fuse | 2 A, T rating, 250 V | |
| Temperature | Operating: 32 °F to 122 °F (0 °C to 50 °C); | |
| Nonoperating: -40 °F to 159.8 °F (-40 °C to +71 °C) | ||
| Cooling Method | Convection | |
| Humidity | + 104 °F or below (+ 40 °C or below): ≤ 90 % relative humidity; | |
| 106 °F to 122 °F (+ 41 °C to 50 °C): ≤ 60 % relative humidity | ||
| Altitude | Operating: Below 1.86 mi (3,000 m) | |
| Nonoperating: Below 9.32 mi (15,000 m) | ||
| Size | 15.15 in x 7.87 in x 9.64 in (385 mm x 200 mm x 245 mm) | |
| Weight | 7.71 lb. (3.5 kg) |
