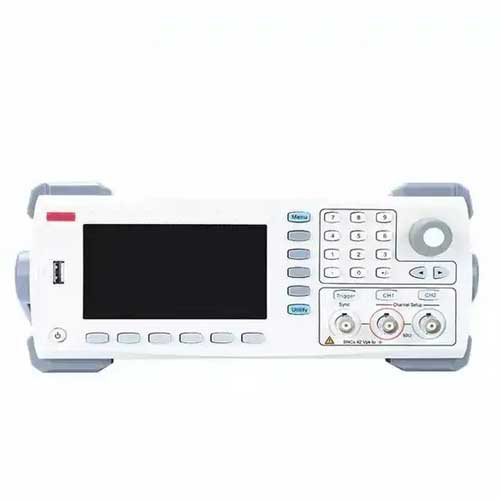

Overview
Emissions And Stack Arbitrary Waveform Generator is a Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems, semiconductor component testing etc.
Features
- 1 μHz full band resolution
- 5 MHz to 30 MHz pulse waveform
- Adjustable rise or fall time
- 14-bit or 16-bit vertical resolution
- Two equivalent performance channels
- Max arbitrary waveform length of 8 K or 16 M points; 48 or 161
- non-volatile waveforms storage
Technical specification
| Max Frequency | 80 MHz |
| Channels | 2 |
| Sampling Rate | 320 MS or s |
| Waveforms | sine, square, ramp, pulse, noise, DC, arbitrary, harmonic |
| Working Modes | Output on or off, continuous, modulation, sweep, burst |
| Modulations | AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM |
| Length | 8 pts to 16 Mpts |
| Vertical Resolution | 16 bits (symbol included) |
| Sine | 1 μHz to 80 MHz |
| Square | 1 μHz to 25 MHz |
| Pulse | 1 μHz to 25 MHz |
| Ramp | 1 μHz to 4 MHz |
| Harmonic | 1 μHz to 40 MHz |
| Arbitrary | 1 μHz to 20 MHz |
| Noise | 80 MHz (-3 dB) |
| Resolution | 1 μHz |
| Accuracy | ±0.5 ppm 77 °F (25 ℃) First-year aging rate: 1 ppm Temperature coefficient: ±0.5 ppm or 33.8 °F (1 ℃) |
| Temperature Coefficient | <2 ppm or 33.8 °F (1℃) |

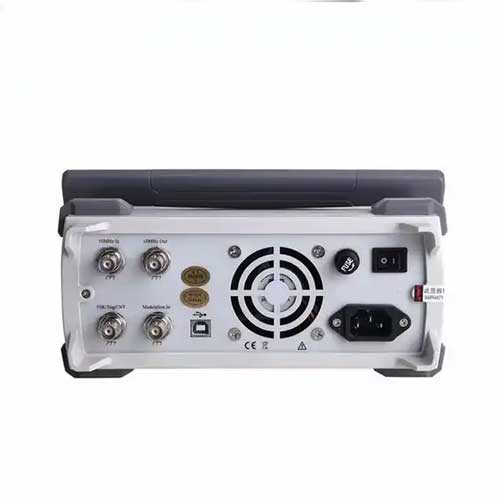

| Interfaces | USB Host, USB Device, 10 MHz clock source input or output |
| Power | 100 V to 240 V ACrms, 50 Hz or 60 Hz |
| Display | 4.3 in (10.9 cm) TFT LCD, WVGA (480 x 272) |
| Product Net Weight | 7.05 lb (3.2 kg) |
